10BDL3051T - Media Player Setup

10BDL3051T - Media Player Setup


Put the content into the USB in the following directories:

philips/video/ -> video

philips/photo/ -> photo

philips/music/ -> music

philips/pdf/ -> pdf



Get into The Media Player

1.      Put the USB stick in the monitor

2.      open the admin menu:  press in a sequence the physical rounded button (MENU) on the back of the display and the physical volume down button (Volume↓)also on the back of the display

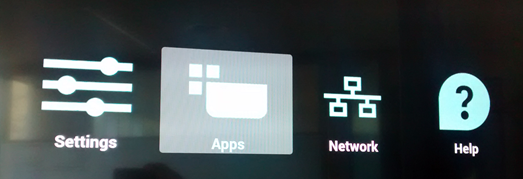

3.      Click Apps

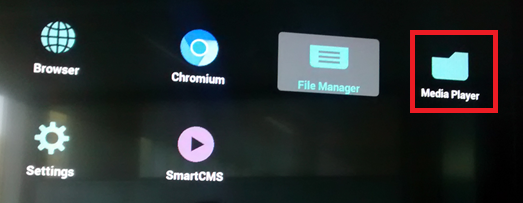

4.      Click Media Player






Doing basic settings in Media Player

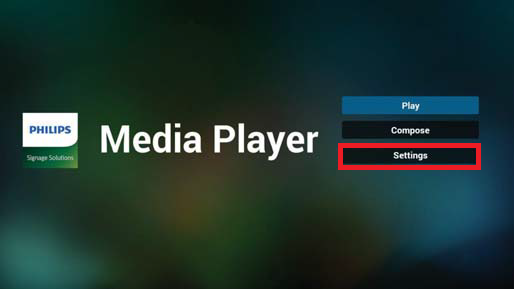

1.      Click Settings

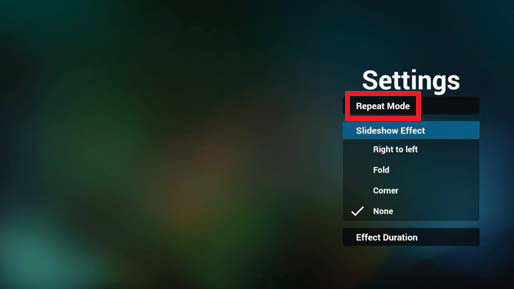

2.      Click Repeat Mode


3.      Choose- Repeat All



4.      Press  back button






Creating Playlist in Media Player

1.      Media Player-> Compose

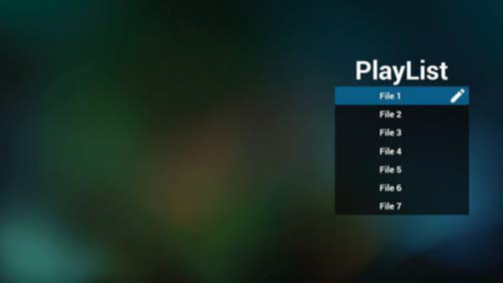

2.      PlayList = File 1

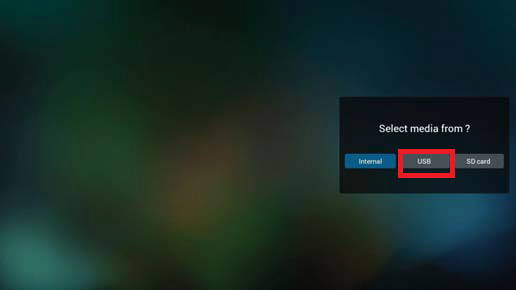

3.      Select Media From? USB

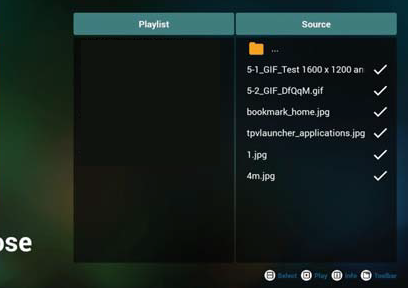

4.      Navigate through the directory structure Select content by clicking  on the one you'd like to be included into the playlist

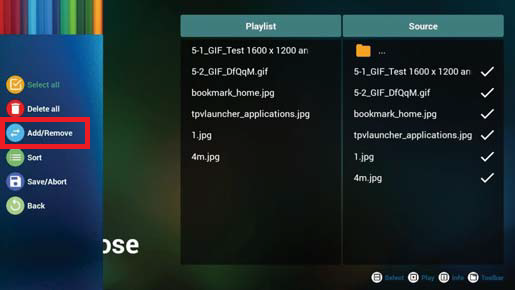

5.      Once done click the Option Key ()



6.      Add (to add to the list)

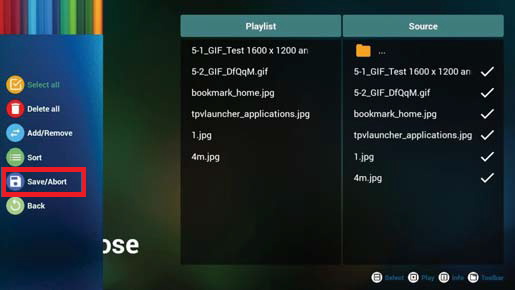

7.      Save (to save the list)

8.      Save or Abort? (Save)



9.      Add background music to slideshow?  No

10.  Overwrite? Yes

11.  Hit the back button until the media player is closed



How to set the default input to be the media player, playlist 1.

1.      Go back to the admin menu by pressing (MENU) and (Volume↓):

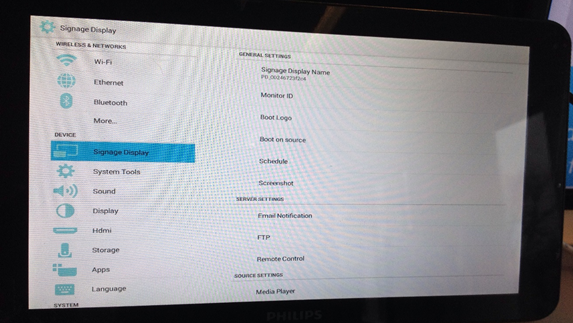

2.      Select Signage Display

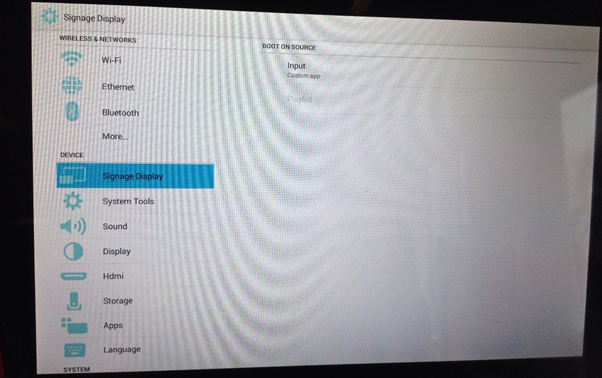

3.      Select Boot on source

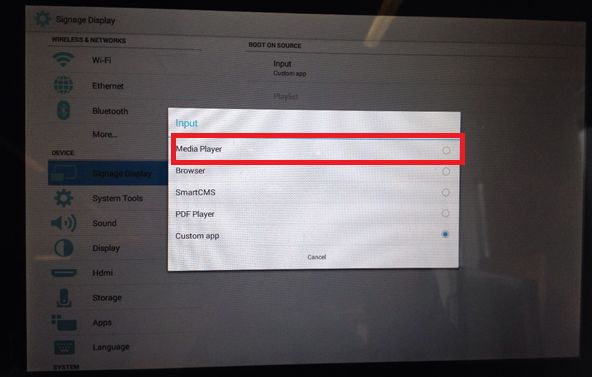

4.      Select Input





5.      Select on Input from the list Select Media Player App



6.      Set playlist = 1


DONE..

You can press back until you exit.
