22AV1601A - Easy RC

22AV1601A - Easy RC

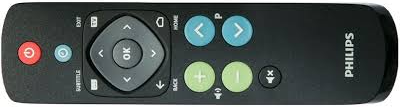

22AV1601A Picture




Changing RC5/RC6 Mode


Press 1st button first and hold, press 2nd button shortly after (within 0.5 seconds) and hold, release after 8 seconds to activate

RC6 (Default)            Mute + Channel Up
RC5                           Home + Volume Up (Note: the RC5 IR codes are not compatible with xxHFL3011 set on IR RC5)

Changing Multi-RC modes


Press 1st button first and hold, press 2nd button shortly after (within 0.5 seconds) and hold, release after 8 seconds to activate

In RC6 Mode
Blue (Default)            Home + Volume Down
Yellow                        Home + Channel Down
Red                            Back + Volume Down
Green                        Back + Channel Down
00                              Home + Clock
01                               Home + Subtitle
02                              Home + Arrow Up
03                              Home + TV
04                              Home + Arrow Left
05                              Home + OK
06                              Home + Arrow Right
07                              Home + Back
08                              Home + Arrow Down
09                              Home + Mute

In RC5 Mode
Blue (Default)            Home + Volume Down
Yellow                        Home + Channel Down
Red                            Back + Volume Down
Green                        Back + Channel Down
