22AV2005D - HFL5214 Remote

22AV2005D - HFL5214 Remote

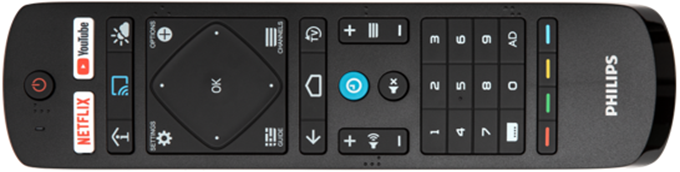

22AV2005D Picture

selectedImg


Finding out current Multi-RC modes on TV and Remote

On HFL5011 - press OK for 5 seconds
On HFL5214,HFL6214, HFL5114, HFL6114 - press mute for 5 seconds

Changing Remote Multi-RC modes

To change the Multi RC mode on the remote control, you need to:
- press the first button then hold
- then press and hold the second button
- hold both buttons together for about 10 seconds.
- release
your remote multi-rc mode should have changed now.

Here are the different modes and the button combinations
Remote Mode
Buttons Combination
Blue (default)
“Home” and “Blue” (rectangular button at bottom right corner of remote)
Yellow
“Home” and “Yellow”
Red
“Home” and “Red”
Green
“Home” and “Green”
0
“Home” and “0”
1
“Home” and “1”
2
“Home” and “2”
3
“Home” and “3”
4
“Home” and “4”
5
“Home” and “5”
6
“Home” and “6”
7
“Home” and “7”
8
“Home” and “8”
9
“Home” and “9”

Open Up Professional Menu

Mute-Left-Right-Up-Down OK

Open Up CSM Menu

Mute Right Left Down Up OK
