22AV2226A - HFL6214 Remote

22AV2226A - HFL6214 Remote

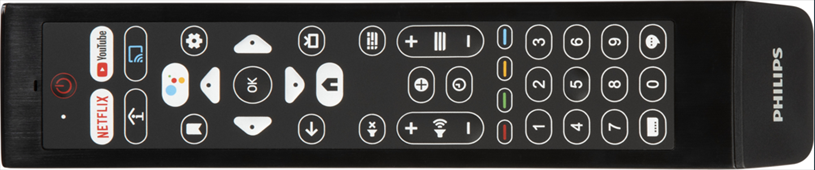

22AV1905A Picture


How to change the remote battery

2x AA battery



Finding out current Multi-RC modes on TV and Remote

On HFL5014, HFL6014, HFL5114, HFL6114, HFL5214, HFL6214 - press mute for 5 seconds

Changing Remote Multi-RC modes

Below you can find a table how to match the TV settings and the settings as they can be used in the guest RC (you need to press those buttons for 8 seconds):

Remote Mode
Buttons Combination
Blue (default)
“Home” and “Blue” (rectangular button at bottom right corner of remote)
Yellow
“Home” and “Yellow”
Red
“Home” and “Red”
Green
“Home” and “Green”
0
“Home” and “Clock”
1
“Home” and “Channels”
2
“Home” and “Arrow up”
3
“Home” and “TV”
4
“Home” and “Arrow left”
5
“Home” and “OK”
6
“Home” and “Arrow right”
7
“Home” and “Back”
8
“Home” and “Arrow down”
9
“Home” and “Mute”

Open Up Professional Menu

Mute-Left-Right-Up-Down OK

Open Up CSM Menu

Mute Right Left Down Up OK
