BDL - 10BDL4551T - Software Update
Download the latest Software (FB01.16):
In the root directory of a USB disk place the update.zip files.
How to upgrade the Android Module Software:
1. Press in sequence the rounded button and the volume down button behind the display
2. Password is 1234

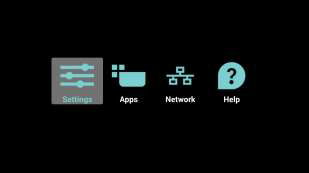

3. Click “Settings”.
4. Plug-in the USB device.
5. Choose “Signage display” -> “System updates”
6. Choose the update.zip file from the list and press ok.
7. The monitor will reboot to perform the update and reboot again when the operation is finished.
Perform now a factory reset >
1. Select “settings”
2. Choose “Signage display” -> “System tools”
3. Select “factory reset” and execute by pressing OK
4. Factory data reset will appear on the screen for a few seconds.
5. The monitor will reboot
6. Do an AC repower
