BDL - 10BDL4551T - Switching LED Strip to different colour

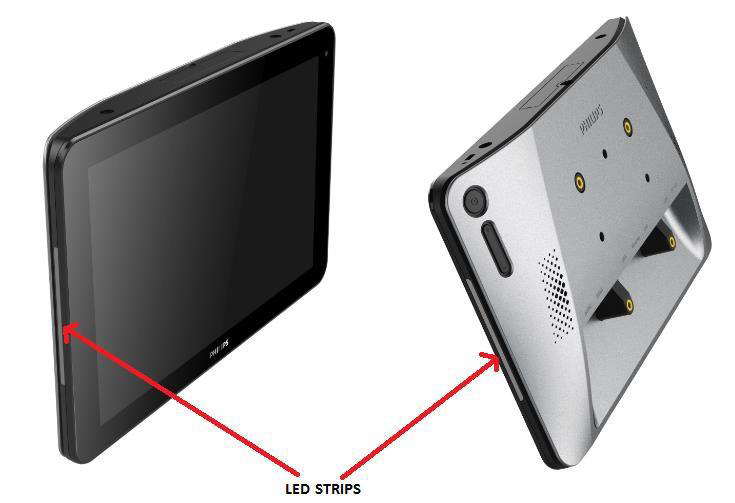

Both LED strips of the 10BDL4551T can be switched ON or OFF and set to a particular color.
By default, both LED strips are OFF at all times. The left and right LED stripes are controlled at the same time, it is not possible to control only the left or right LED strip.
The commands can be send to the monitor via LAN , WiFi or via an android apk on localhost:5000.
The default port is 5000 and can be changed in the admin menu.
OFF: 09 01 00 F3 00 FF 00 00 04
RED 09 01 00 F3 01 FF 00 00 05
BLUE 09 01 00 F3 01 00 00 FF 05
YELLOW 09 01 00 F3 01 FF f2 00 F7
For more color option, please read section 12 of this document
