BDL - 24BDL4151T - Scaler Software Update

BDL - 24BDL4151T - Scaler Software Update

Download the latest scaler.bin Software:

In the root directory of a USB disk place the .bin files.

How to upgrade the Scaler Software:
1. Press in sequence the rounded button and the volume down button behind the display

2. Password is 1234
3. Plug in the USB Drive

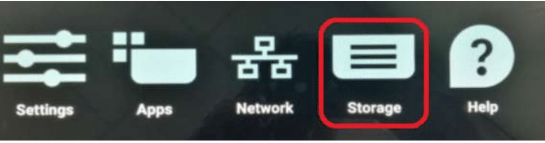

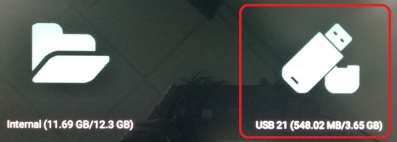

4. Click Storage.

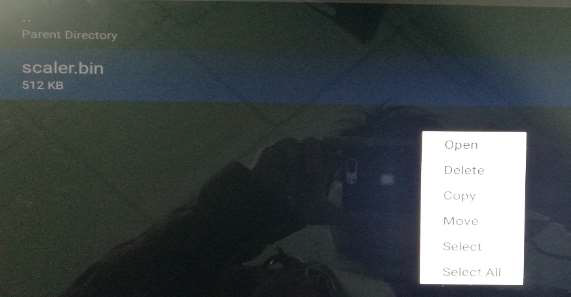

Select the bin file and select copy

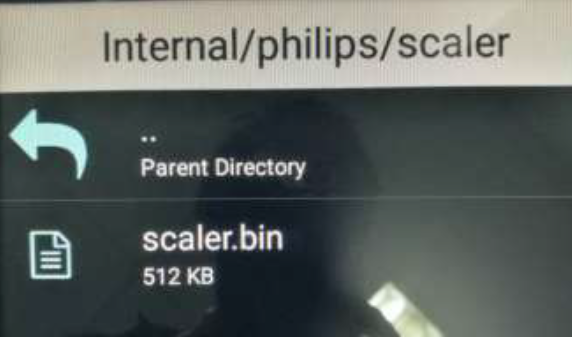

Select internal ( where to copy the bin file)

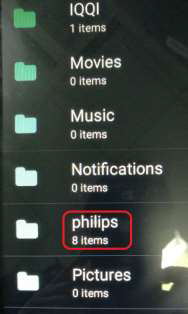

Select Philips




Choose settings –>Signage Display->Scaler FW updates->Start update->ok, firmware upgrade will now start, when
upgrade FW is finished (about 15 minutes), the monitor will reboot itself.
