BDL3117P - SDM-L Installation and Basic Config

BDL3117P - SDM-L Installation and Basic Config

Preparing The SDM-L

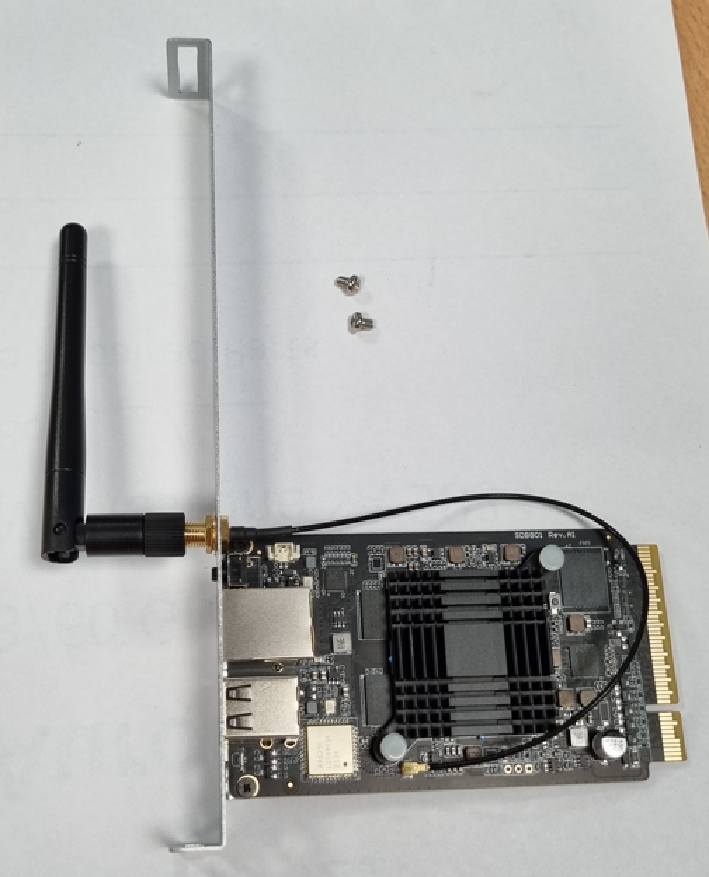

Setup SDM-L (see below)

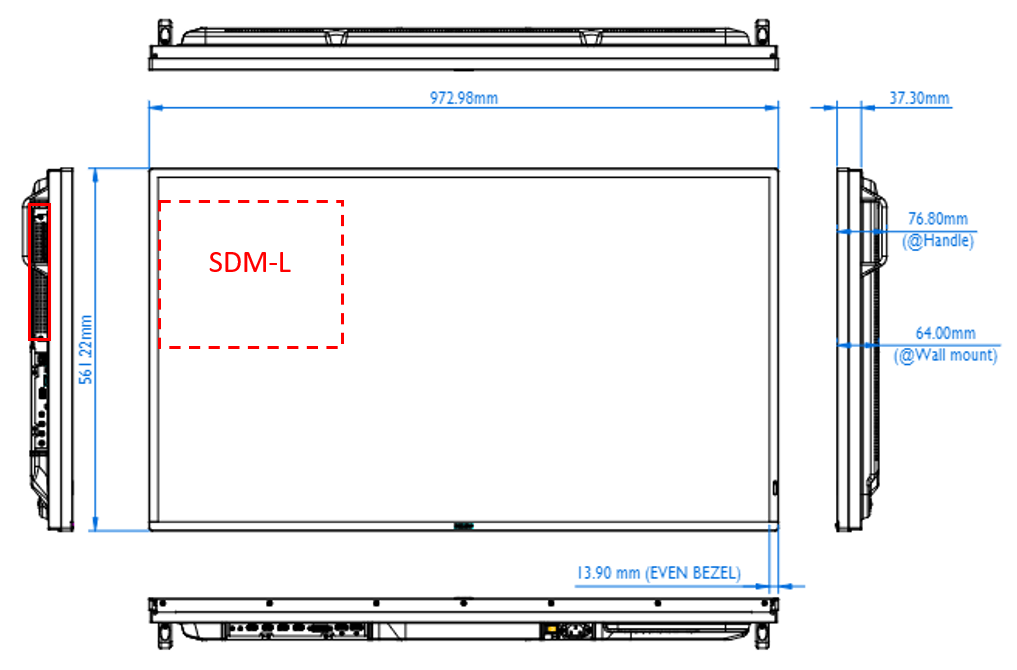

Install the SDM-L in the SDM-L slot (see below)



    Configure the xxBDL3117P screen source to SDM-L upon start up


    1. Set Source to SDM
      1. Menu (press the HOME button on the remote control) ⇾
        1. Configuration 1 ⇾ Switch on State = Force on
        2. Configuration 1 ⇾ Boot on Source = SDM
        3. Configuration 2 ⇾ HDMI = EDID 1.4
        4. Option ⇾ Power save = Mode 1
        5. Option ⇾ SDM Setting = Auto
        6. Option ⇾ Date and Time ⇾ manually set the date/time
                              Daylight Saving is only observed in NSW, VIC, TAS, ACT, SA
                              To configure it
                              Daylight saving start date: 1st Sunday of Oct
                              Daylight saving stop date: 1st Sunday of Apr
                              Correction Time: 1.0
                              Daylight Saving Correction: On (Only for NSW, VIC, TAS, ACT, SA)

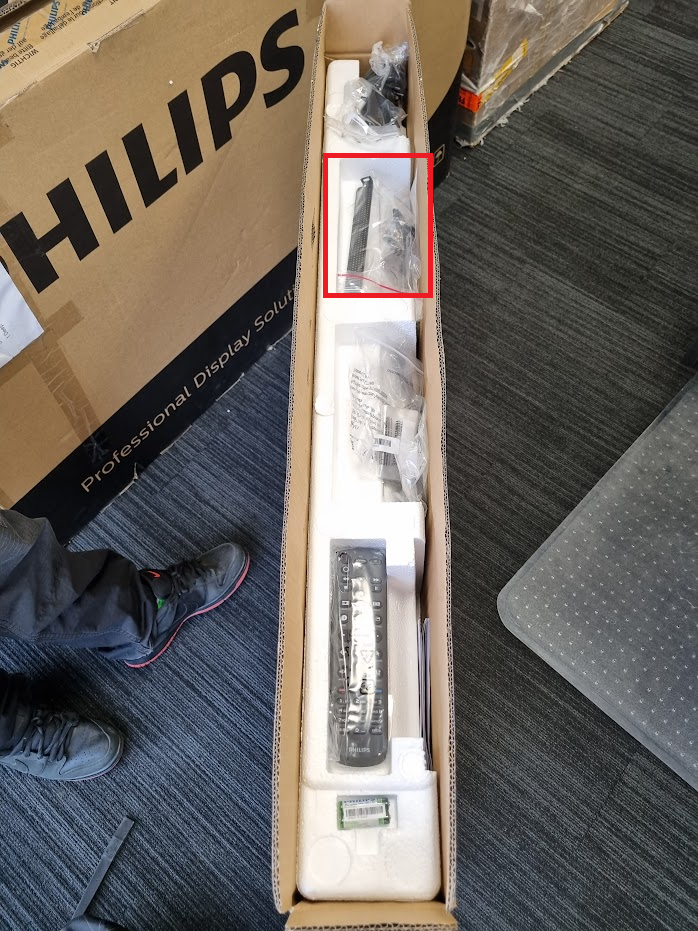

      Put The Cover And Non Used Screw Inside the plastic bag and put it into the screen box as follow




      Office Use only #14327-2024
