BDL3650Q Setting Up Wifi

BDL3650Q Setting Up Wifi

BDL3650Q can be Wifi Enabled using CRD22 (additional purchase)

For 43BDL3650Q, 50BDL3650Q, 55BDL3650Q, 65BDL3650Q, 75BDL3650Q, 86BDL3650Q, 98BDL3650Q, the CRD22 can be inserted into a slot in the screen. (see picture below)
This slot doesn't exist in the 32BDL3650Q.  To use the CRD22, you need to use a USB Extender and connect the CRD22 via the USB extender.

To Configure Wifi (when the USB Wifi Dongle is inserted into the Screen):
Press Home 1888 to go into Android menu
If password is requested to go into android menu, the default is 1234
Navigate to Network -> Wifi and setup accordingly

For Hidden Wifi,
Select security type first
Then type in Password
They key in the SSID
Otherwise the Password field will be greyed out.

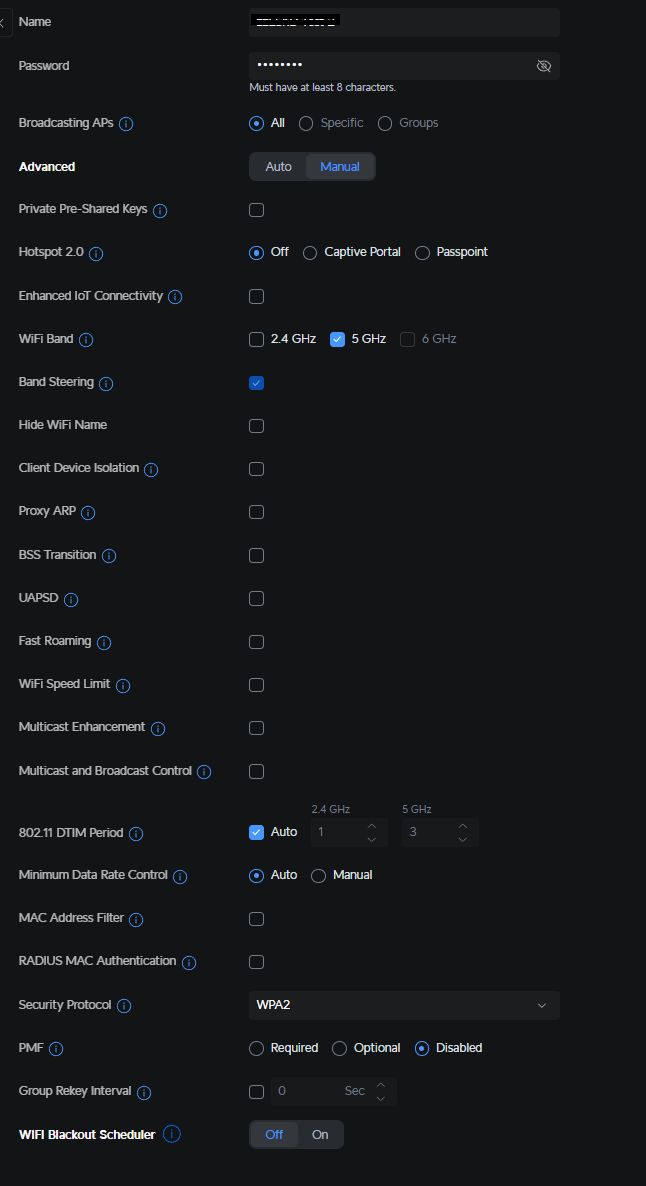

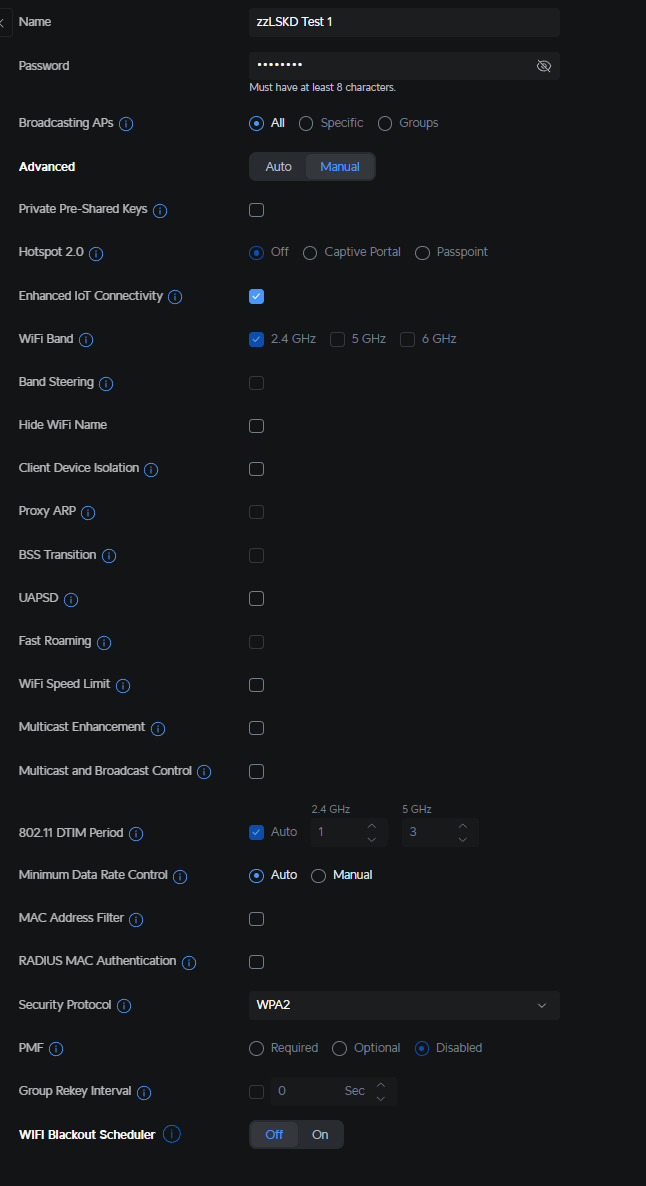

WPA2 Manual Setup
(Office use: E202411211601)
