Configuring FS-AP-01 Player for Aurora 84" Portrait LED Screen (LCG192025HB/LCG192025HBi)

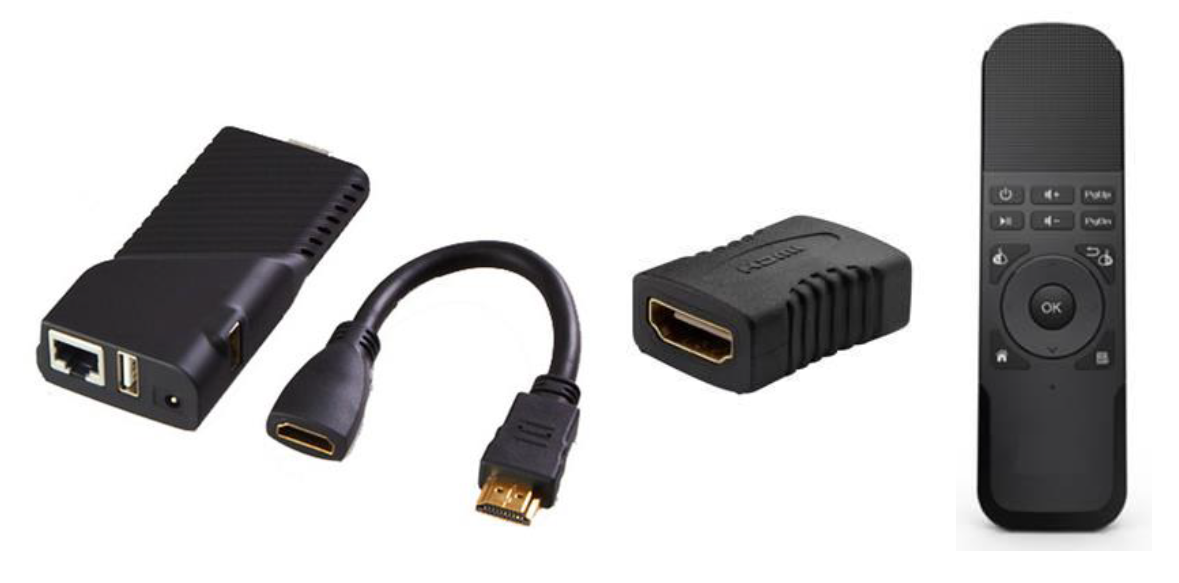

Tools required:

Normal 1080p monitor, with female DVI interface

Female HDMI to male DVI cable

USB Keyboard and Mouse Or the Player (FS-AP-01) remote control

Internet connection

- Either via LAN - require ethernet cable

- Or via Wifi

To connect player to the screen, you need Female HDMI to male DVI cable

Setting up

Connect the FS-AP-01 to a normal 1080p monitor

Connect the FS-AP-01 to a USB Keyboard and Mouse

Press OK to bring the up the Fusion Menu

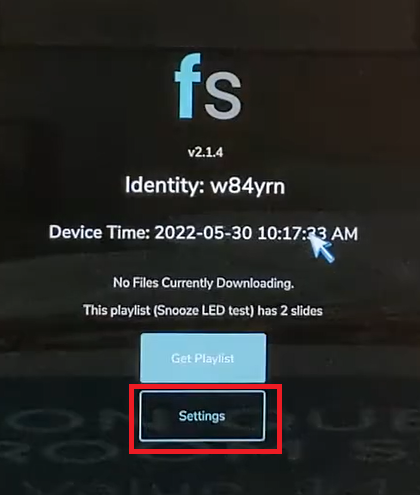

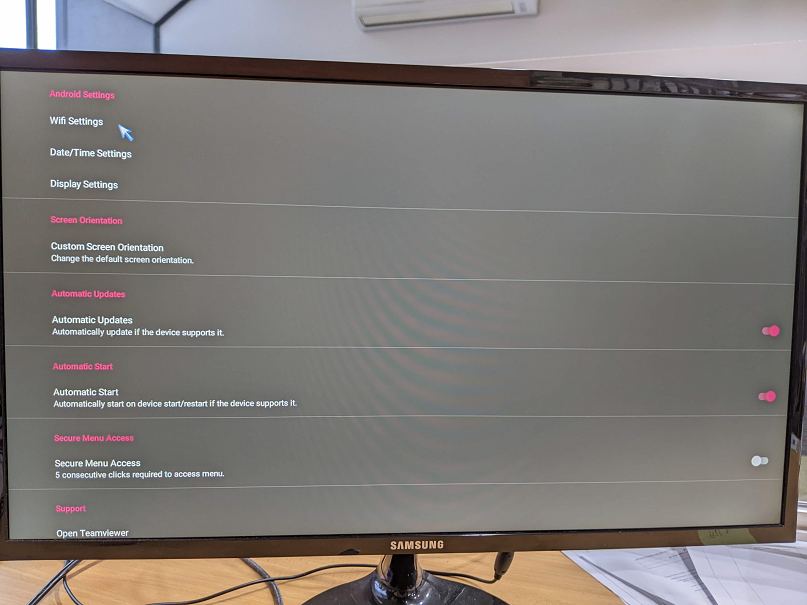

Click Settings

Click Wifi Settings

      Configure wifi

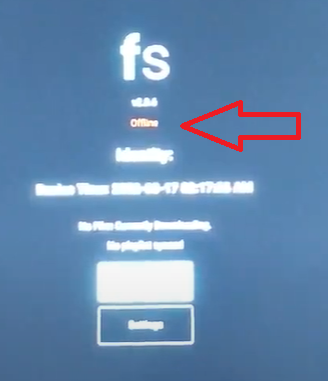

      If you can't get a connection (Fusion says offline), please try to connect the player via your mobile phone wifi hotspot.

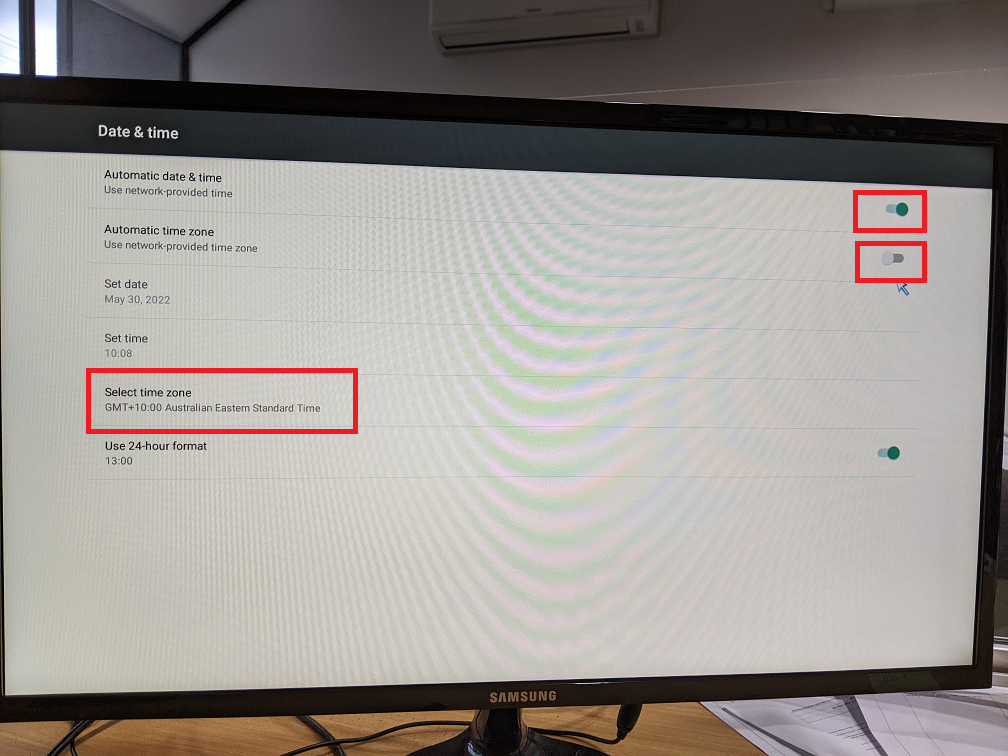

Click Date/Time Settings

      Automatic date & time = Enable

      Automatic time zone = Disable

      Select time zone = as per your time zone

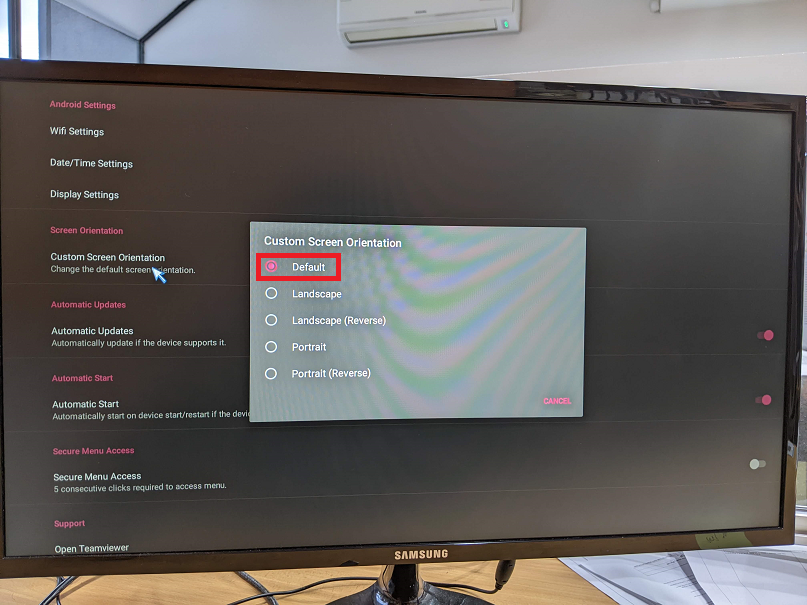

Click Custom Screen Orientation

Make sure it is set to Default

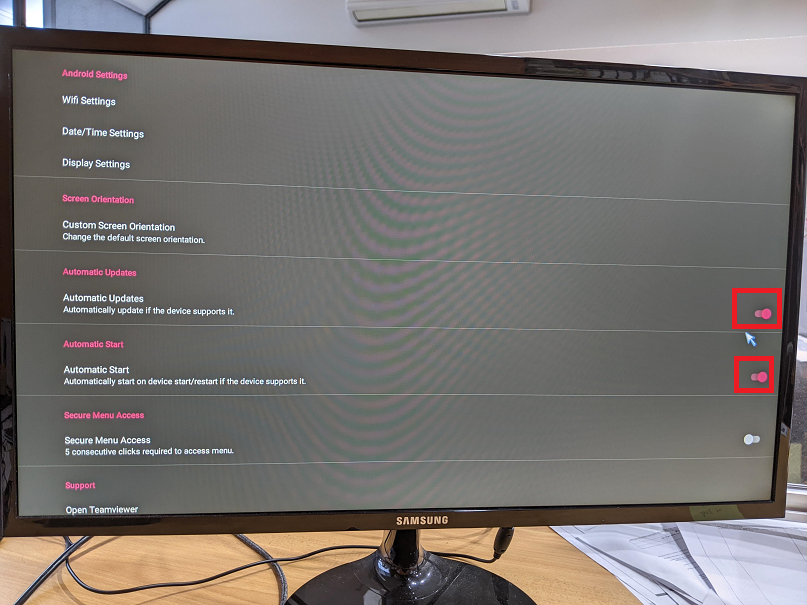

Ensure Automatic updates is Enabled

Ensure Automatic start is Enabled

Advanced (Screen Size)

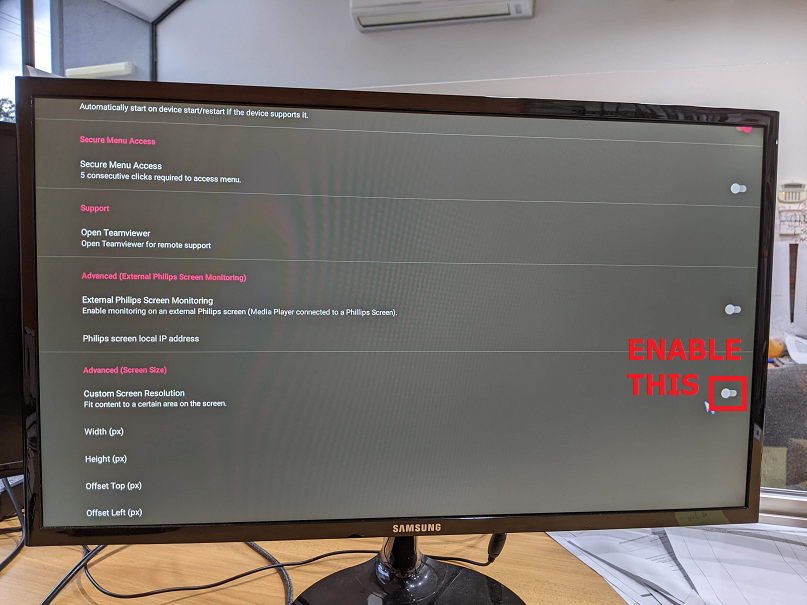

Set Custom Screen Resolution to Enable

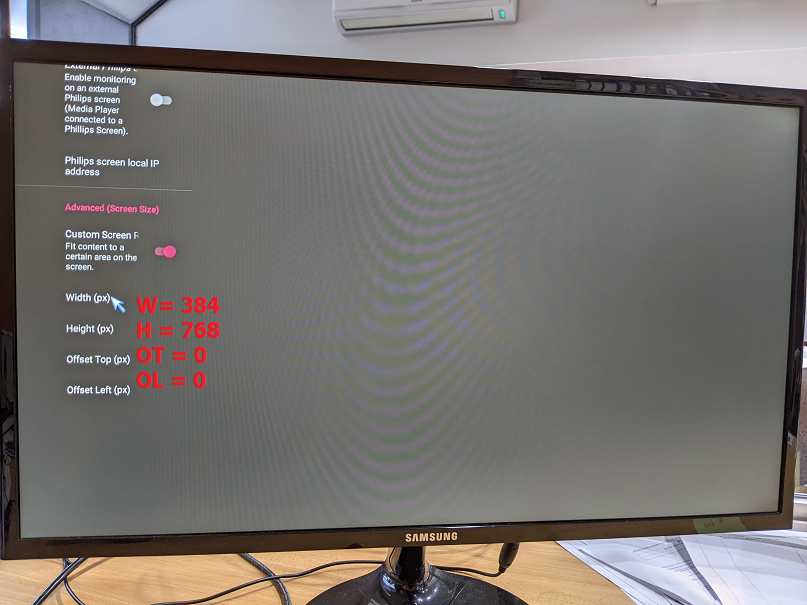

Then configure Width, Height, Offset top and Offset Left as follow

Now you can connect the screen to the Aurora 84" Portrait LED Screen (LCG192025HB/LCG192025HBi)

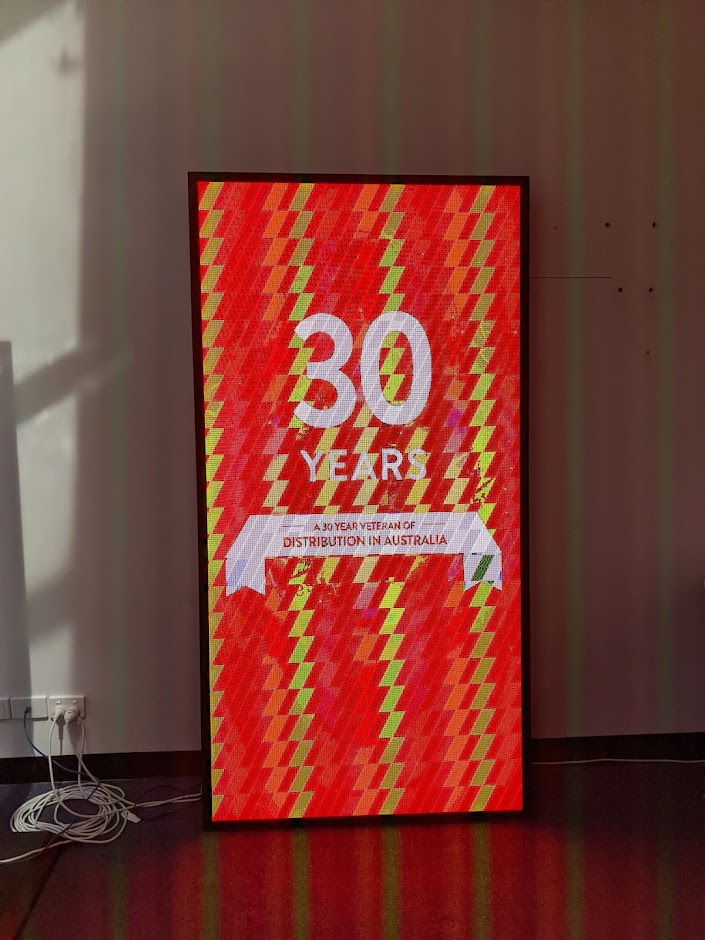

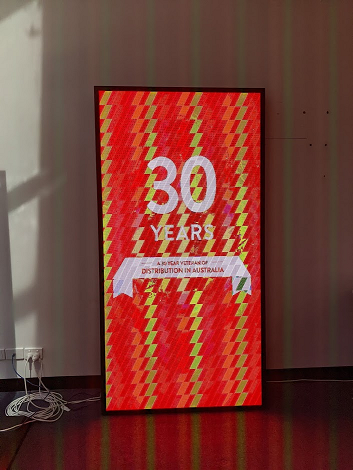

Image should look flush on the screen

Issue: Why is there a black area above and below the artwork?

The LED Screen size is 384x768 pixels (aspect ratio 1:2)

Normally designers would design a portrait artwork as 1080x1920 (portrait 1080p) (aspect ratio 9:16)

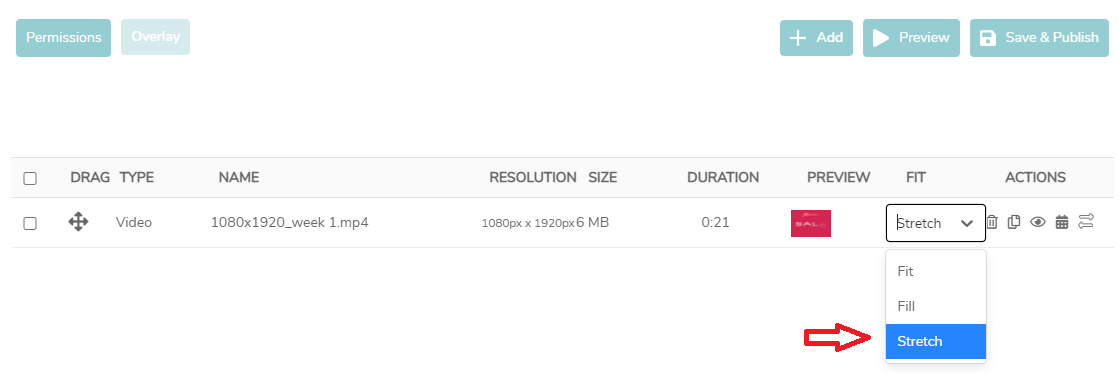

By default, a playlist in Fusion is set to Fit, in order for a 9:16 artwork to occupy an entire 1:2 aspect ratio space, the playlist’s Fit need to be set to “Stretch”

Please kindly do so when creating future playlist, otherwise if the Fit is left on default “Fit” setting, the screen would have a black space above and below the artwork.

It’s worth noting that setting the Fit to “Stretch” doesn’t alter the playlist behaviour on a 1080p screen in portrait.. So this shouldn’t be a concern.

Video of Configuring FS-AP-01 Player for Aurora 84" Portrait LED Screen
