Go through the 10BDL3051T initiation steps, including setting up the network.

Connect to a network with open access to the internet
(REQUIRED FOR FUSION SIGNAGE TO WORK)

Enter Admin Menu (press Menu and Vol- button together)

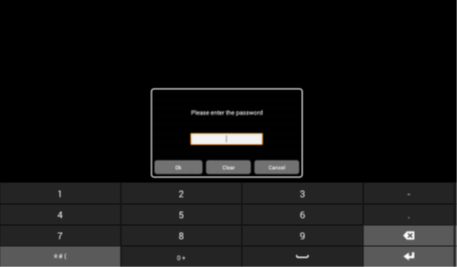

Key in password: 1234 (default)

Select “Network”

Select your chosen interface (Wi-Fi or Ethernet)

Select “Enable”

If Wi-Fi, select your network SSID from available list, enter password, and select Connect (use List/Adjust to move cursor between buttons on popup box)

Press “Back” on the remote control (RC) several times if you wish to exit the Android menu completely.

Prepare USB for Fusion Signage APK installation

Login to the Fusion Signage portal using your provided credentials and browse to:

Settings -> Download APK

(Or download app directly from here)

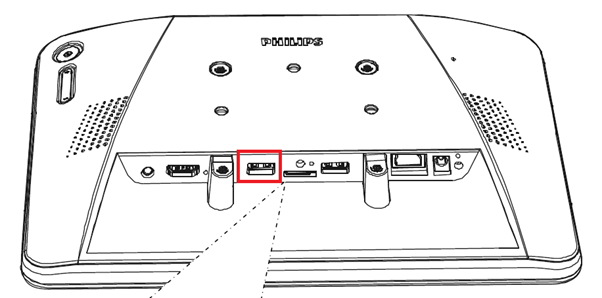

Copy the .apk file to the root directory of the USB Drive, insert USB drive to the USB port on the device:



Install Fusion Signage app

Enter Admin Menu (press Menu and Vol- button together)

Key in password: 1234 (default)

Select “Apps”

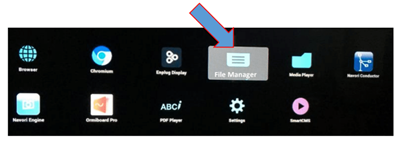

Select “File Manager”

Select “mnt” -> Open

Select “usb storage” -> Open

When installation is complete, select “Done”

Press “Back” on the RC several times if you wish to exit the Android menu completely.

Assign Fusion Signage to the “custom” input source

Enter Admin Menu (press Menu and Vol- button together)

Key in password: 1234 (default)

Select “Settings”

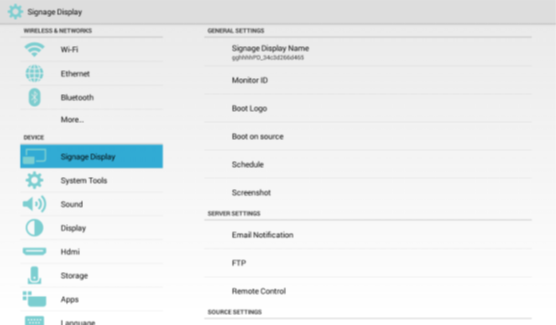

Select “Signage Display”

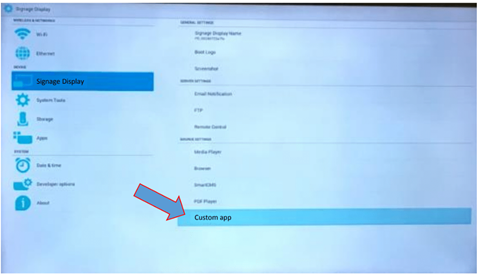

Select “Custom App”

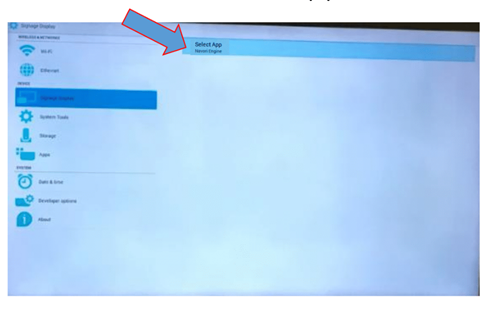

Select “Select App”

Select Fusion Signage from the popup list of apps, the select “Save”

Press “Back” on the RC several times if you wish to exit the Android menu completely.

Set Date & Time

(REQUIRED IF USING SCHEDULING)

Enter Admin Menu (press Menu and Vol- button together)

Key in password: 1234 (default)

Select “Settings”

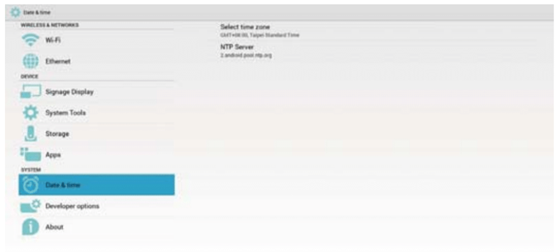

Select Date & Time

Press: Right NAV and select “Select time zone”

Select your local time zone

Press “Back” on the RC several times if you wish to exit the Android menu completely.

Set screen to boot to the Fusion Signage app when turned on

Enter Admin Menu (press Menu and Vol- button together)

Key in password: 1234 (default)

Select “Settings”

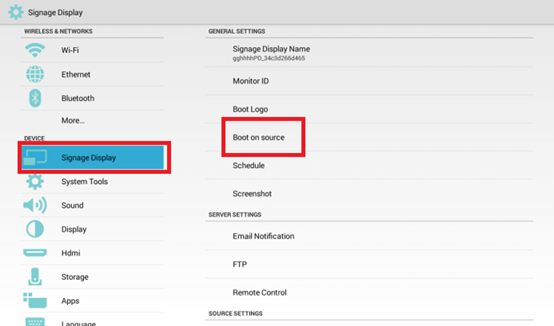

Select Signage Display -> Boot On source

Select Input->Custom App

Power OFF/ON screen to auto load app

Once all the steps above have been actioned, power off/on the screen by disconnecting the power and reconnecting it back to the unit to confirm that the installation is successful and the app is automatically loaded.

The app should load and show an identifier, ready for pairing with your Fusion Signage portal.

[OPTIONAL] Schedule screen to turn on and off automatically

Enter Admin Menu (press Menu and Vol- button together)

Key in password: 1234 (default)

Select “Settings”

Signage Display->Schedule

Configure power scheduling accordingly as per screen user manual

(Ensure the screen’s date and time settings are correct as per instructions above)
