HFL5x14 HFL6x14 NVM Reset Procedure
Introduction
NVM (Non Volatile Memory) Reset Procedure overwrite the NVM memory area with a model specific NVM image that is usually loaded during the TV's assembly process.
The NVM image used is dictated by the LCD component (the front part of the TV that lit up and produces picture) used in the TV.
That's why different Philips HFL TV model WILL require different NVM files
Even 2 HFL TVs of the same model, with different serial number range may use different LCD types, and thus require different NVM files
NVM Reset Procedure on xxHFL4014 will wipe out all configuration from your TV, including TV channels and other settings.
After this procedure, you need to reinstall the TV and start from scratch.
Prepare the USB Drive:
Format the USB Drive with the following settings:
File system=FAT32
Allocation unit size = 64 kilobyte

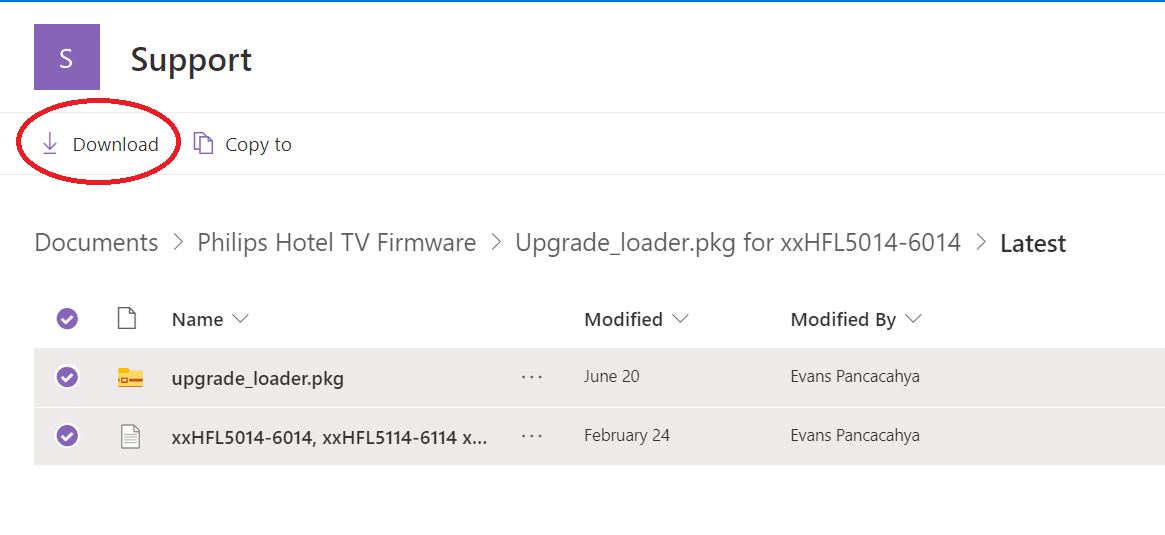

Download upgrade_loader.pkg for xxHFL5014/6014/5114/6114/5214 into USB Drive as shown in the picture.
Download NVM.BIN file (Model dependent) into USB Drive.

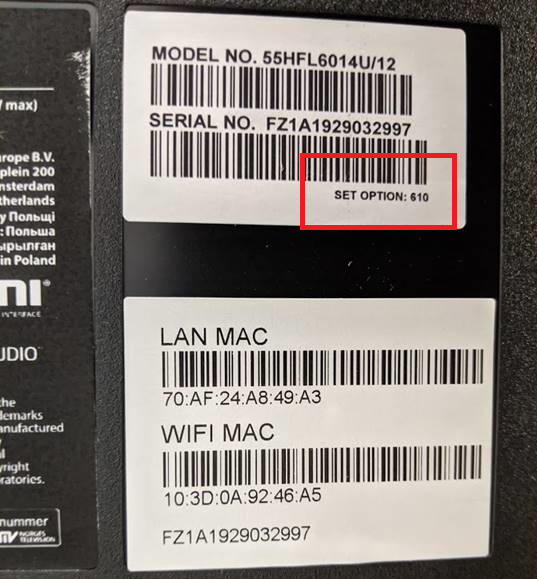

Choose the correct NVM.BIN file based on the TV's Set Option Value
xxHFL5014
|
Model |
Set Option
|
Download Link |
| 19HFL5014 |
601
|

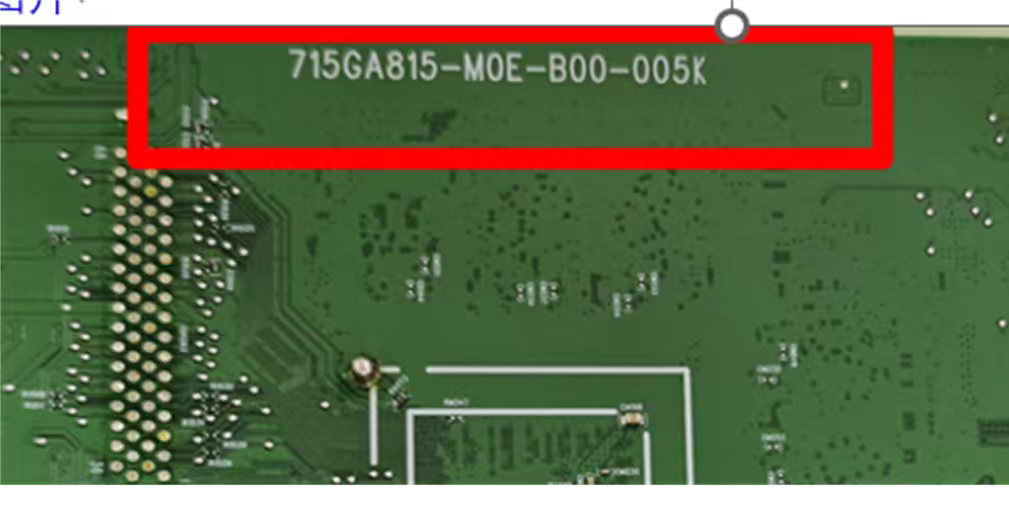

[Download] If being replaced with newest main board and audio doesn't work use this NVM [Download] (19HFL5214U - 761) |
|
32HFL5014 |
602
|
|
|
43HFL5014 |
603
|
|
|
50HFL5014 |
604
|
|
|
55HFL5014 |
n/a | |
|
65HFL5014 |
n/a |
xxHFL6014
| Model |
Set Option
|
Download Link |
| 43HFL6014 |
608
|
[Download] |
| 50HFL6014 |
609
|
[Download] |
| 55HFL6014 |
610
|
[Download] |
| 65HFL6014 |
611
|
[Download] |
xxHFL5114/xxHFL5114U
| Model |
Set Option/Panel Id | Download Link |
| 19HFL5114 |
---/--- | [Download] If being replaced with newest main board and audio doesn't work use this NVM [Download] (19HFL5214U - 761) |
| 32HFL5114 |
616/67 | [Download] |
| 32HFL5114 | 665 | [Download] |
| 43HFL5114 |
617/68 | [Download] |
|
43HFL5114
|
629/94
|
|
|
43HFL5114U
|
---/79
|
|
|
43HFL5114U
|
618/78 |
|
| 50HFL5114U |
620/80 | [Download] |
xxHFL6114U
| Model |
Set Option/Panel Id | Download Link |
| 43HFL6114U/12 |
630/81 | [Download] |
| 50HFL6114U/12 |
625/85 | [Download] |
| 55HFL6114U/12 |
---/87 | [Download] |
|
55HFL6114U/12 |
626/86
|
|
| 65HFL6114U/12 |
---/88 | [Download] |
|
75HFL6114U/12 |
632/84
|
xxHFL5214
| Model |
Download Link |
19HFL5214U/12 | |
| 43HFL5214U/97 |
Use this [NVM-735] and test audio. If no audio, use this [NVM-633] |
| 50HFL5214U/97 |
Use this [NVM-737] and test audio. If no audio, use this [NVM-635] |
| 55HFL5214U/97 |
Use this [NVM-739] and test audio. If no audio, use this [NVM-637] |
| 65HFL5214U/97 |
Use this [NVM-741] and test audio. If no audio, use this [NVM-639] |
75HFL5214U/97 |
xxHFL6214U
| Model | Set Option/Panel Id | Download Link |
| 65HFL6214U | 6 | [Download] |
| 75HFL6214U | 24 | [Download] |
Download and put files into the root directory of the USB Drive.
Check that the filename are precisely the following names:NVM.BIN not NVM(1).bin or nvm.bin, etc
Performing NVM Reset
- Put the TV on standby and disconnect power to the TV.
- Insert the USB Drive into a USB Drive in the TV USB Port.
- Reconnect power to the TV and then turn the TV on.
- Wait for about 2 minute - you should see "Upgrade in progress message"
- IF NOTHING HAPPENS AFTER 10 minutes, POWER OFF TV, try the other USB PORT IN THE TV then repeat step 3.
- Once the NVM Reset has been completed, the TV will restart and perform the forced firmware update (upgrade_loader.pkg) process.
