How to Control A Screen with Specific Monitor ID via IR Daisy Chain

How to Control A Screen with Specific Monitor ID via IR Daisy Chain

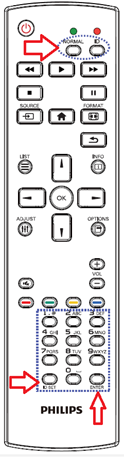

Setting the remote to a specific ID:

1. Press [ID] button on the RC until the red LED blinks twice.

2. Press [ID SET] button for more than 1 second to enter the ID Mode. The red LED lights up. (If you Press the [ID SET] button again will exit the ID Mode. The red LED lights off.)

3. Press the digit numbers [0] ~ [9] to select the display you want to control. For example: press [0] and [1] for display No.1, press [1] and [1] for display No.11. The numbers available are from [01] ~ [255].

4. Press [ENTER] button to confirm. The red LED blinks twice and then lights off.

NOTE:

• Press [NORMAL] button. The green LED blinks twice, indicating the display is in normal operation.

• Press [ID] button. The red LED blinks twice, indicating the display is in ID operation.
