InFocus 50 Series - How to Enable Wifi

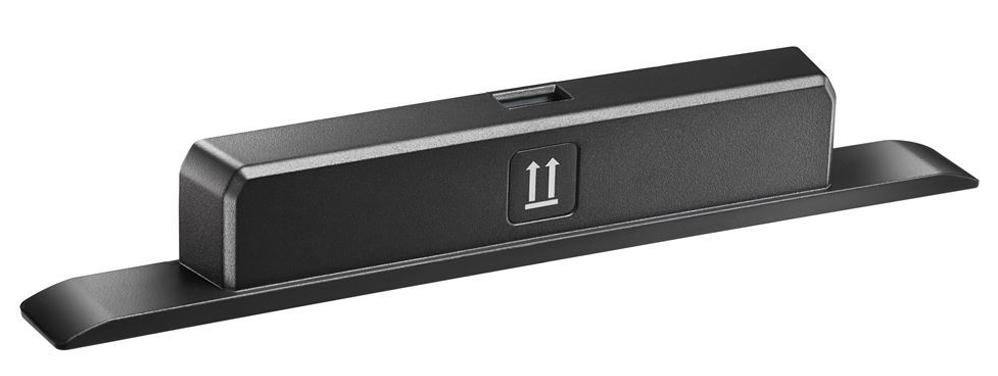

Ensure that the following Touch Hub SI07B IFPD WiFi and Bluetooth Module is installed in the slot underneath the INFxx50 (slightly right to the infocus logo)

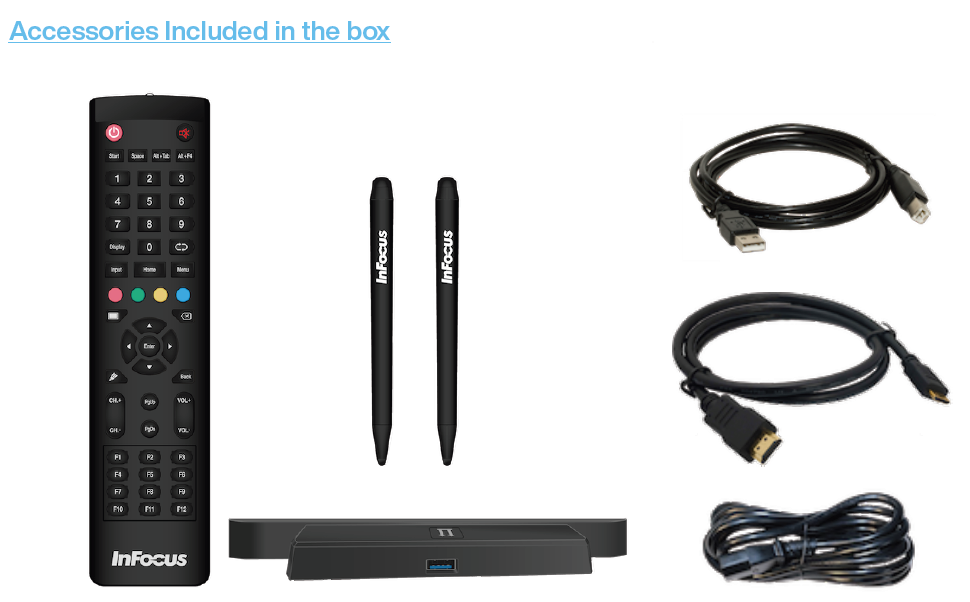

It should be included in the accessories kit

WiFi

• Enable the connection by selecting the WiFi option to open the sub-menu.

• Change the toggle switch on the right-hand side to switch on the connection. It will change to a green

colour. (wifi fig 1)

• Once the connection is on, the network device will search for local WiFi networks and these will appear

below.

• Select the network of choice to open the password and Advanced details window.

• Enter the WiFi network password. (wifi fig 2)

• If any additional security settings are required, select the “advanced Settings” option and scroll down on

the page to display the Proxy and IP Settings options.

• The proxy details can be entered and would be provided by your IT administrator if required.

• If the display is to be assigned a “fixed” IP address, change the option from DHCP and complete the

additional settings. These will be provided by your IT administrator.

• Once all settings are complete, press “Connect”

The WiFi will connect to the network and show as connected on the main WiFi page

The WiFi can be switched to another network by following the above steps and can be switched off by

changing the toggle switch.
