xxBDL4050D, xxBDL4051T, 65BDL3051T (Dragon 1.0) - Screen color cycling

Issue

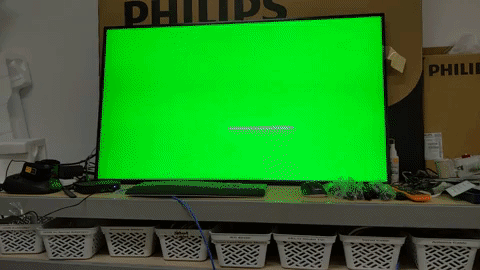

Screen is color cycling like the video below.

This is because its Burn-In mode has been set to On.

to get rid of it, we need to turn the Burn in mode to off.

color cycling

Resolution

Steps:

1. Go into Factory Menu by pressing Home,1,9,9,9,back on the remote

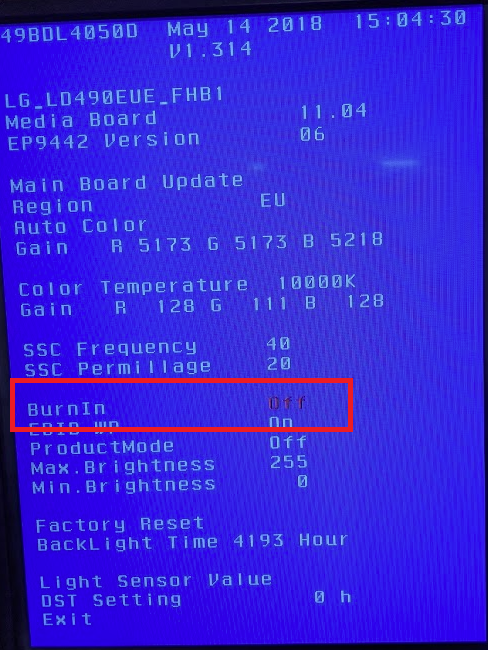

2. Navigate to Burn In Mode setting, set it to off, the color cycling will disappear
