xxBFL2114 xxBFL2214 NVM Reset Procedure

Introduction

NVM (Non Volatile Memory) Reset Procedure overwrite the NVM memory area with a model specific NVM image that is usually loaded during the TV's assembly process.

The NVM image used is dictated by the LCD component (the front part of the TV that lit up and produces picture) used in the TV.

That's why different Philips HFL TV model WILL require different NVM files

Even 2 BFL TVs of the same model, with different serial number range may use different LCD types, and thus require different NVM files

NVM Reset Procedure on xxHFL4014 will wipe out all configuration from your TV, including TV channels and other settings.

After this procedure, you need to reinstall the TV and start from scratch.

Prepare the USB Drive:

Format the USB Drive with the following settings:

  File system=FAT32

  Allocation unit size = 64 kilobyte

Download upgrade_loader.pkg for xxHFL5014/6014/5114/6114/xxBFL2114 into USB Drive.

https://westanonline.sharepoint.com/:f:/s/Support/EhvpvCPhuqRVod0ORO2BcrQBRmB50HPNA6POCOBkHLlvkw?e=4HEY00

Download NVM.BIN file (Model dependent) into USB Drive.

xxBFL2114

Model	Download Link
50BFL2114	https://westanonline.sharepoint.com/:f:/s/Support/Eoxreeq4RE9VjgXP2OVdQ7sBlWDBKBuJdsOljPa10FdrFg?e=iJU6nF
58BFL2114	https://westanonline.sharepoint.com/:f:/s/Support/EhN8r0qGKDBRmaq20JluxkoB2lSk3tWgTm2ybTRPyJOKpw?e=mblKha
65BFL2114	https://westanonline.sharepoint.com/:f:/s/Support/EpAMd89KfntelNaQ5ZVCUdUBJ__aQ6YjoHOIBv5qeUg43A?e=wbyDBo
70BFL2114	https://westanonline.sharepoint.com/:f:/s/Support/EiI59p3lI39Smg_-PHKGpuwB8Bh8cGESZVbvW5_J---r1Q?e=4NatMG
75BFL2114	https://westanonline.sharepoint.com/:f:/s/Support/Ei1prNgoiQVasIE-Tt1mS2QB-5NvE_0SoQwTB9YlVItWBg?e=9BEbVj

xxBFL2214

Model	Download Link
43BFL2214	https://westanonline.sharepoint.com/:f:/s/Support/EqDwE7lkEVVAs7im9SPGeygBeAWUtSUxEFolsrWJ5MCwtw?e=cPazBP
50BFL2214	https://westanonline.sharepoint.com/:f:/s/Support/EqvF7i0dToVEiiNcThEZr1sBtHbvma5jW70bFH0jlq6zag?e=Yaedml
55BFL2214	https://westanonline.sharepoint.com/:f:/s/Support/EgKd4m6CP5xDv1XW5nGgb60BOaDQ9hkKpdYf0ZgbSgmMIg?e=Cg9vNV
65BFL2214	https://westanonline.sharepoint.com/:f:/s/Support/EnAC_ma1UdFGsOE4lLqiiYsBbPoJwZtQs_AuU0FSiJrlyw?e=DUYZp3
75BFL2214	https://westanonline.sharepoint.com/:f:/s/Support/EuqCV-lnixBHl8ToPSBFDNABB6YHMnWatictjfvkiYTTwA?e=iWYfeq

Download and put files into the root directory of the USB Drive.

Check that the filename are precisely the following names:
NVM.BIN not NVM(1).bin or nvm.bin, etc

Performing NVM Reset

1. Power off TV (disconnect power to the TV)

2. Insert the USB Drive into a USB Drive in the TV USB Port.

3. Power on TV (reconnect power to the TV)

4. Wait for about 2 minute - you should see "Upgrade in progress message"


    - IF NOTHING HAPPENS AFTER 10 minutes, POWER OFF TV, try the other USB PORT IN THE TV then repeat step 3.

Cloning In Configuration File

After NVM reset, the Instant Initial Cloning won't work properly..

If you need to clone in TV configuration, please choose one of these option:

From the TV's Clone USB to TV option

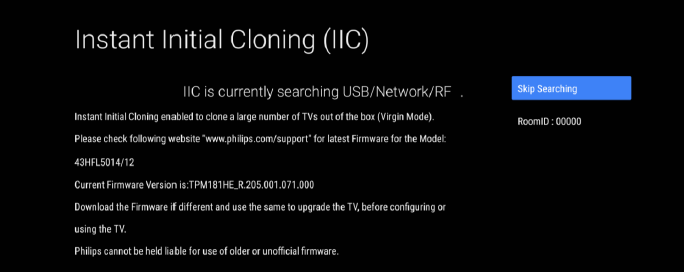

At Instant Initial Cloning (IIC) - Press Skip Searching,

Enter the RoomID: - Press Confirm

Professional Menu - You completed basic setup - Confirm

You'll be shown the professional menu

Navigate to Upgrade and Clone -> Clone USB to TV

Alternatively

Reinstall the TV

Reinstall the TV, and IIC will work properly again

At Instant Initial Cloning (IIC) - Press Skip Searching,

Enter the RoomID: - Press Confirm

Professional Menu - You completed basic setup - Confirm

You'll be shown the professional menu

Reinstall TV- Press Yes

Wait for the reinstall process to complete and the IIC Page to come up

Finish.
