xxHFL3011 - Setup Guide – How to use USB Browser
Important remote sequence:
Professional Menu 319753mute
CSM Menu 123654
A. ENABLE USB Media Browser
Open up the Professional Menu by pressing remote sequence (3,1,9,7,5,3,mute in 2 seconds)
Navigate to the [Features Settings] -> [USB Media Browser] -> [Enable] = Yes
Press back multiple times until you’re out of Professional Menu.
B. Playing images/video from USB Source
Put all the images you want to display inside 1 directory in the USB Drive.
Insert the USB containing the images/video into the TV
Press the Home button on your remote

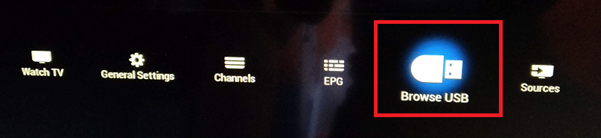

Select Browse USB

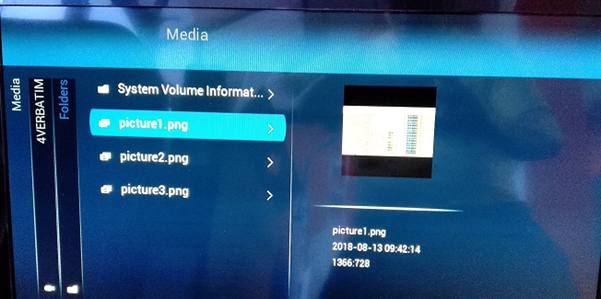

Navigate into Folders, select 1 of the file that you want to display and press OK to play the file.
Press play to play all pictures in that folder:
Select USB
Select Folders

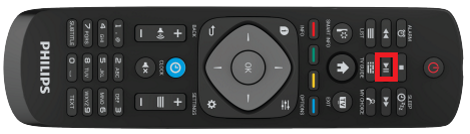

Click the Options button ( ) on your remote
Configure, shuffle, repeat, slide show speed accordingly
Press back until you’re back on the USB’s Folders page
Click the red button on your remote to play all.
To exit, press the back button.
Potential Issues:
TV turns off after 4 hours.
Set Auto Standby to Off
Open up the Professional Menu by pressing remote sequence (3,1,9,7,5,3,mute in 2 seconds)
Navigate to the [Advanced Settings]->[Power]->[Auto Standby]=Off
Feature is not available
Ensure SW TV version is 2.310 or higher (the version number is the last 3 digits)
Press 1,2,3,6,5,4, press down to go to the CSM-2 page, check the SW version.
If the SW version is below 2.310, then update it to the latest SW version by following the instruction in the link below:
Ensure PROFESSIONAL SETTINGS IS ON
Open up the Professional Menu by pressing remote sequence (3,1,9,7,5,3,mute in 2 seconds)
Navigate to the [Advanced Settings]->[Professional Mode] = On
