xxHFL3014 Multi RC Feature

xxHFL3014 Multi RC Feature

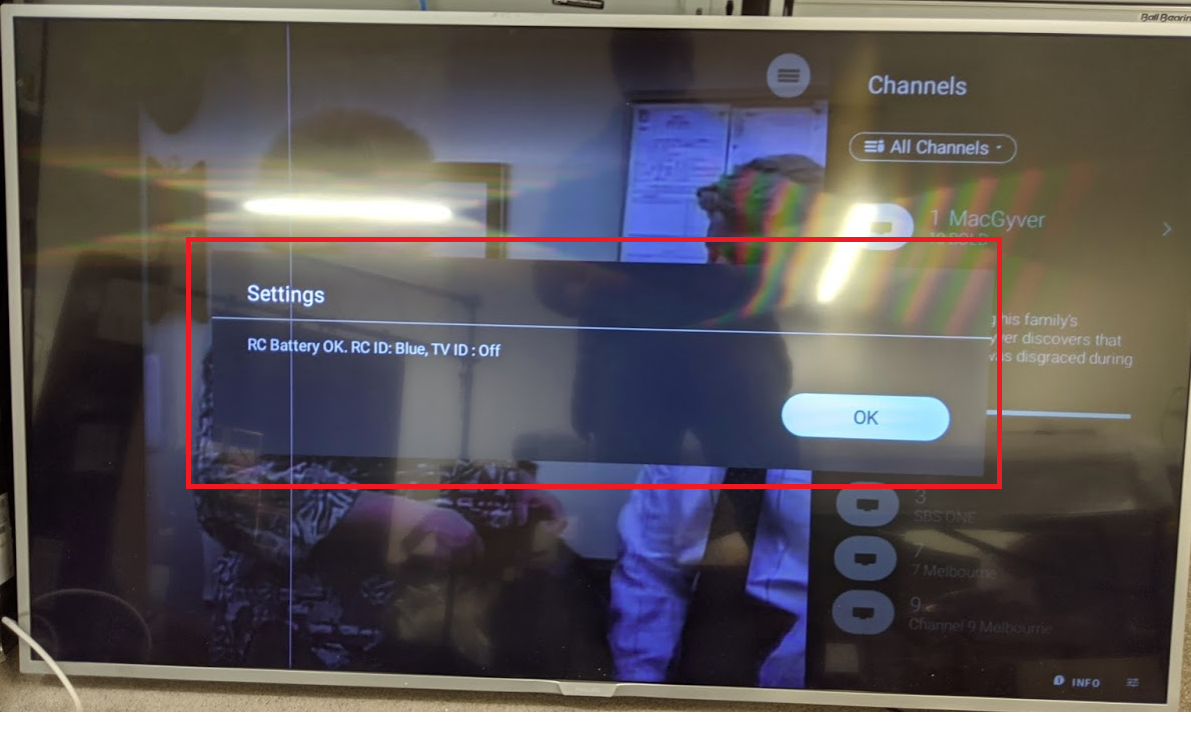

Checking the current mode on the remote and TV

Press OK for 20 seconds



Setting the TV to a specific remote mode.


Go to professional menu.
Go to Features->Multi Remote control, set which mode do you want to set the TV to

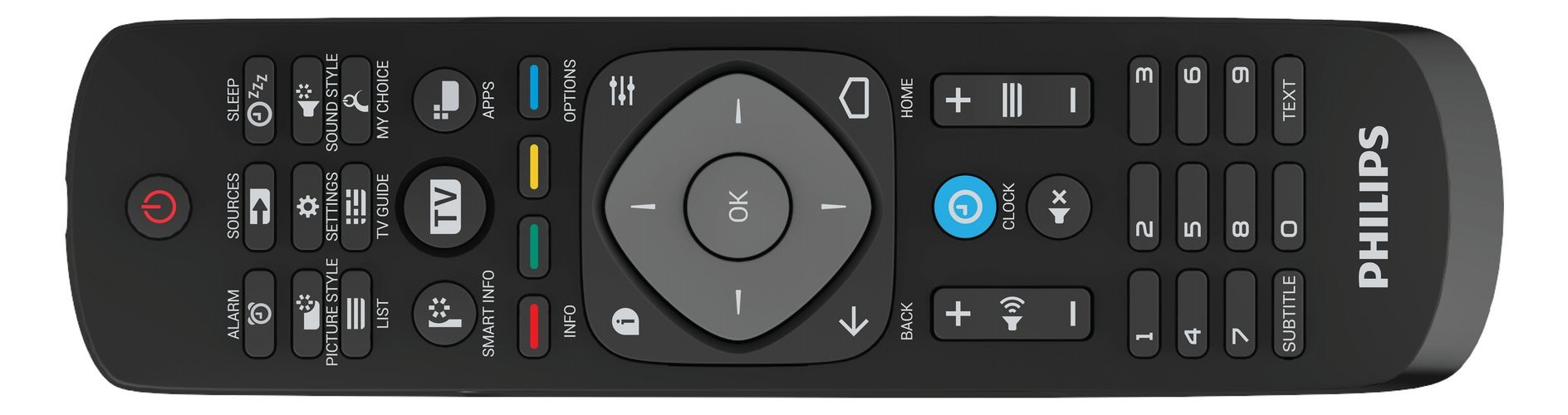

Setting the remote to a specific remote mode (22AV1505B type remote)




Below you can find a table how to match the TV settings and the settings as they can be used in the guest RC (you need to press those buttons for 20 seconds):

Remote Mode
Buttons Combination
Blue (default)
“Home” and “blue”
Yellow
“Home” and “yellow”
Red
“Home” and “red”
Green
“Home” and “green”
0
“Home” and “0”
1
“Home” and “1”
2
“Home” and “2”
3
“Home” and “3”
4
“Home” and “4”
5
“Home” and “5”
6
“Home” and “6”
7
“Home” and “7”
8
“Home” and “8”
9
“Home” and “9”
