xxHFL4014 Setup - Play Image from USB or HDMI Source (if no image in USB) when TV is switched On

xxHFL4014 Setup - Play Image from USB or HDMI Source (if no image in USB) when TV is switched On

Setup Steps

Upgrade the TV to the Latest Software

For xxHFL4014 models please refer to the SOP in the link below

Configuration:

- Go into professional menu: mute, left, right, up down, ok

Prof.Menu-> Switched on Settings ->Channel Settings->Switch On Channel = HDMI (note which HDMI is this)
Prof.Menu-> Switched on Settings ->Feature Settings ->Switched On Feature = None
Prof.Menu-> Features->Welcome Screen->Enable = No
Prof.Menu-> Sources-> Enable Sources = (all)
Prof.Menu-> Sources->USB break-in = On
Prof.Menu-> Sources->USB Auto Play = On
Prof.Menu-> Date&Time->Time Zone Settings->Time Zone Country = Australia
Prof.Menu-> Date&Time->Time Zone Settings->Time Zone Region = Victoria (Default = NSW)
Prof.Menu-> Advanced->Power->Power On = On
Prof.Menu-> Advanced->Power->Standby Mode = Fast
Prof.Menu-> Advanced->Power->Auto Standby = 0


Scheduling

Prof.Menu->  Network - Set up network
Prof Menu-> Features -> Scheduler - Set schedule

Setup Using Clone File & Autorun.upg during Instant Initial Cloning, using pre-configured clone file

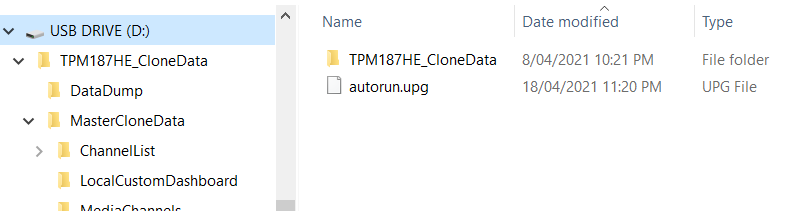

Prepare the USB Drive with autorun.upg and TPM187HE_CloneData folder

Copy autorun.upg and TPM187HE_CloneData folder structure into the USB root directory



Applying autorun.upg and Clone file

Insert USB Drive into the TV USB Slot
Power up (AC On) TV
During IIC, TV will detect and install autorun.upg (if the version it has and the version in the USB drive is different), and the clone file.
Once it finishes, the TV will show a blank page.

Re-installing TV

If TV is already configured, and you want to load up the clone file to reconfigure the TV, you can do so as follow:
Prof.Menu->  Reset->Re-install TV

Playing USB Image When TV is Switched On

Copy image file into USB Drive
Insert into TV.
Turn off TV
Wait for 1 minute
Turn it back on.
Image should play now
