xxHFL5014/5114/6014/6114 How to Export (Clone Out) and Import (Clone In) TV Configuration

xxHFL5014/5114/6014/6114 How to Export (Clone Out) and Import (Clone In) TV Configuration

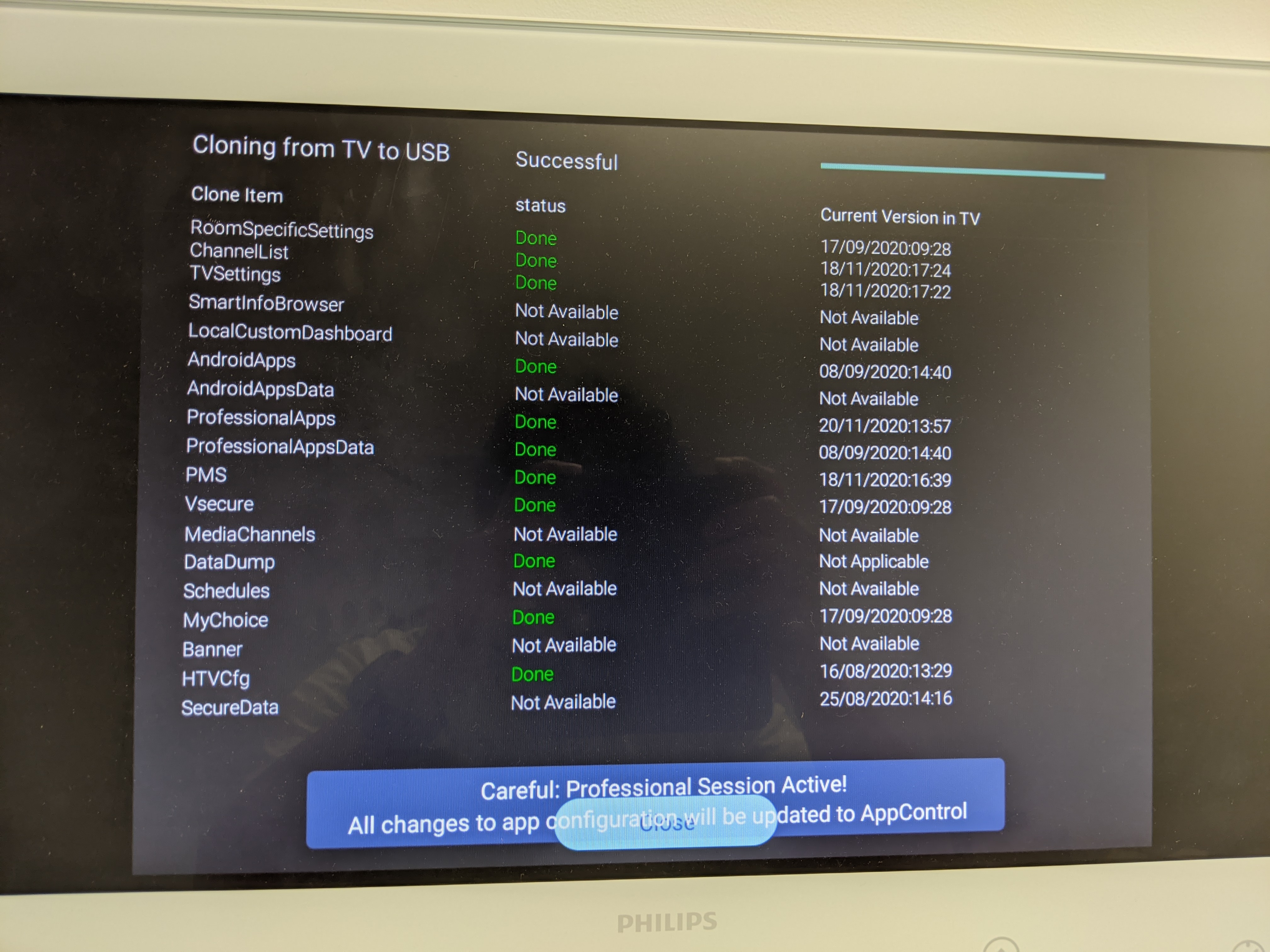

Clone Out

Insert a USB Formatted in FAT32, allocation=64kb
Enter Professional Menu by pressing MUTE-LEFT-RIGHT-UP-DOWN-OK within 2 second using your remote

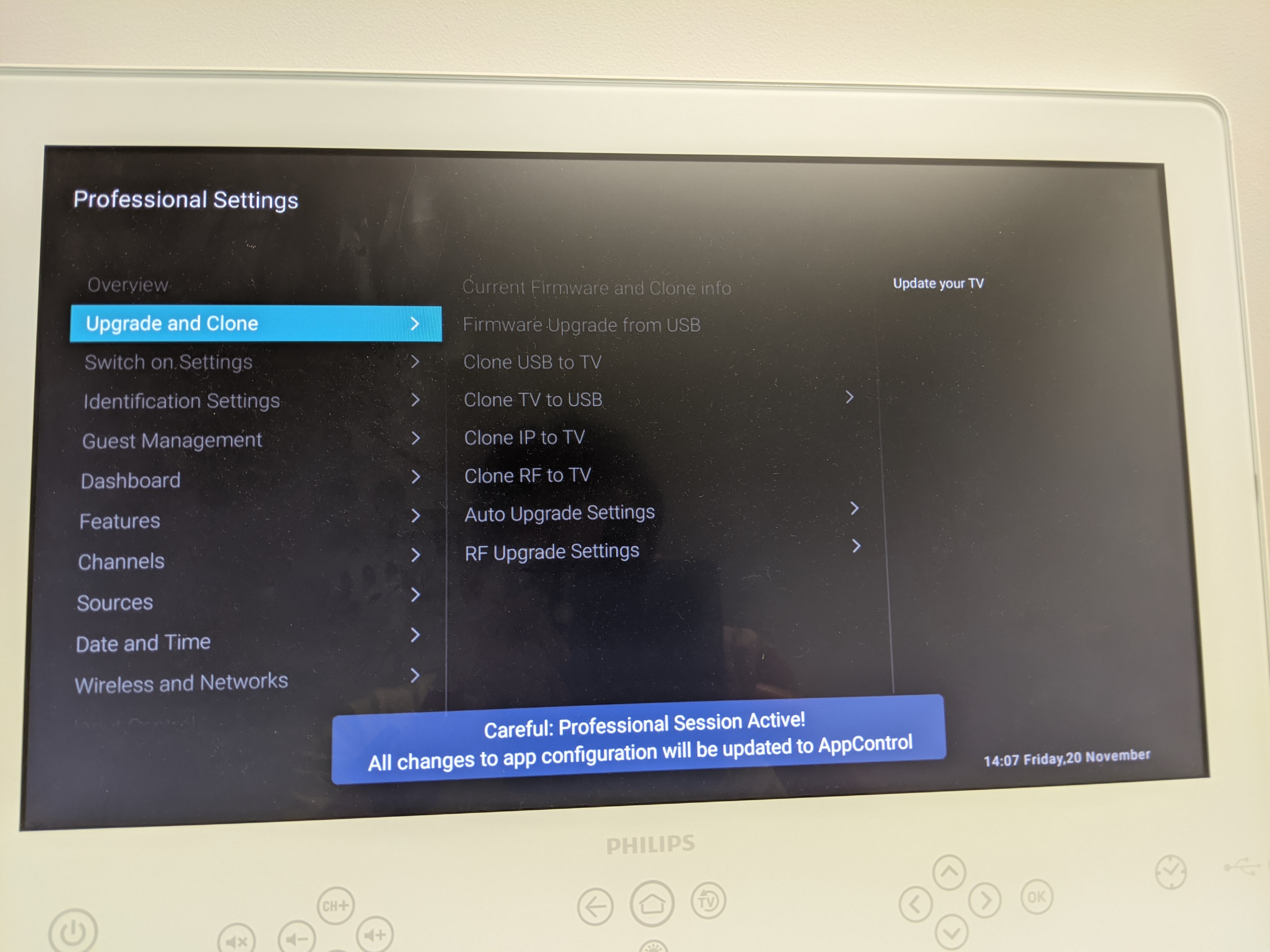

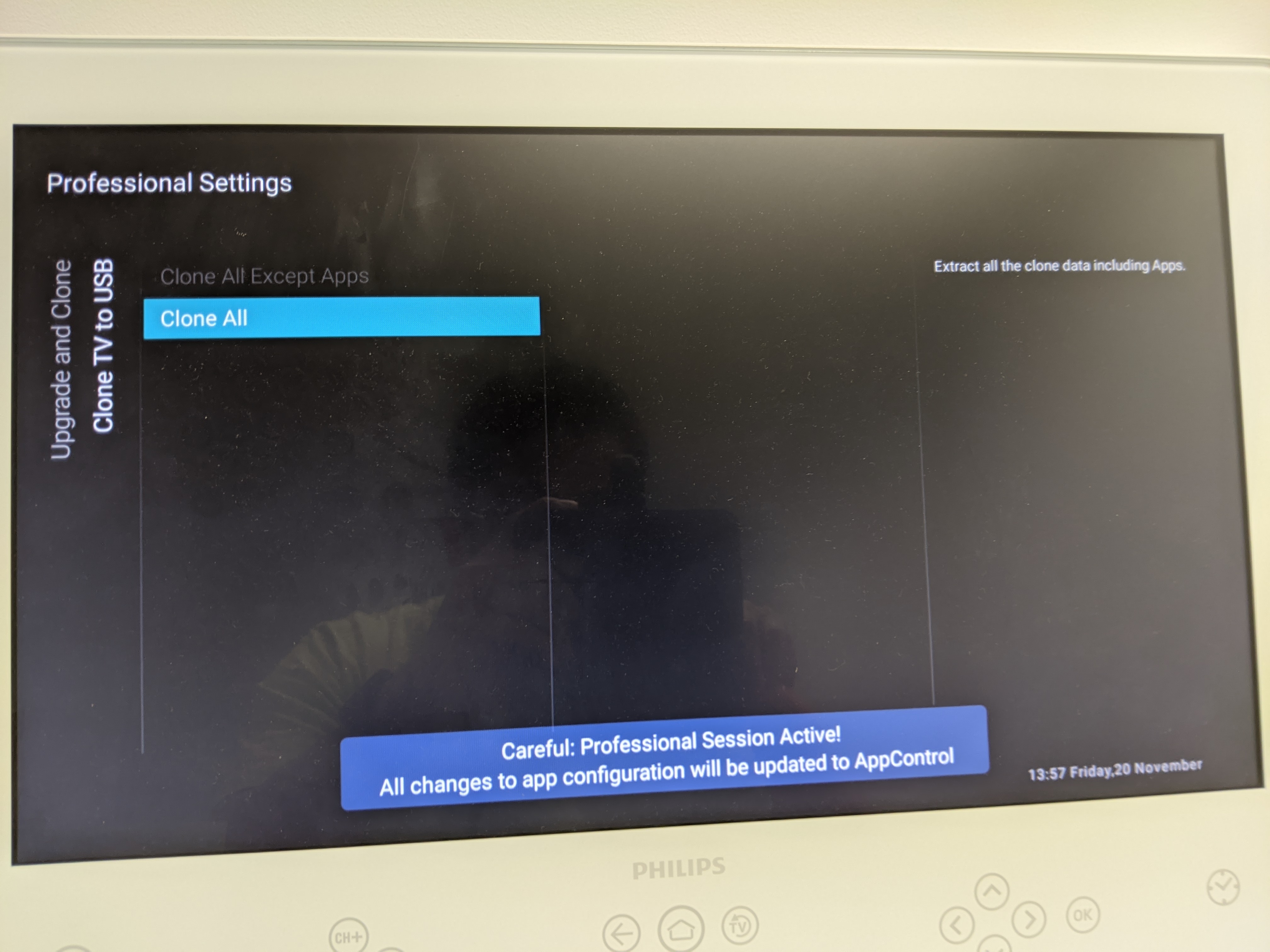

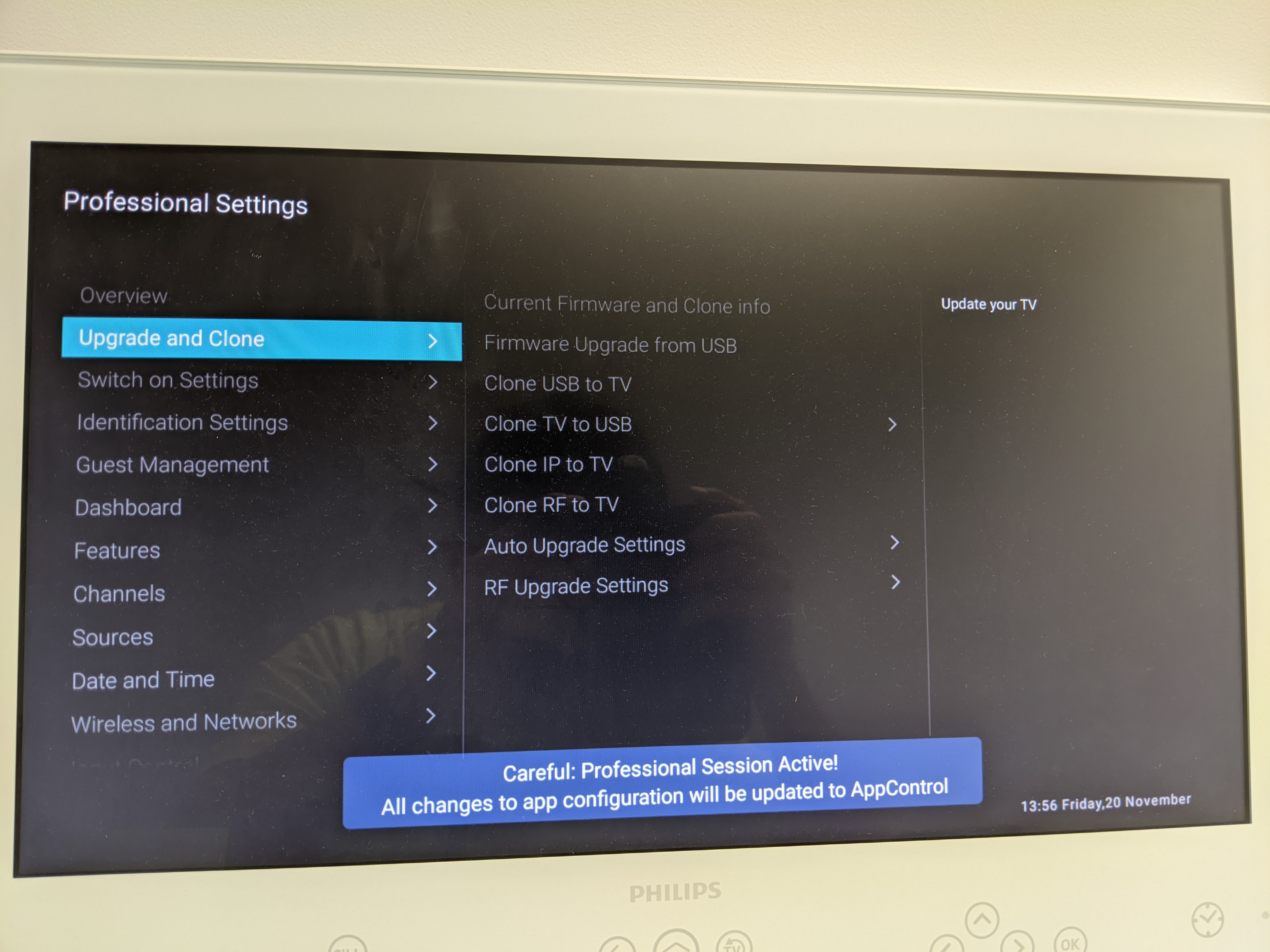

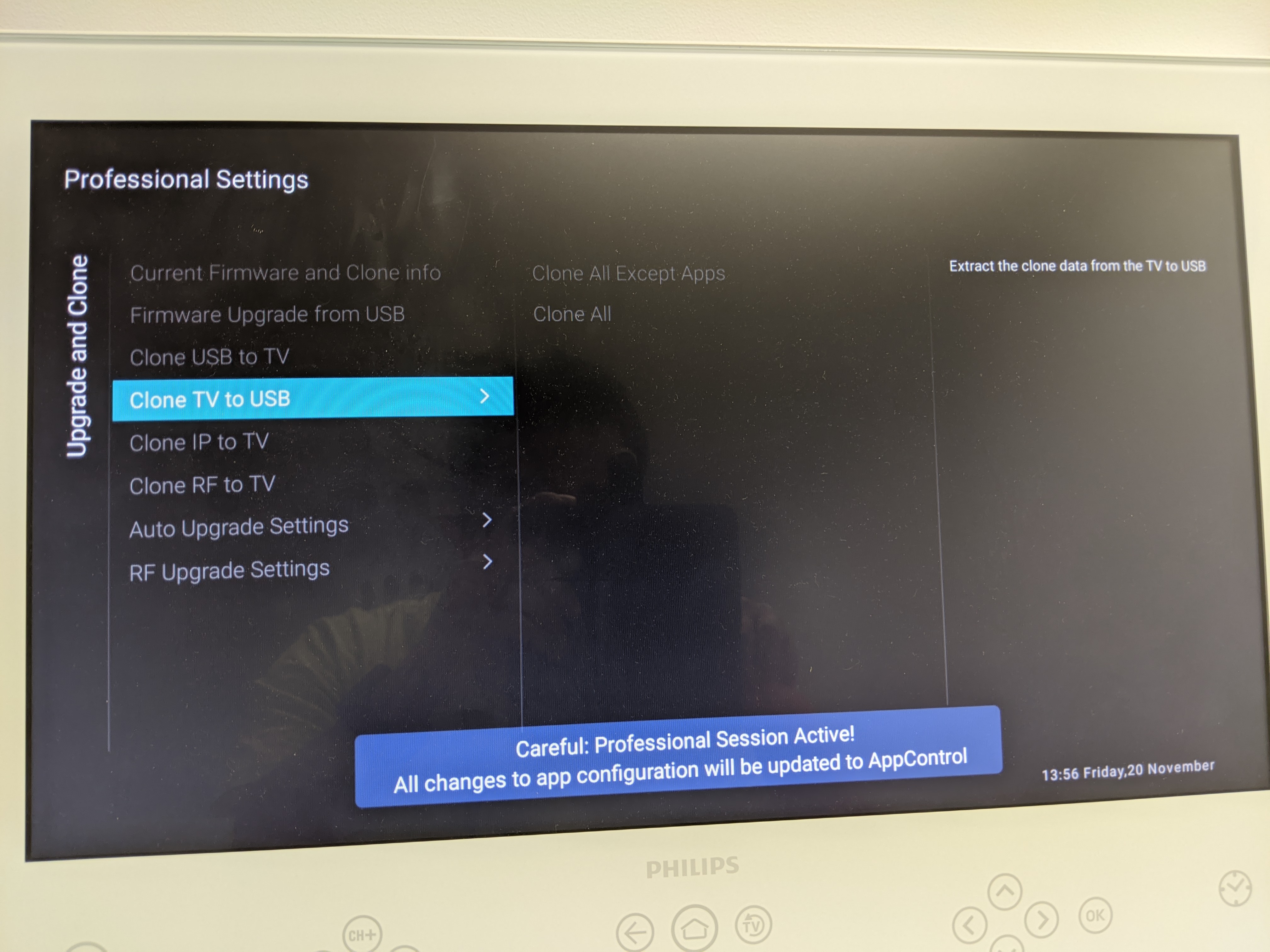

Navigate to [Upgrade and Clone] -> [Clone TV to USB] -> [Clone All]




Video:

Clone In

In an already configured TV

Insert the USB Drive with the master clone file in it. (created by the clone out procedure above)
Enter Professional Menu by pressing MUTE-LEFT-RIGHT-UP-DOWN-OK within 2 second using your remote

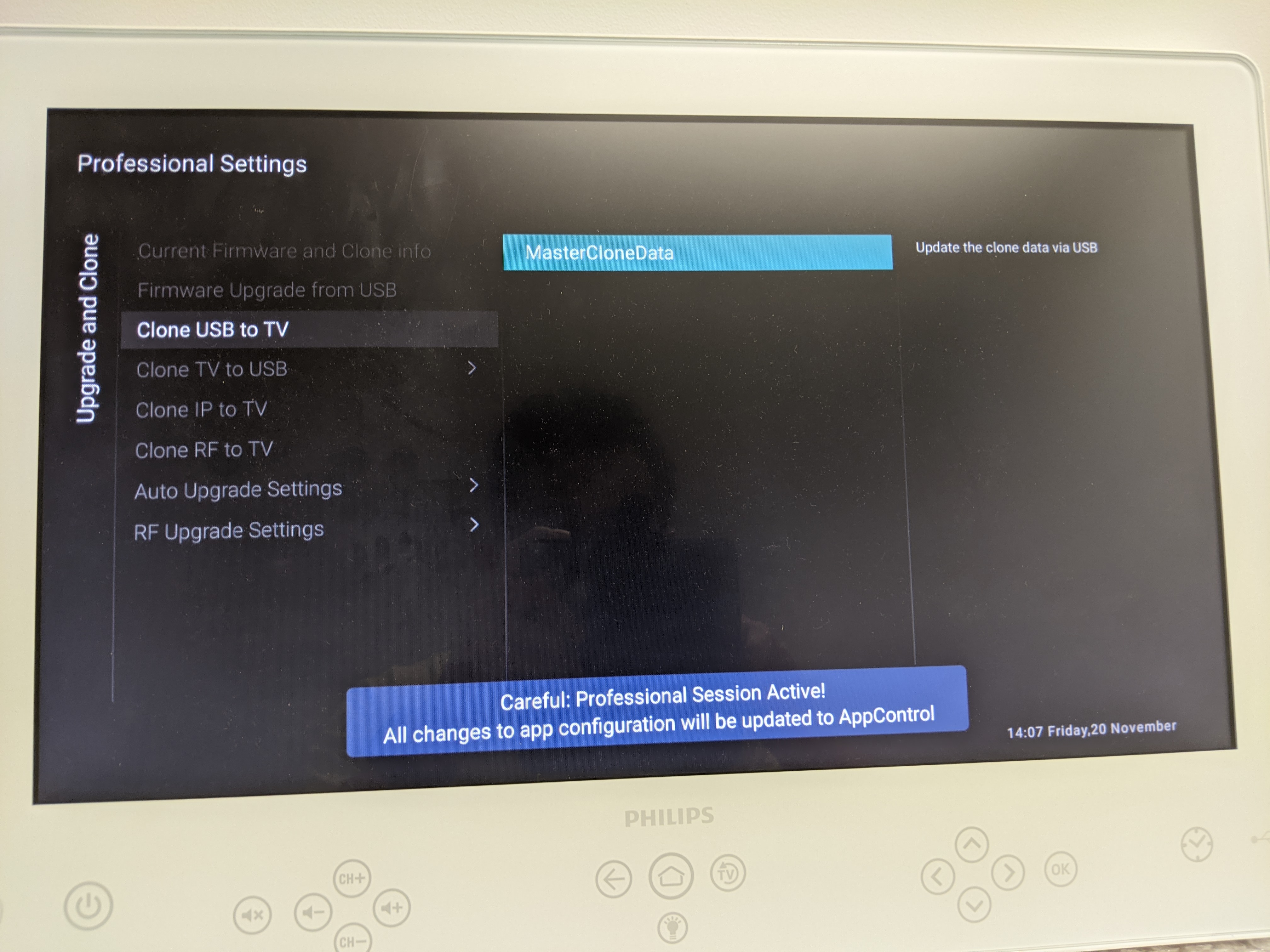

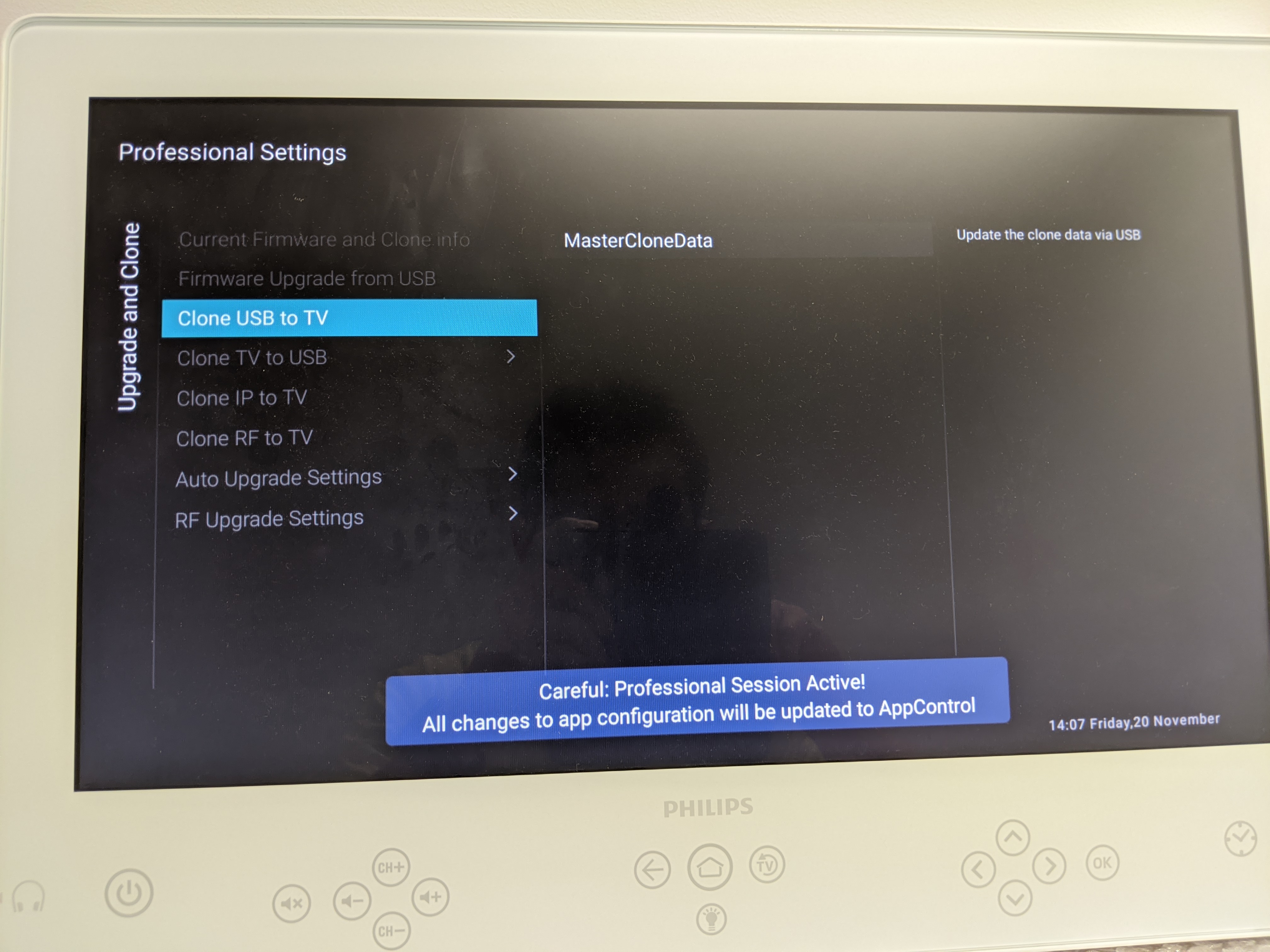

Navigate to [Upgrade and Clone] -> [Clone USB to TV]



Video:



Newly installed TV (During Initial Installation Cloning Page)

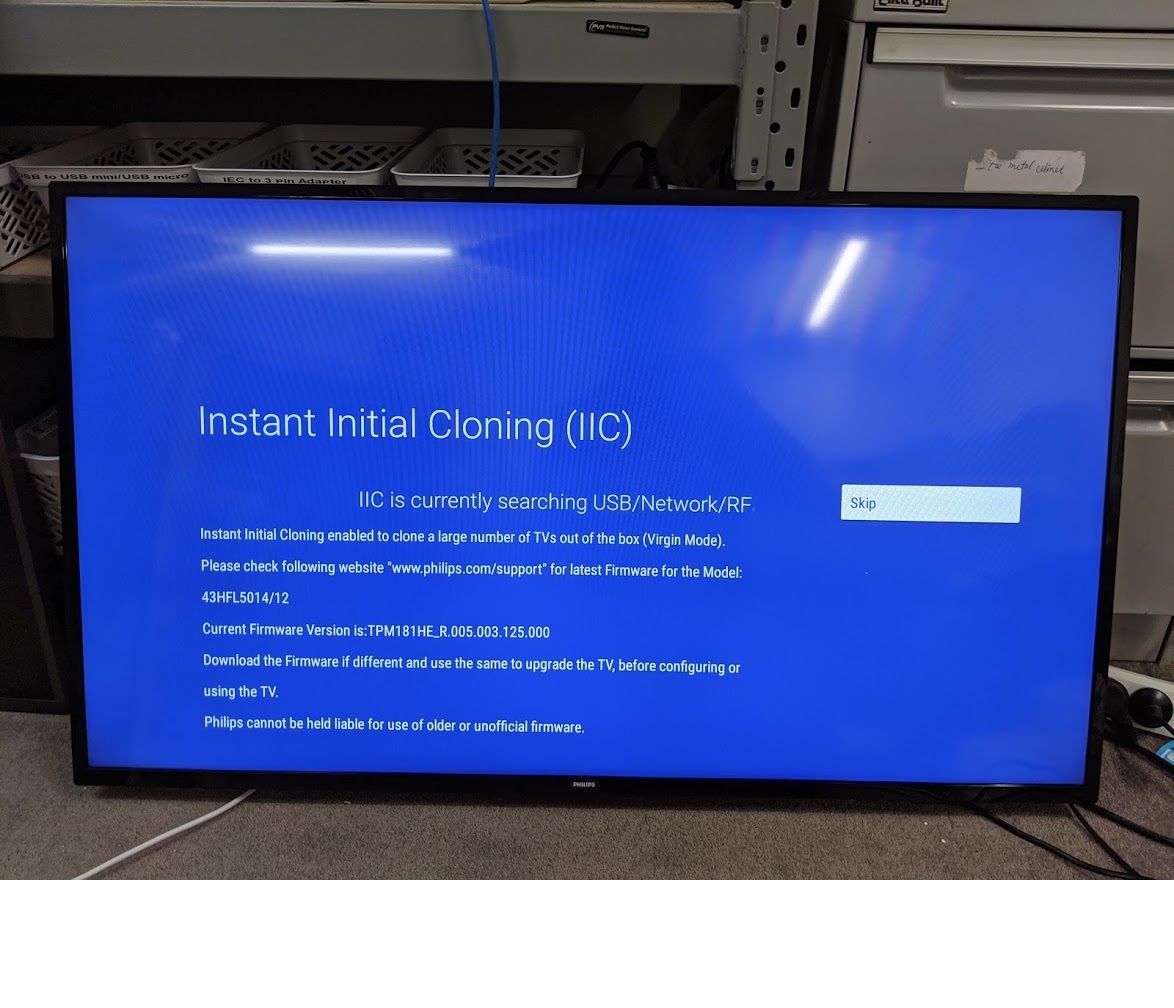

The first page that you see on a newly installed TV (or after a re-installation is initiated) is the Initial Installation Cloning page.

When the TV is showing this page, it will actively search for the USB Drive for 2 items:
- autorun.upg (normal software update file) - if the TV find the file and the software version is different, software upgrade will be carried out.
- clone folder - if the TV find the clone folder, clone in will be carried out automatically.

So, insert the master clone file (created by the clone out procedure above) before or during the IIC page (with and without the autorun.upg) and clone in will be done automatically (if autorun.upg is also available, software update will be carried out first, then clone in)
