Aurora Gen4 Cabinet - Accessing HUB Card, Power Module and Receiver Module Compartment from the Front

Remove all LED Tiles

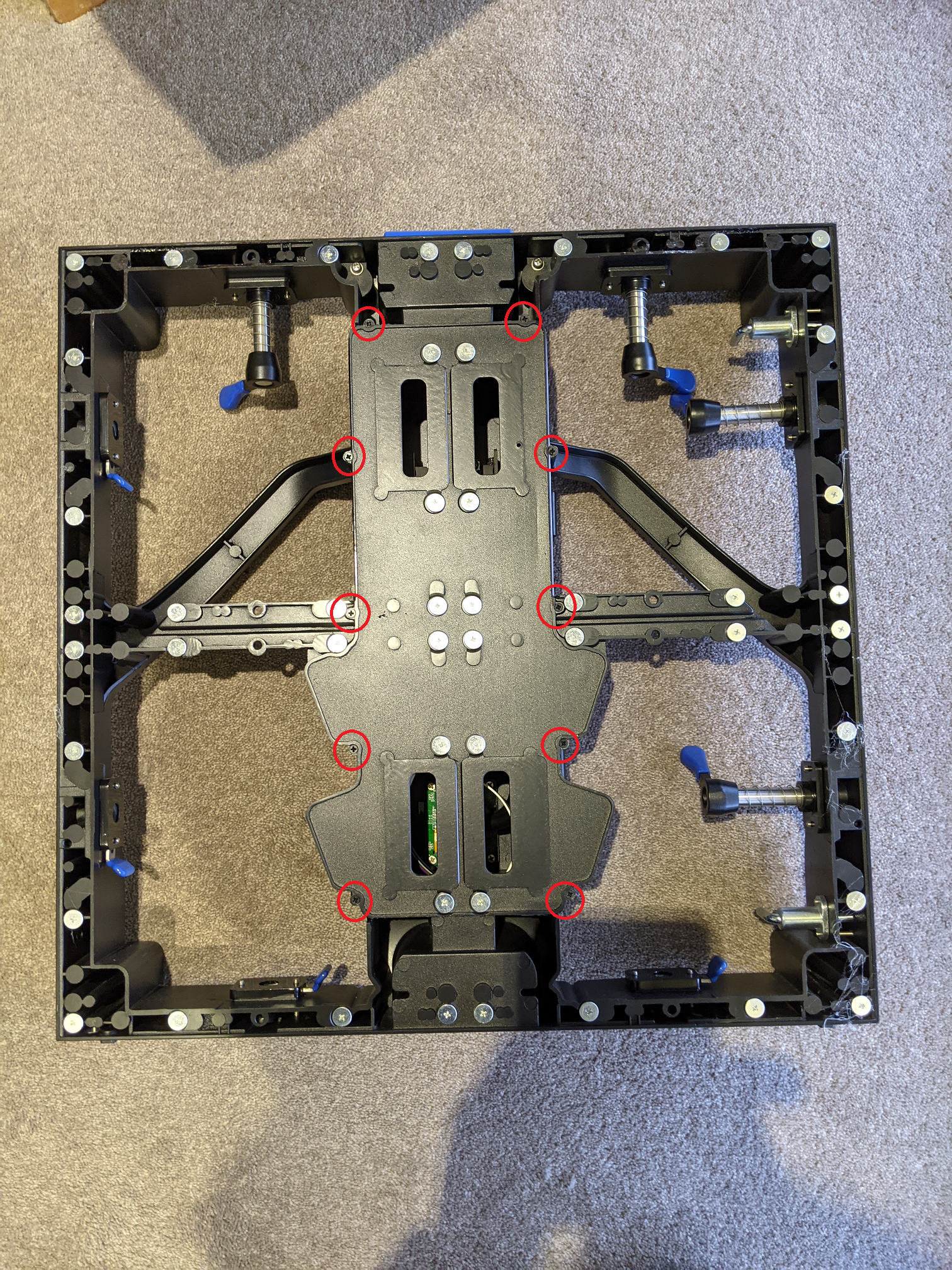

Undo 10 screws (see picture below)

Pull the back plate out.
