BDL3117P - SDM-L Configuring Auto-start App
Alert
SDM-L can't be controlled using Philips remote control.
To control it you need to connect a USB Keyboard and Mouse
Prerequisite
Android build number must be SDB801-10.0-HDMI-FP20230817 or later
Check SDM-L Android Build Number
Click the "Setting Cog"
In the Search Bar at the top, type "about" and click the "About tablet"result
Build number must be SDB801-10.0-HDMI-FP20230817 or later
Update to the latest build number
If the SW version is not SDB801-10.0-HDMI-FP20230817 or later, please perform the sdm-l andorid fw re-image using usb-a to usb-a cable to the latest FW version
Seting Up Auto-Start App
Click The Setting Cog
Click "Accessibility"
Click "Boot the application"

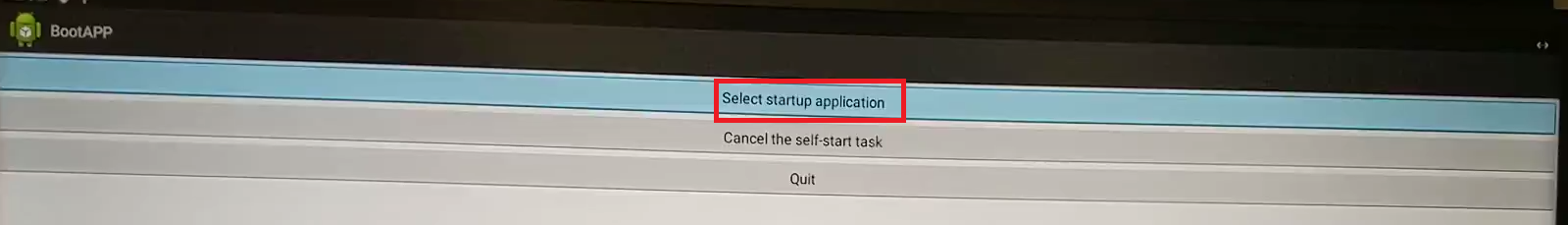

Click "Select startup application"
Then choose the app that you want to run when android boot up
Done, you can quit the menu
