BDL3650Q - Clone Process for Vivi
The following steps will Update the screen to FW version FB01.20 and Clone Vivi 3.9.0 to the screen.
Prepare USB Drive with the Force update and Clone files
Prepare USB flash drive formatted in FAT32 format (preferably 16 GB)
Download USB content from the link below

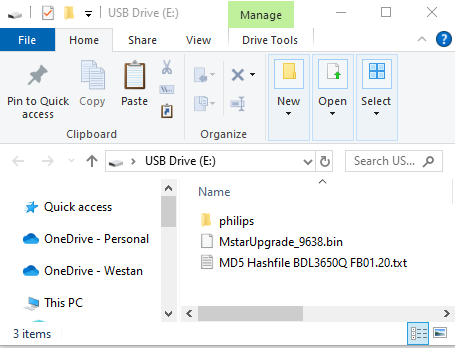

Copy them to the USB Drive as follow
Prerequisite
BDL3650Q FW need to be FB01.20 or later

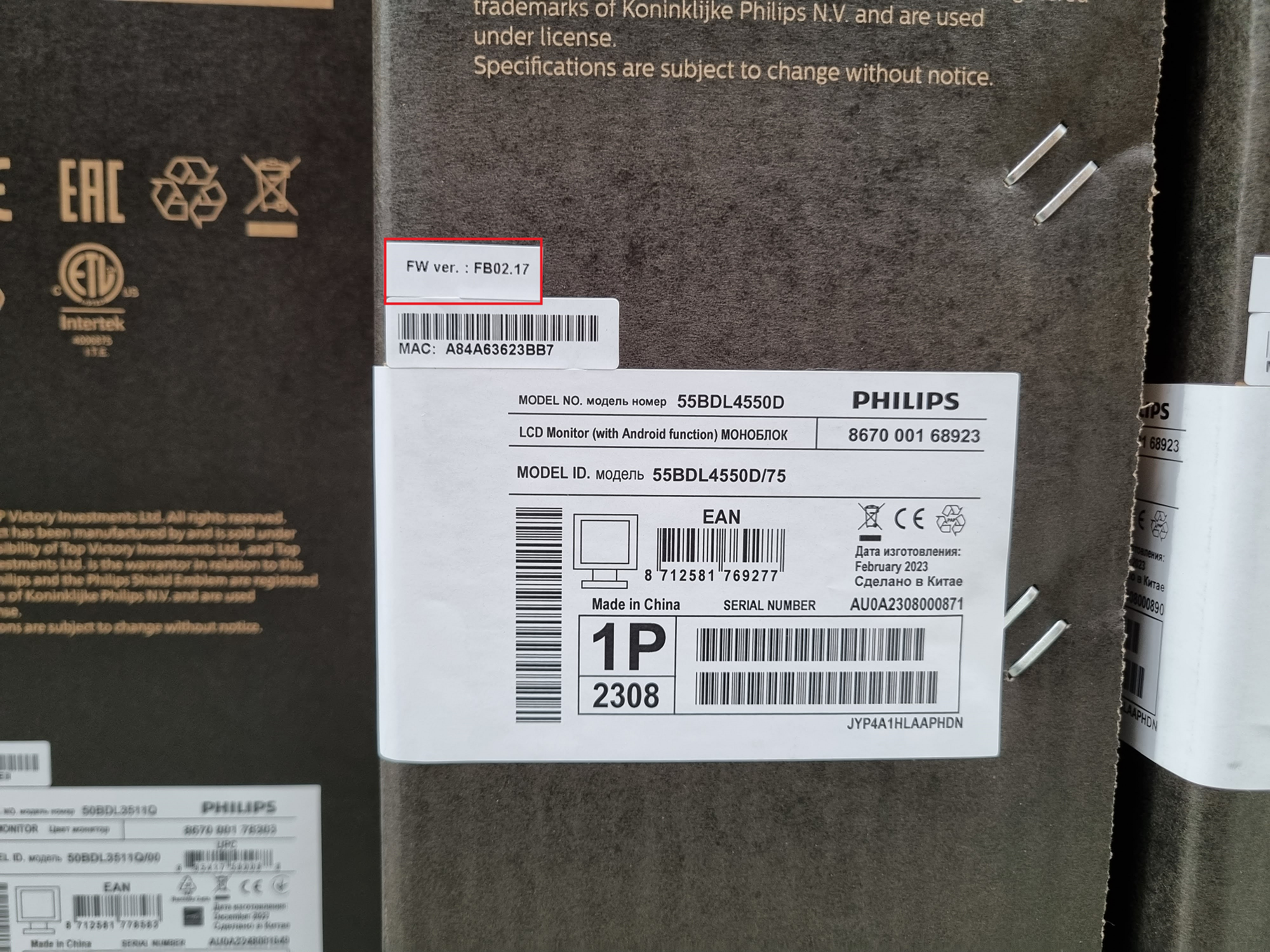

The FW version is written on the Box of the screen
Perform FORCED Firmware Update Procedure
Make sure that the model of the screen is BDL3650Q - if it is not, your screen will be bricked
Procedure:

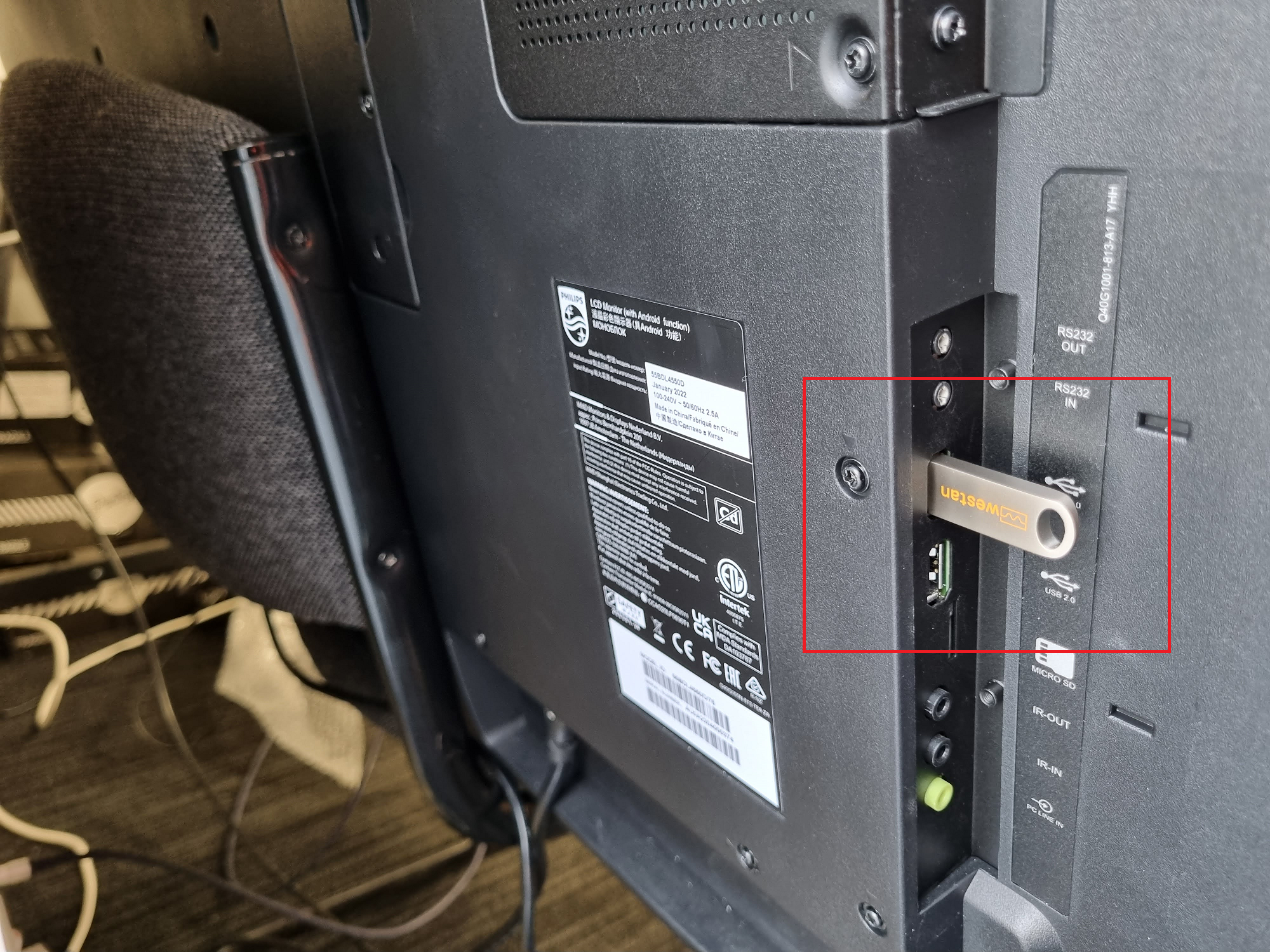

1. Plug in the USB drive to the screen.
2. Power On the Screen (from the main switch - not the remote).
3. While the screen boot up, continue pressing the "INPUT" button on the key (behind the screen)
4. Screen will show upgrade in progress.. Wait until this process complete and you'll see the Welcome screen
Problems:
Step 4 above should take around 5 minutes

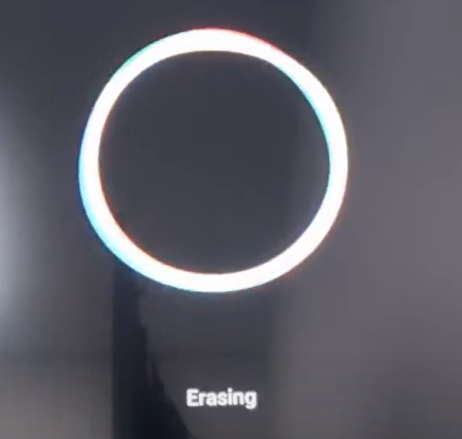

If after 10 minutes you haven't seen the Welcome screen, power off the screen from the main, then power the screen on again and you should see the Android screen Erasing screen after about 30s.
Then you'll see the Welcome screen.
If you doesn't see the Welcome screen, repeat from step 2 above again
Cloning Process (takes about 5 minutes)

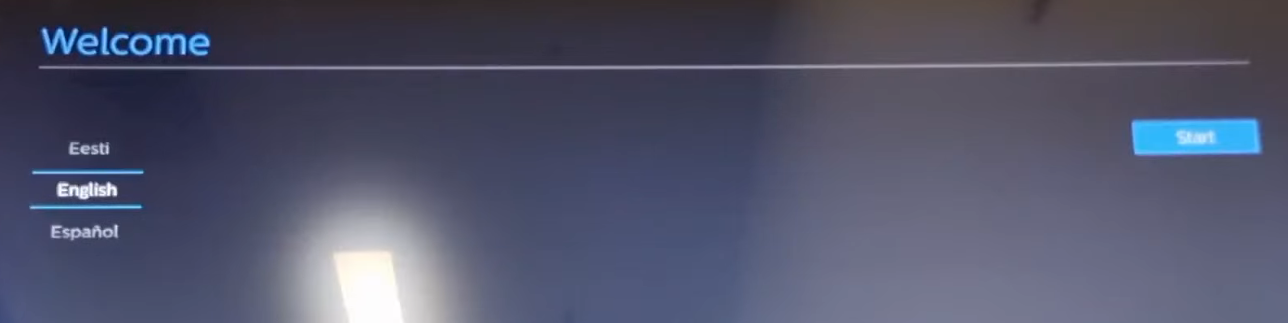

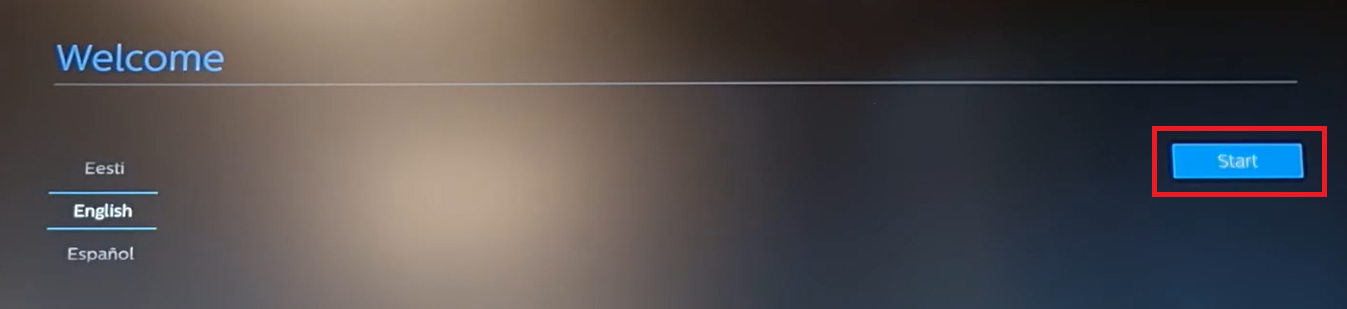

You should be seeing the Welcome screen
Click Start

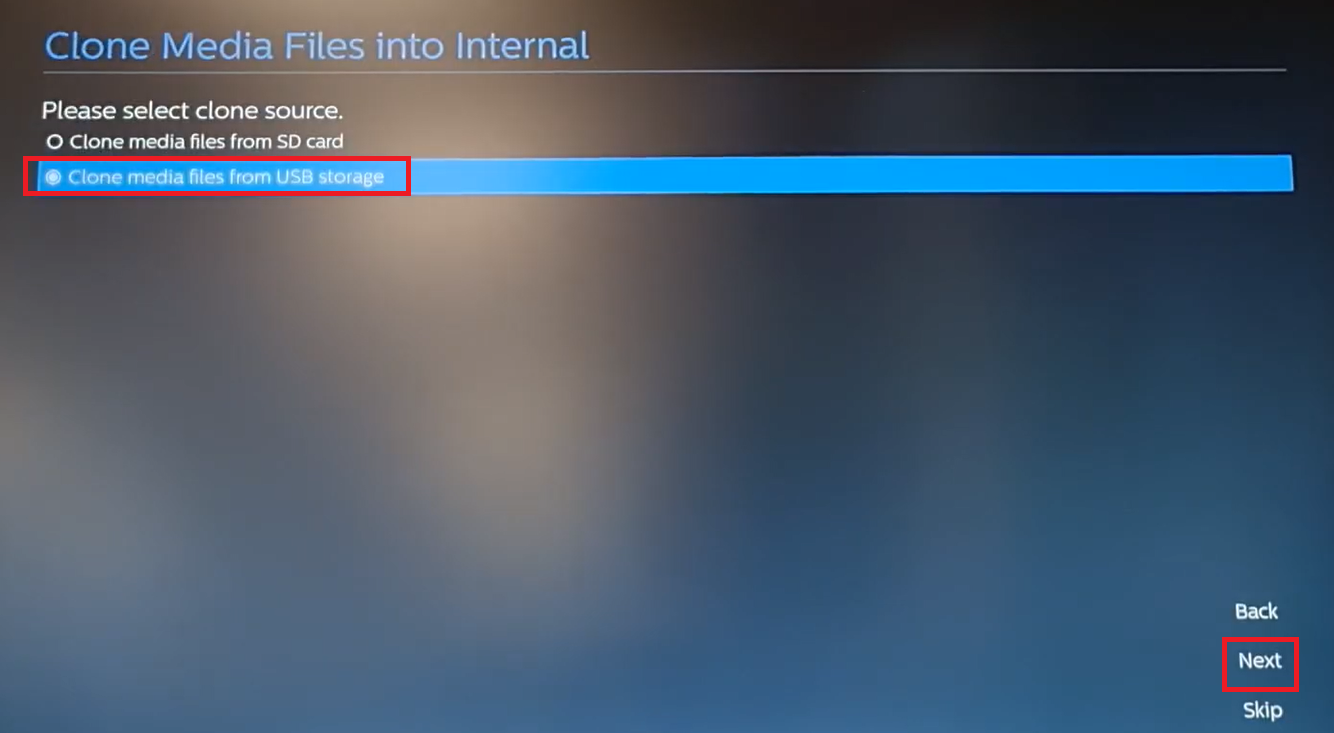

Select "Clone media files from USB storage"
Select "Next", press OK

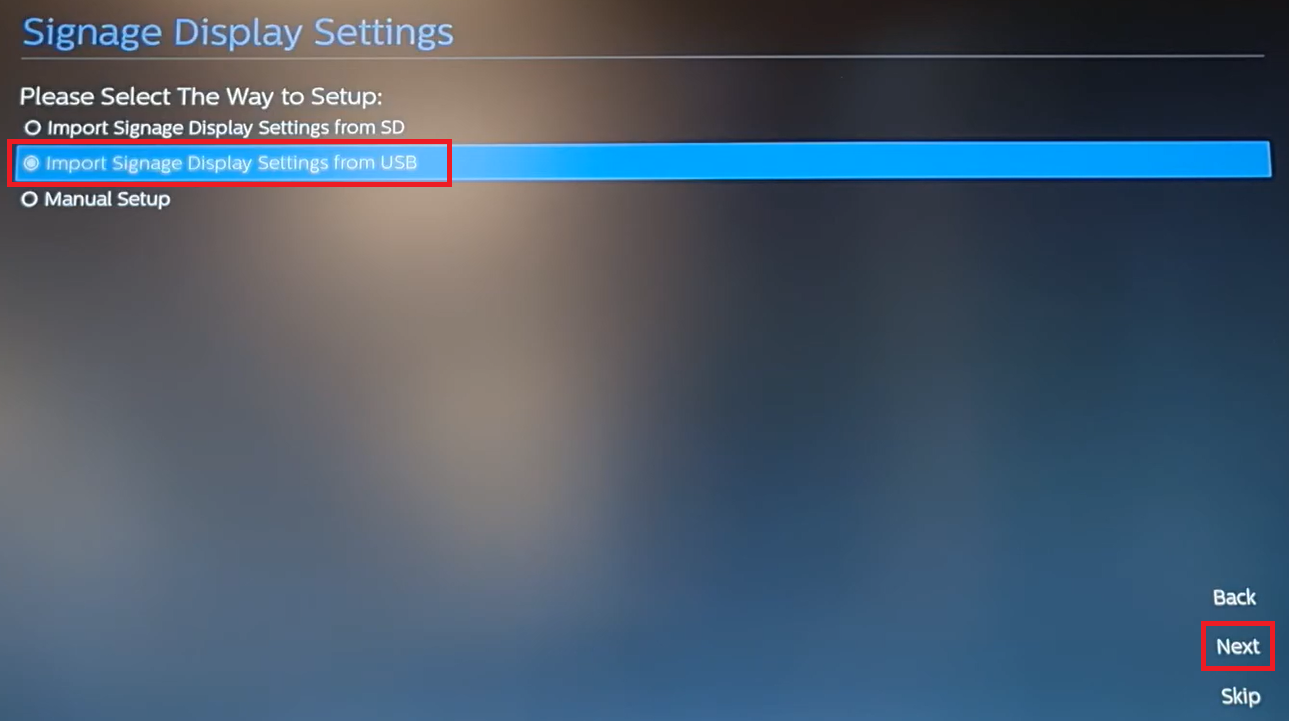

Select "Import Signage Display Settings from USB"
Select "Next", press OK

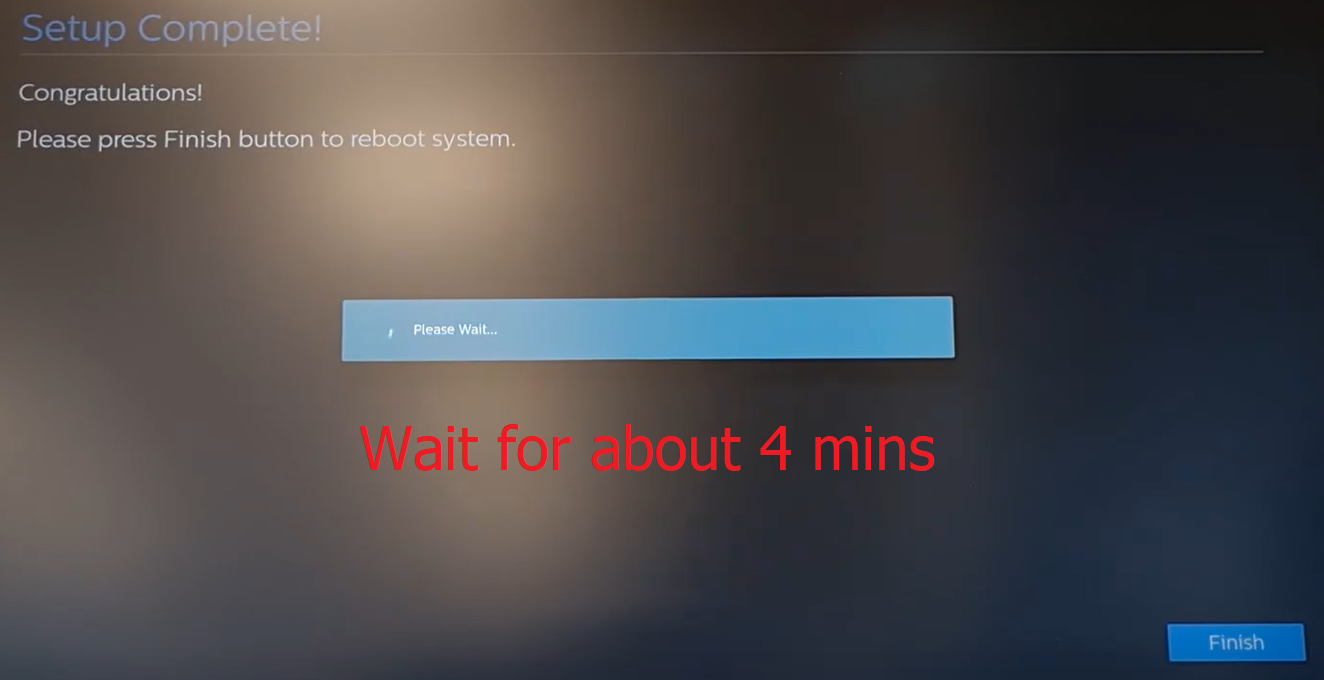

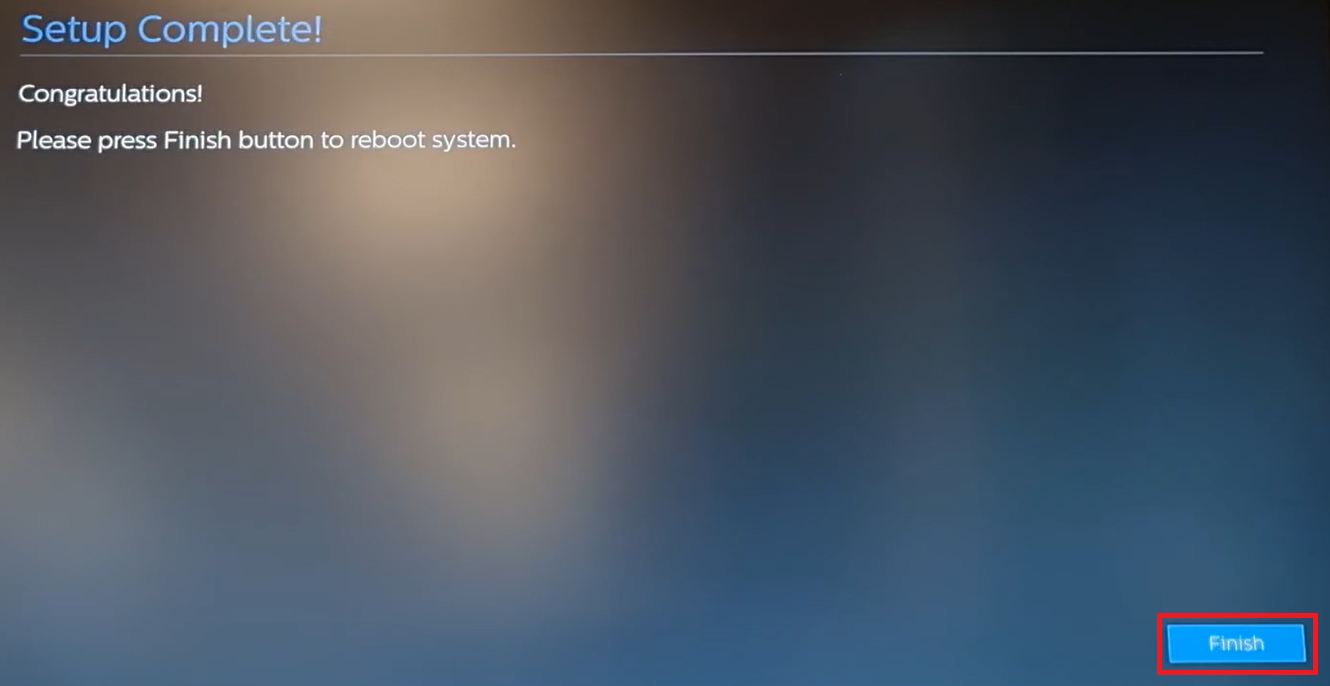

Click "Finish"
Wait for 4 minutes for the cloning to complete

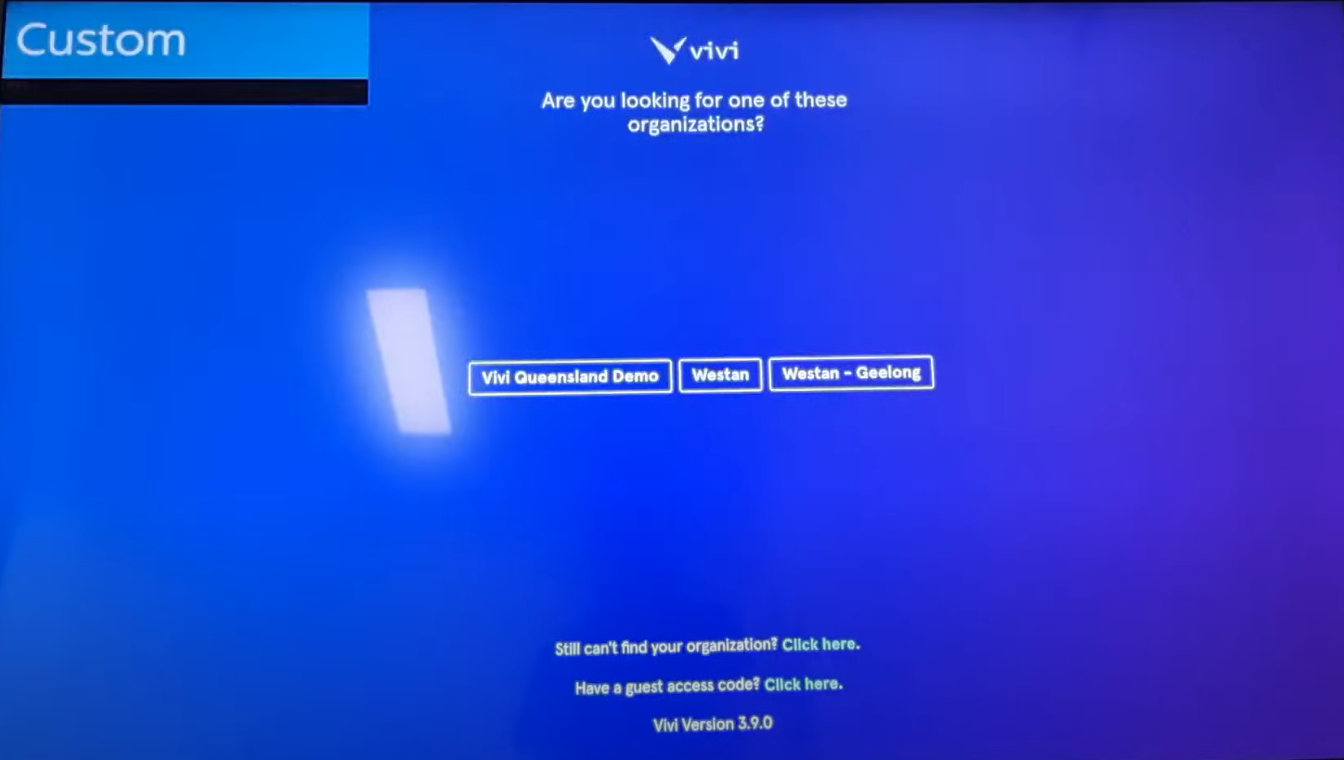

When finish, you'll see Vivi screen
Configure Timezone, Schedule, Orientation
Depending on customer's requirement please configure the following
Time Zone
Check the installation/ship to address and work out the timezone

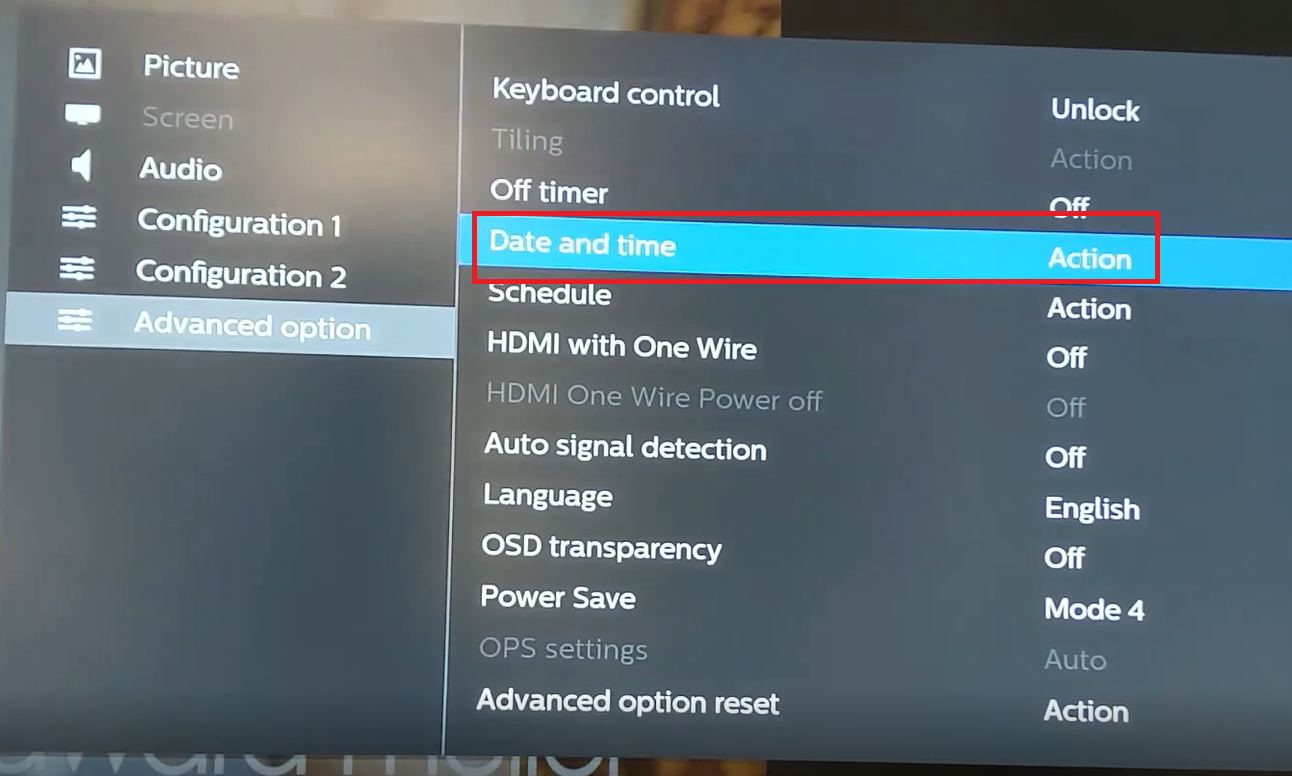

Home->Advanced option->Date and Time

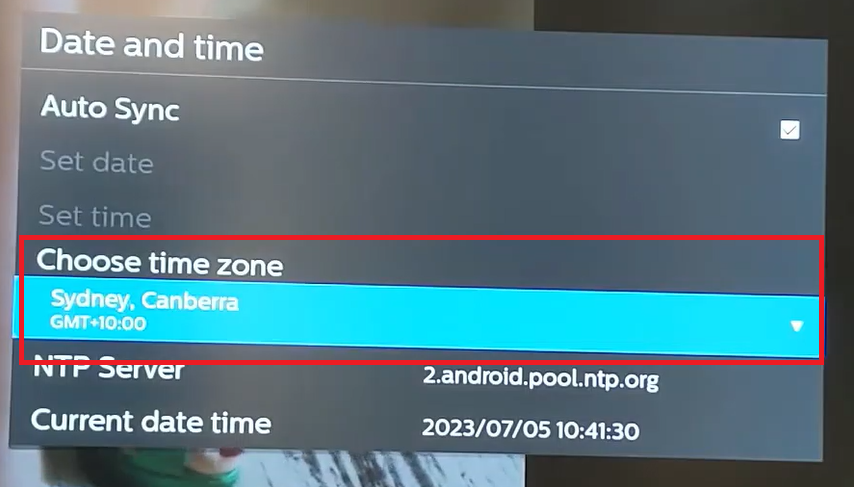

Select the appropriate time zone and hit OK to save it
Schedule
The screen has been set with schedule to turn on from 7.30am to 5pm Mon-Friday.
If you want to change it, please follow the steps below.

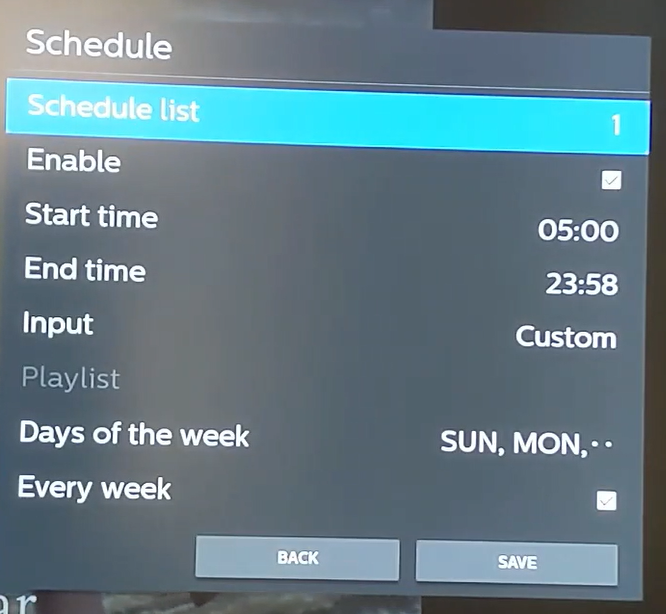

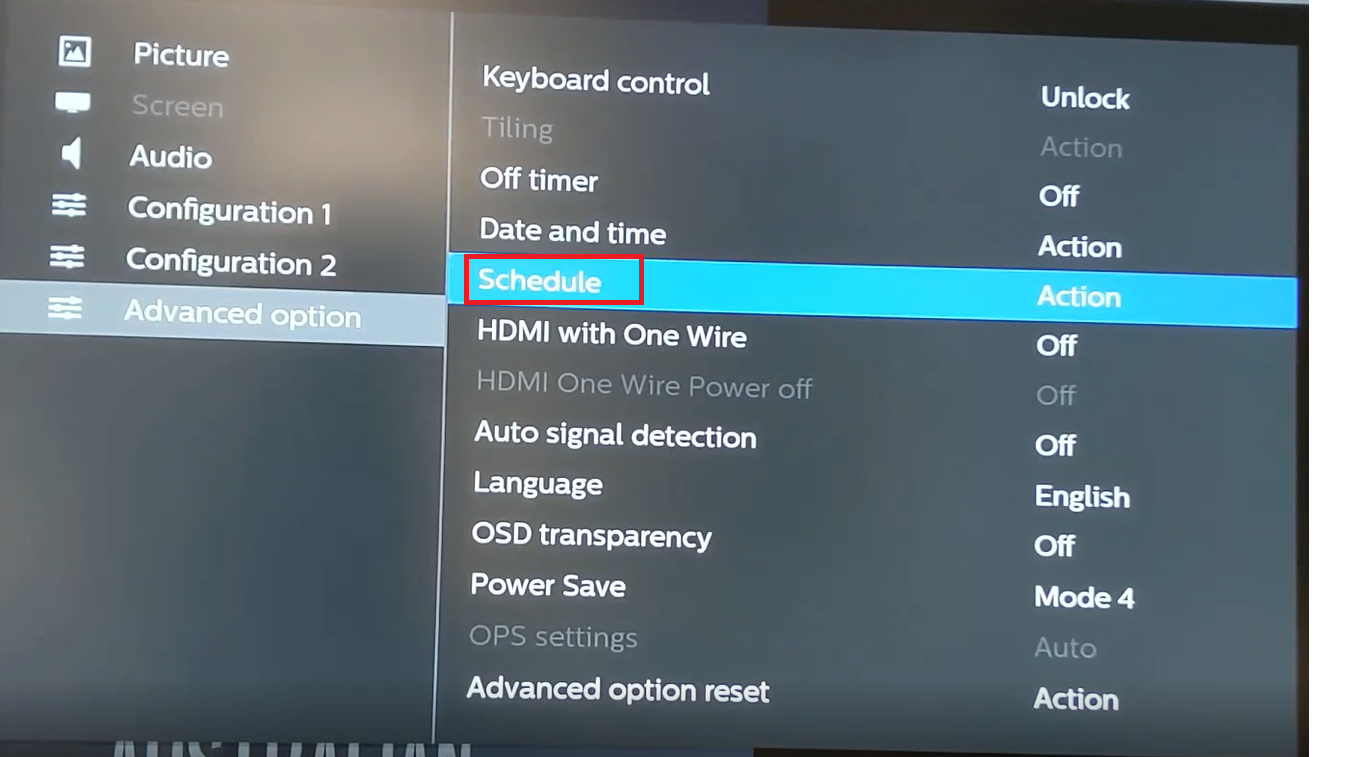

Go back to Home->Advanced Option->Schedule
Ensure the Schedule start and end time is correct
Ensure Input is set to the correct source, Custom
Days of the week are all ticked
Every week is ticked
And most importantly, schedule is enabled
Click Save
Possible Problem:

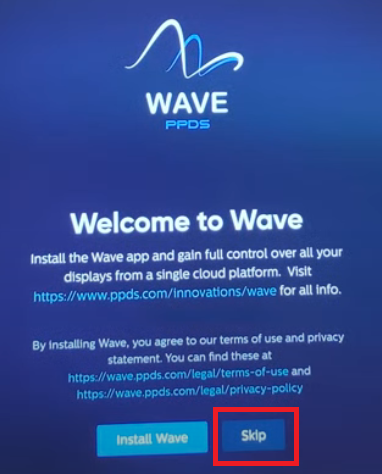

If Wave appears, Click Skip on Wave

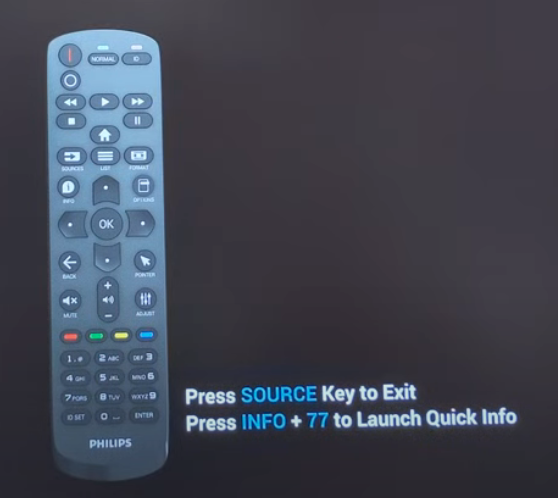

When you see this, Press Source and select Custom
