Fusion Signage is a cloud base signage solution.

A reliable connection to the Internet is required to ensure that it work properly.

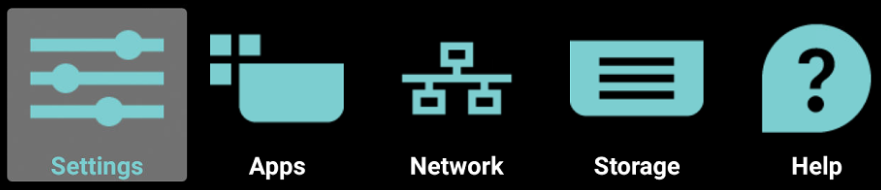

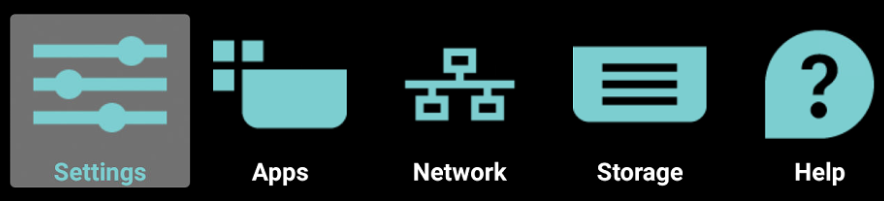

1. Enter Android Menu (Press: Home, 1, 8, 8, 8 [within 2 seconds])

2. Select Network

3. Select your chosen interface (Wi-Fi or Ethernet)

4. Select Enable.
   If using Wi-Fi, select your network SSID from available list, enter password, and select Connect (use List/Adjust to move cursor between buttons on popup box)
5. Press the Back button on the remote control (RC) several times if you wish to exit the Android menu completely.


Download Fusion Signage Software

1. Download Fusion Signage APK from this link https://fus.app/a.apk

2. Copy the .apk file to the root directory of the USB Drive


Install Fusion Signage Software

There are 2 USB ports on the xxBDL4050D, only one is used to connect USB Drive, the other one is only for Power over USB.

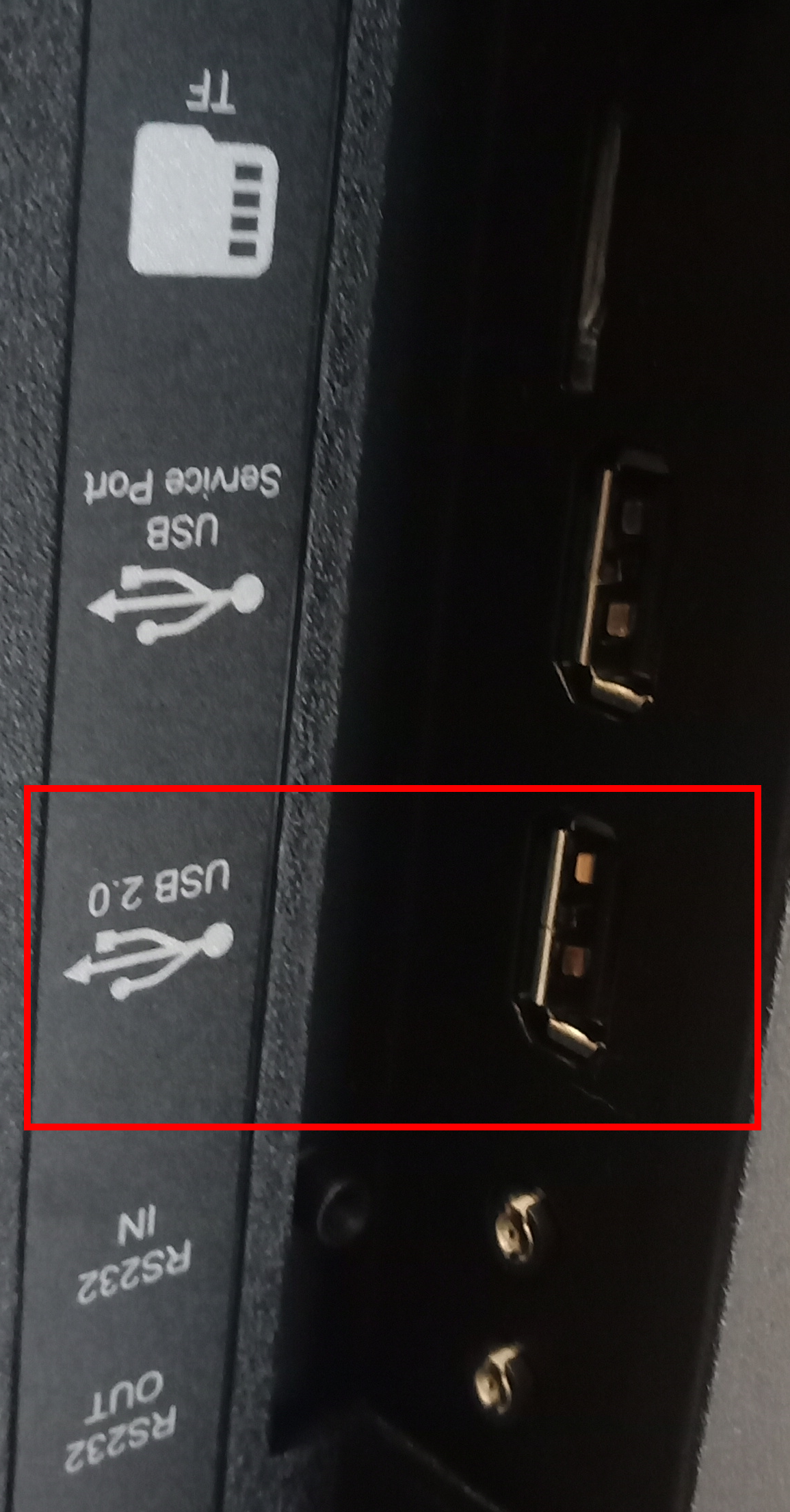

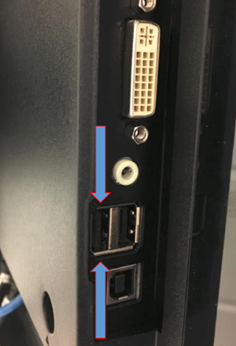

1. Insert USB drive to the rearmost USB port on the screen:


   65BDL4550D	55BDL3550Q




2. Enter Android Menu (Press: Home, 1, 8, 8, 8 [within 2 seconds])

3. Select Apps

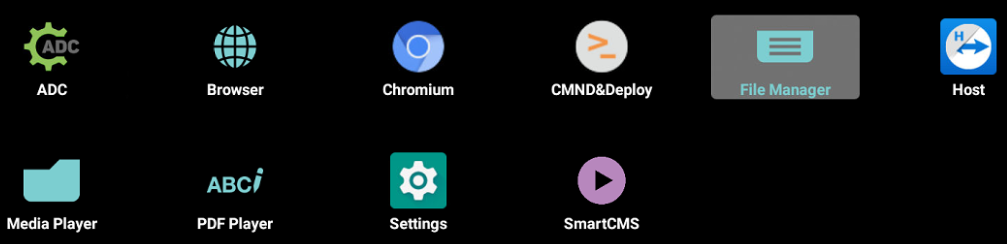

4. Select File Manager

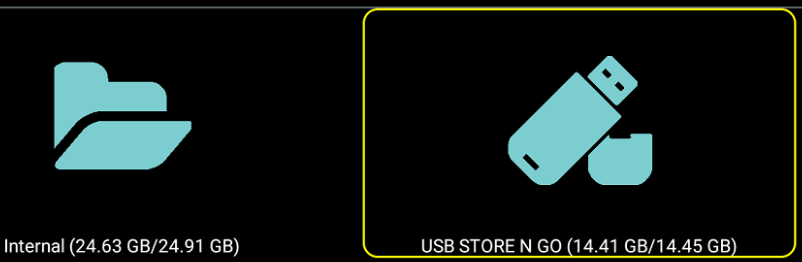

5. Select USB drive

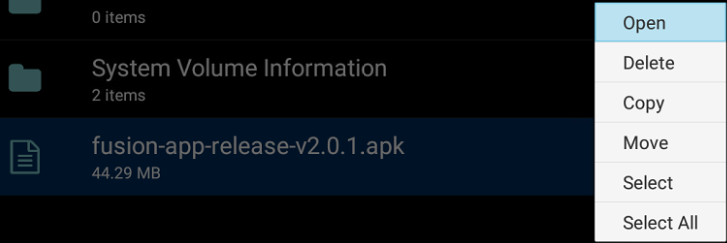

6. Select the Fusion Signage .apk file and press OK ⇾ select Open and press OK ⇾ Install

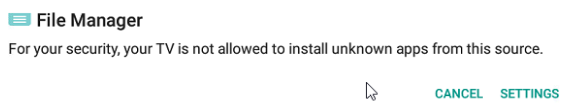

7. If the following message pops up, select Settings.

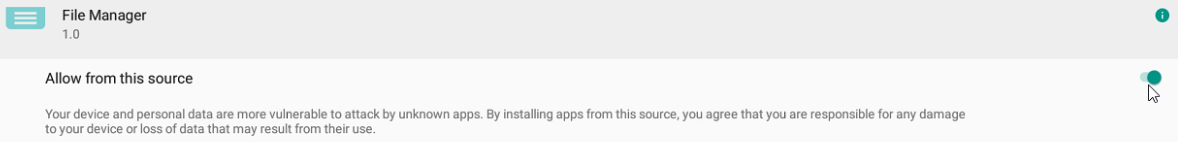

8. Set Allow from this source setting to On ⇾ press the BACK button to go back to the Fusion Signage installation screen.

9. Select Install to install Fusion and once installed, select Done.

10. Press the BACK on the RC several times if you wish to exit the Android menu completely.


Assign Fusion Signage as the "Custom" Input Source

1. Enter Android Menu (Press: Home, 1, 8, 8, 8 [within 2 seconds])

2. Navigate to Settings ⇾ Signage Display ⇾ Source Settings ⇾ Custom App ⇾ Select App ⇾ press OK

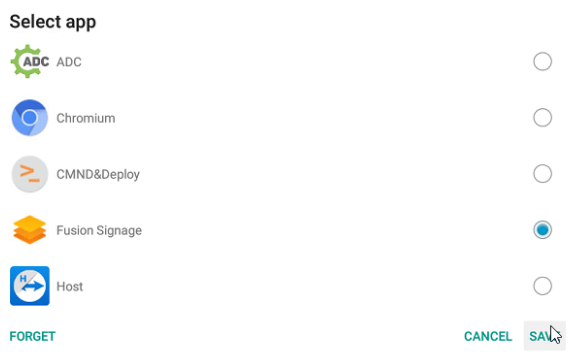

3. Select Fusion Signage from the popup list of apps, the select Save.

4. Press the Back button on the RC several times if you wish to exit the Android menu completely.

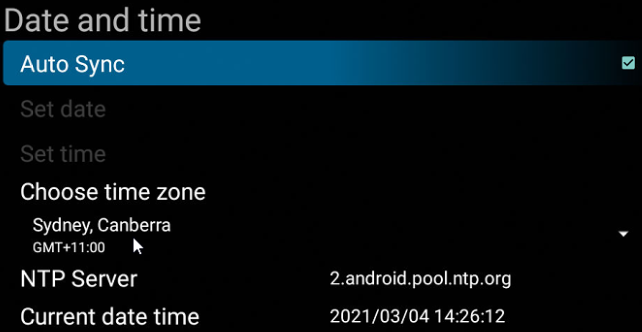

Set Date & Time

1. Press the Home button to access the screen menu

2. Navigate to Advanced option ⇾ Date and time, press OK

3. Ensure Auto Sync setting is ticket.

4. Select the correct time zone.



Configure Screen's Non-Android Settings

Set the screen to automatically turn on after an unplanned power outage:

1. Press the Home button to access the screen menu

2. Configuration 1 ⇾ Switch on state = Force On

3. Configuration 1 ⇾ Boot on source = Action, press OK ⇒ Input = Custom

4. Advanced option ⇾ Power Save = Mode 4

5. Advanced option ⇾ Off Timer = Off


1. Option 1 - Running Fusion Signage by Power OFF/ON screen to autoload app
   Once all the steps above have been action-ed, power off/on the screen with the remote control to complete the installation and auto-load the app.
2. Option 2 - Running Fusion Signage Using The Source Button
   Press the Source button
   Navigate to Custom ⇾ press OK
   Fusion should start, if it doesn't, review the steps above

Pairing Fusion Signage Screen

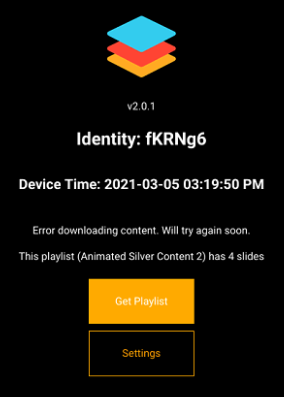

1. When you run the Fusion Signage app that hasn't been paired with an account, you'll see the following screen with the unique 'Identity' required to pair the screen.
   If the Identity value is blank, that means that Fusion Signage App can't reach the cloud server. Please confirm that your network connection is working and can access the internet.

2. Log into your Fusion Signage account


If you don't know your Fusion Signage account, please contact Westan technical team on +61 3 9541 8888 or drop us an email at support@westan.com.au

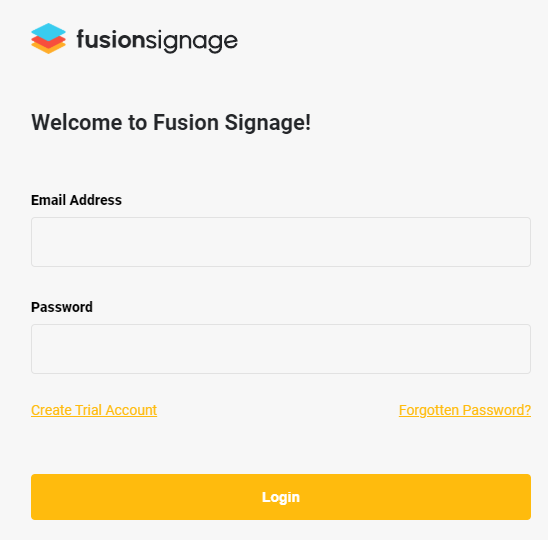

Open http://app.fusionsignage.com.au/ and login to your account

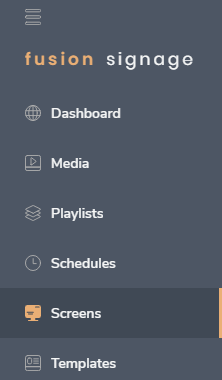

Click Screens

Add Screen to the account

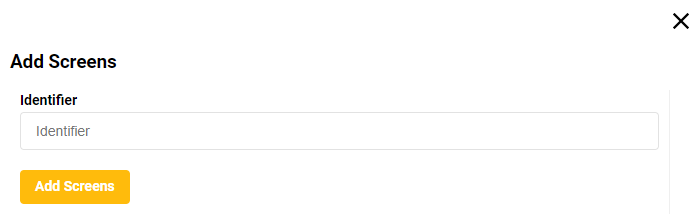

Click Add Screen (Top Right Corner)

Key In the Identifier from the screen and click Add Screens

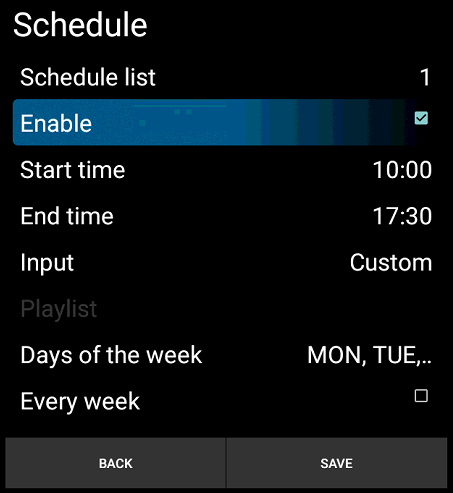

[OPTIONAL] Schedule screen to turn on and off automatically

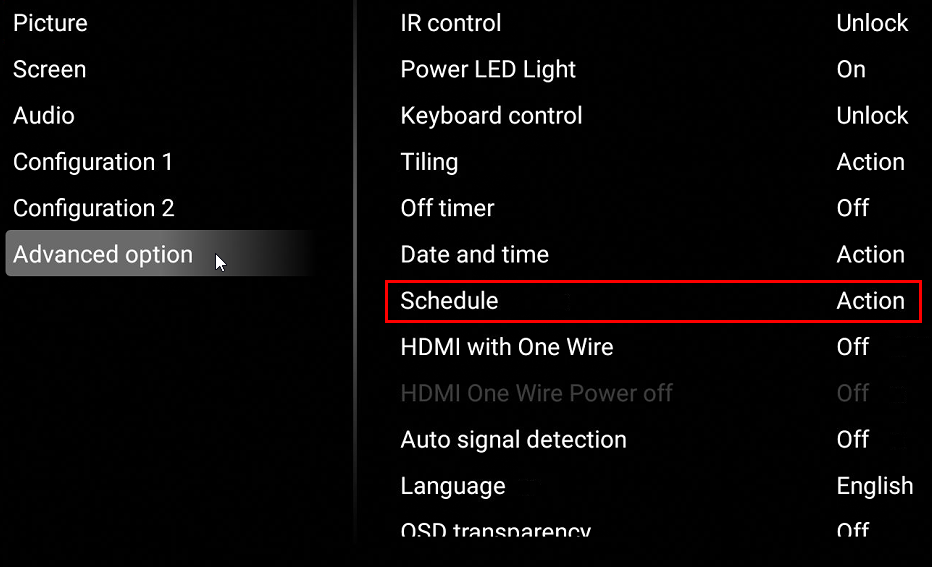

Home ⇾ Advanced Option ⇾ Schedule ⇾ Action
