BFL2x14 Fusion - How To Change Source
Configuration Check
Press MUTE-LEFT-RIGHT-UP-DOWN-OK (within 2 seconds to Open up the Professional Menu)
(see video here: https://support.westan.com.au/portal/kb/articles/22av1905a-mute-left-right-up-down-ok)

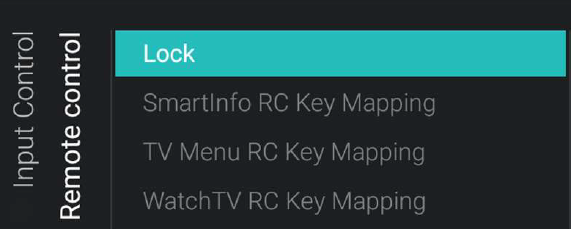

Navigate to [Input Control]-> [Remote Control] and ensure the following are set:
- "SmartInfo" RC Key Mapping -> Fusion Signage
- "TV Menu" RC Key Mapping -> Dashboard
- "Watch TV" RC Key Mapping - Set this to your preferred channel/source (eg. HDMI1)
Exit The Menu

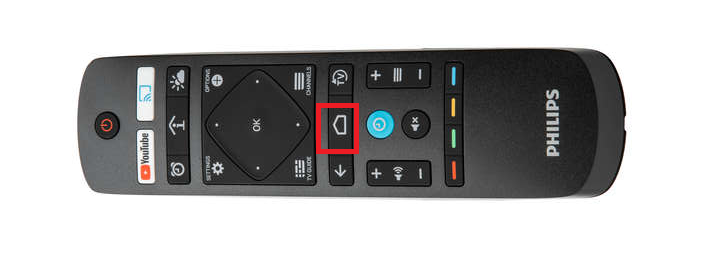

Changing Source To Fusion Signage

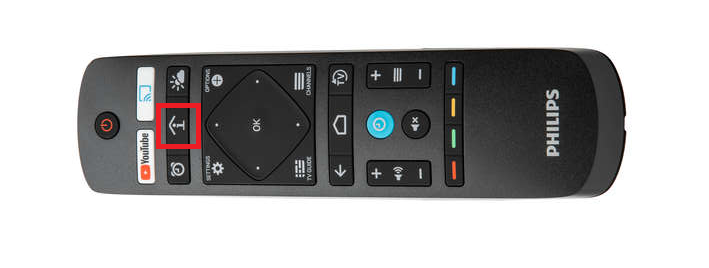

Changing Source to the preferred source (set on "Watch TV" RC Key Mapping above

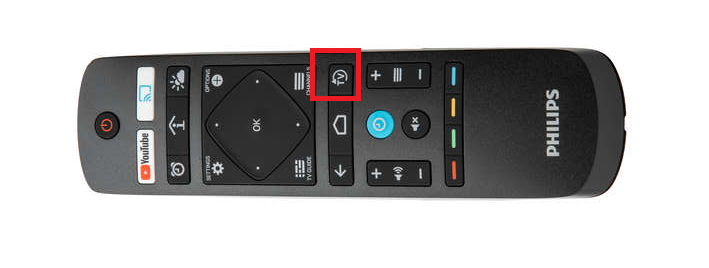

Changing source to other source (you need to select the source that you want to change to)
