FSMPv2 - Video Doesn't Appear on Aurora LED Screen
This is a known issue which is fixed with FSMPv2 11.0_20250519
Please update the FW to this update_fusion-11.0_20250519
To do the update:
FORMAT a USB Drive with FAT32
Download update.zip
Copy the update.zip file to the root directory of a USB Drive

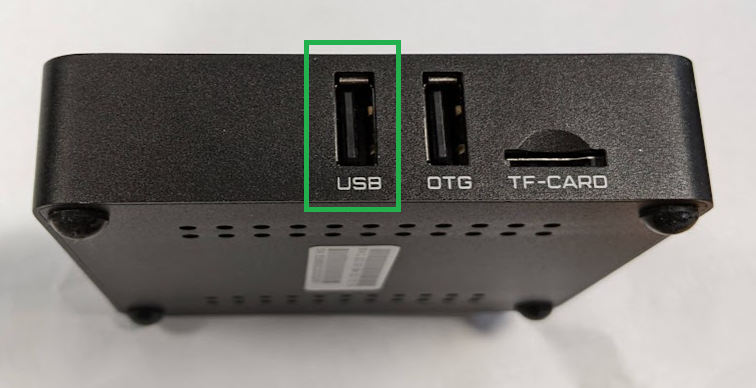

Insert USB into FSMPv2
The Device will recognize the update.zip in the USB, and prompt if you want to install it.
(to highlight “Install” SW update, I had to press down button on the FSMPv2 remote 3x when the prompt appear)
Press DOWN, DOWN, DOWN on the remote until the "Install" button is highlighted.
Then press OK to begin install
The FSMPv2 will reboot, remove the USB Drive when SW update is complete
Office Use Only:
#8089
