HFL5x14 HFL6x14 How to Export (Clone Out) and Import (Clone In) TV Configuration

HFL5x14 HFL6x14 How to Export (Clone Out) and Import (Clone In) TV Configuration

Clone Out

Insert a USB Formatted in FAT32, allocation=64kb

Enter Professional Menu

Remote with Digits: Press 3,1,9,7,5,3,mute within 2 second using your remote
Remote with no Digits: Press mute, left, right, up, down OK
Light Green Service Remote: Press RC6 Setup (top left area), then the double Cog Button (sandwiched between the 2 Home Button)

Clone Out from Professional Menu

Navigate to [Upgrade and Clone] -> [Clone TV to USB] -> [Clone All Except Apps]



Clone In - In an already configured TV

Insert the USB Drive with the master clone file in it. (created by the clone out procedure above)

Enter Professional Menu

Remote with Digits: Press 3,1,9,7,5,3,mute within 2 second using your remote
Remote with no Digits: Press mute, left, right, up, down OK
Light Green Service Remote: Press RC6 Setup (top left area), then the double Cog Button (sandwiched between the 2 Home Button)

Clone In from Professional Menu

Enter Professional Menu by pressing 3,1,9,7,5,3,mute within 2 second using your remote
Navigate to [Upgrade and Clone] -> [Clone USB to TV]



Clone In - In a TV that has never been configured before/just been reinstalled

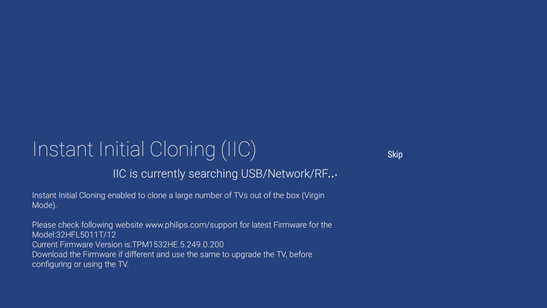

The first page that you see on a newly installed TV (or after a re-installation is initiated) is the Initial Installation Cloning page.


When the TV is showing this page, it will actively search for the USB Drive for 2 items:
- autorun.upg (normal software update file) - if the TV find the file and the software version is different, software upgrade will be carried out.
- clone folder - if the TV find the clone folder, clone in will be carried out automatically.

Insert Master Clone USB into the TV.
So, insert the master clone file (created by the clone out procedure above) before or during the IIC page (with and without the autorun.upg) and clone in will be done automatically (if autorun.upg is also available, software update will be carried out first, then clone in)




Professional Mode sequence

Using old remote: 3,1,9,7,5,3,MUTE
Using new remote: mute, left, right, up, down, OK
