xxBDL4002H-4003H - Playing content from USB Drive

xxBDL4002H-4003H - Playing content from USB Drive

There are 2 ways to set up USB Autoplay on your screen. Autoplay & Playlist:

Auto play
The USB player will play automatically when inserting a USB/SD flash drive in the monitor.  If the monitor is on another source, it will automatically switch to the USB player and play the content from the USB/SD.

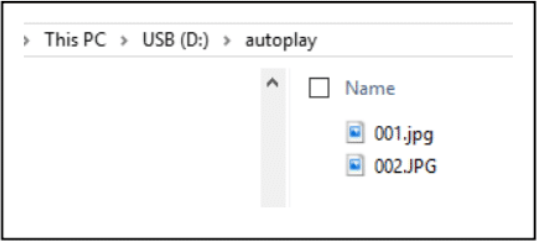

> Create a folder "autoplay" in the root of a USB drive (USB format: FAT, FAT32, EXT3 and EXT4)
> Copy your media files (.jpg & mp4) to this "autoplay" folder.


> Movies and photos can be mixed.

Set up Autoplay

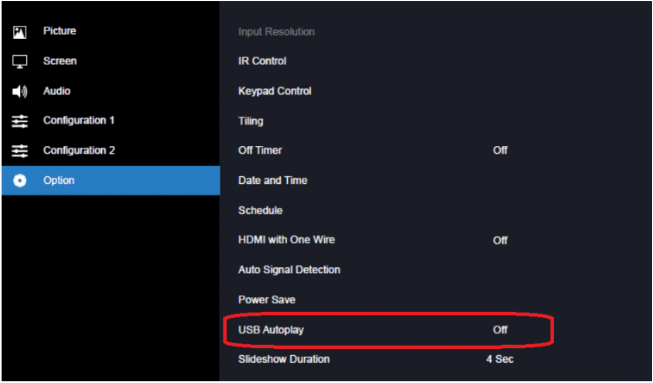

> Press the "Home" button on the remote control.
> Select "Option".
> On the right, select "USB Autoplay".
> Select "USB" or "SD".


> See attachment for Autoplay spec.

Boot mediaplayer on source

If you want the player start from powering on, set the boot on source to USB.

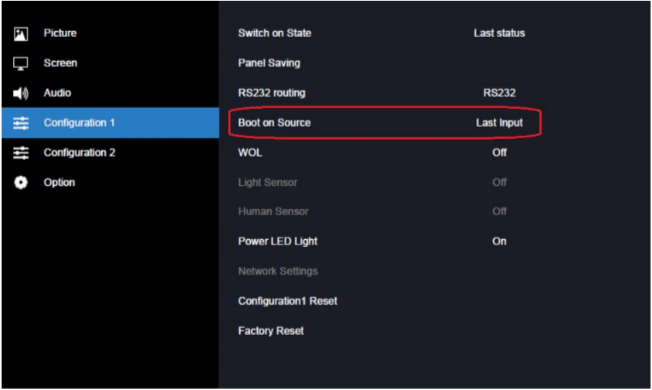

> Select "Configuration 1"
> On the right, select "Boot on source".
> Set to "MediaPlayer"


USB Playlist
> Make a folder "playlist1" on the USB flash drive.  Note: playlist1, playlist2...up to playlist7 are supported.
> Copy your .jpg and .mp4 files to your playlist folder.
> Insert the USB Flash drive in the monitor.
> Press the Home button, select "Option" in the menu.
> On the right, select "USB playlist" and select your playlist number and press OK.
> The monitor will start playing the content from the USB stick.
> Set the boot on source to MediaPlayer (USB) the monitor will start up and display the content from your USB playlist.
