xxBDL4051D (Dragon 1.6) - Fusion Quick Install From Android Clone File
Download the files and directory structure from the link below and put them into USB Drive (formatted with FAT32)
Insert the USB Drive as per the picture below
Quick Install From Android Clone File Procedure
Welcome - Choose English - Start
Signage Display Settings - Skip

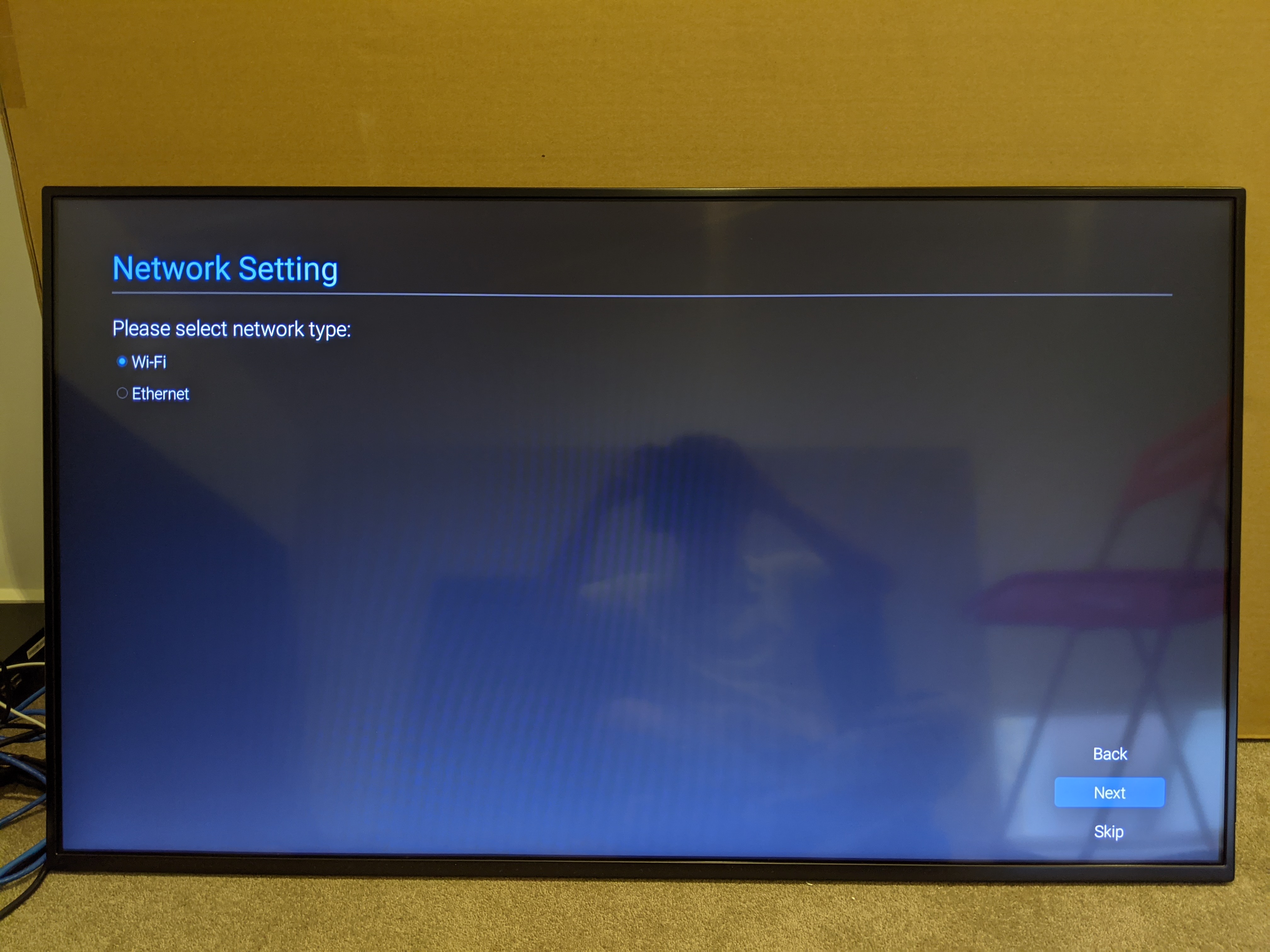

Network Setting - Select appropriate network type - Next
Clone Media Files into internal - Skip

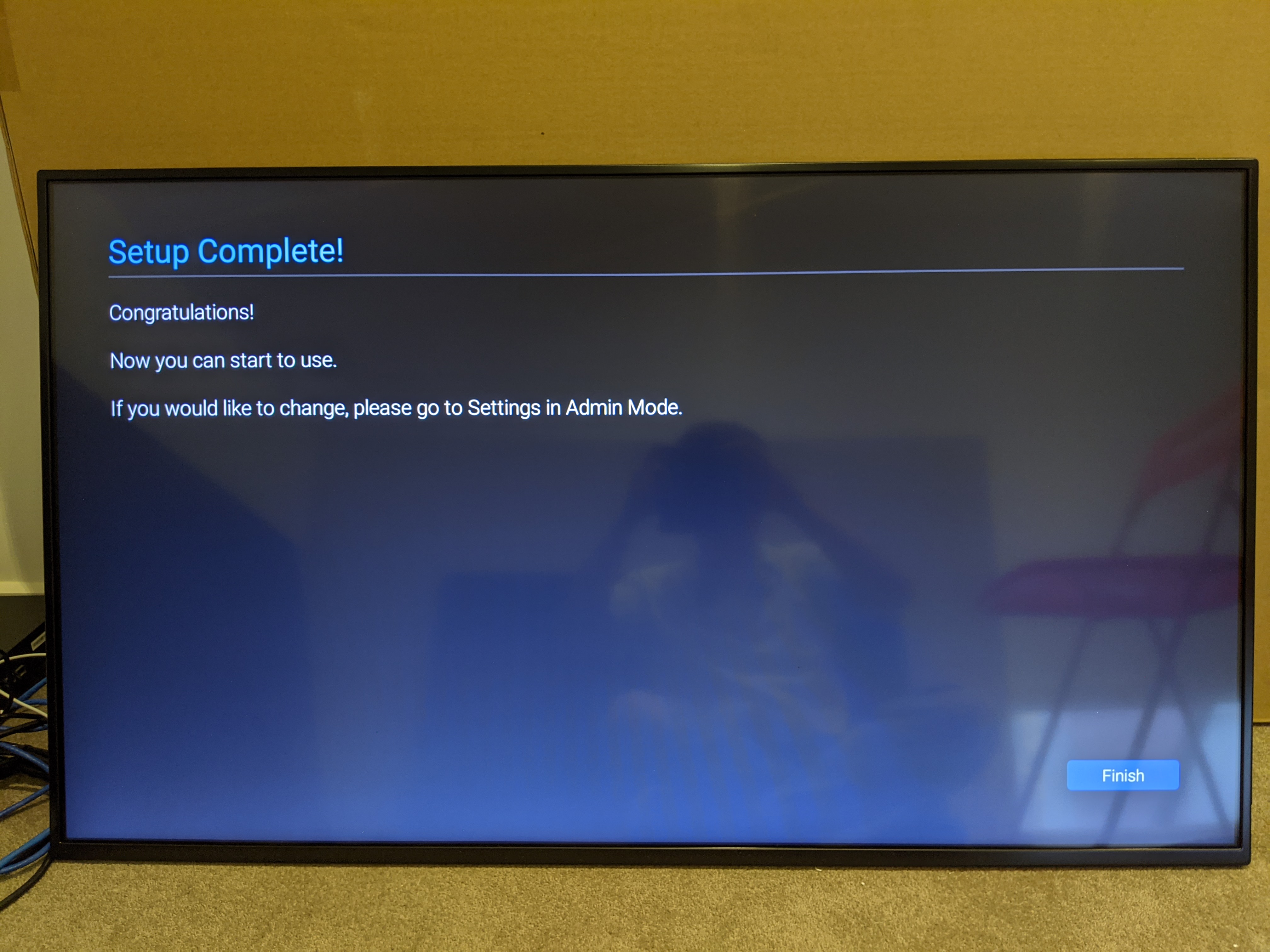

Setup Complete! - Finish
You'll see this screen now - ignore
Check To Confirm The Software Version match the Clone's Software version
Press remote "Info,7,7" to bring the Info page
Check if the Android FW version is 4051D_FB03.20
No - Update the Software first by following this article https://support.westan.com.au/portal/en-gb/kb/articles/bdl-dragon-1-6-xxbdl4051d-android-module-software-update
After the Software update has been done, you can continue to the next step
Yes - continue to the next step
Continue the rest of Fusion Quick Install From Android Clone File Steps
Press remote "Home,1,8,8,8" to go into Android Menu

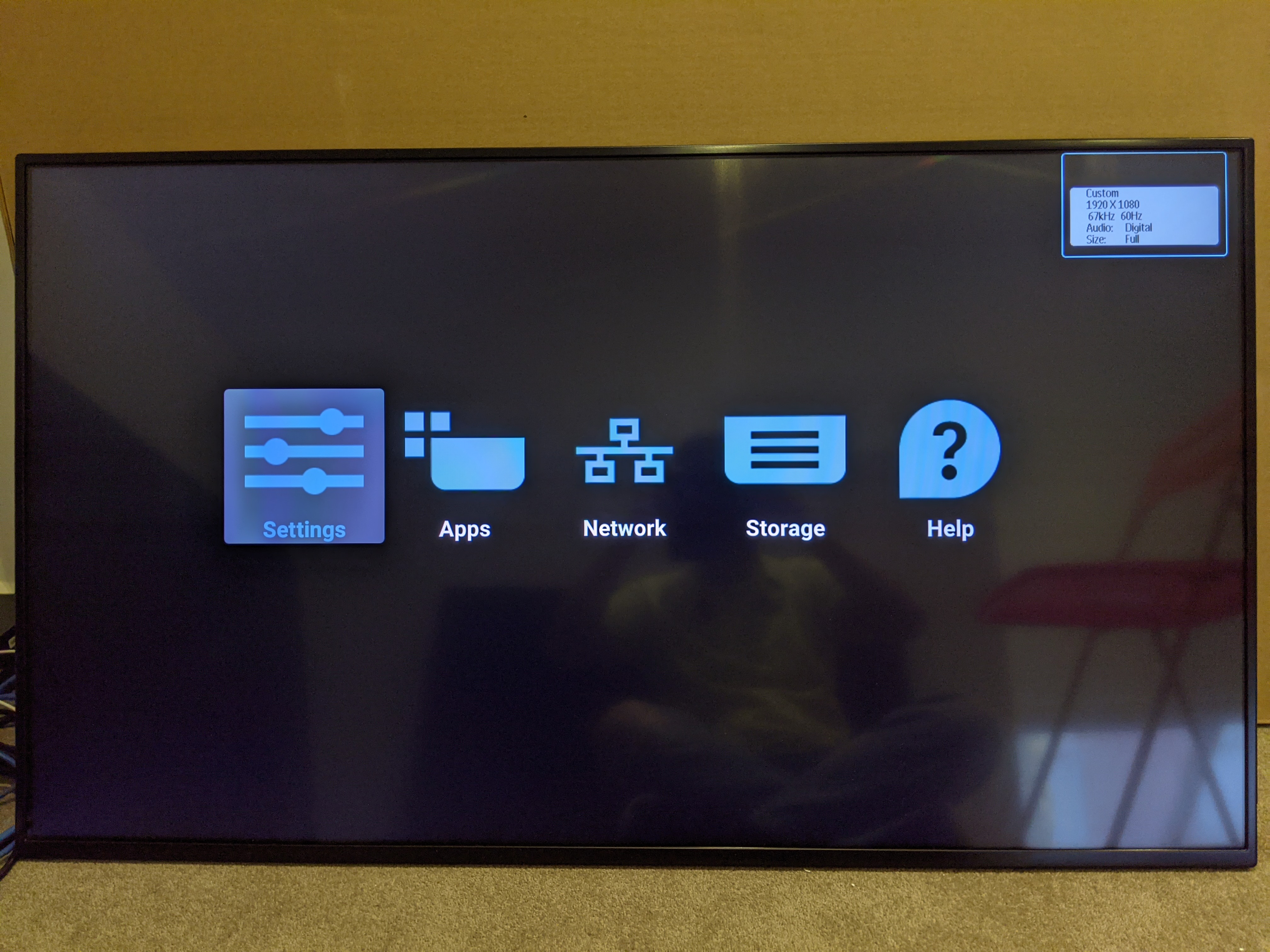

Choose Settings

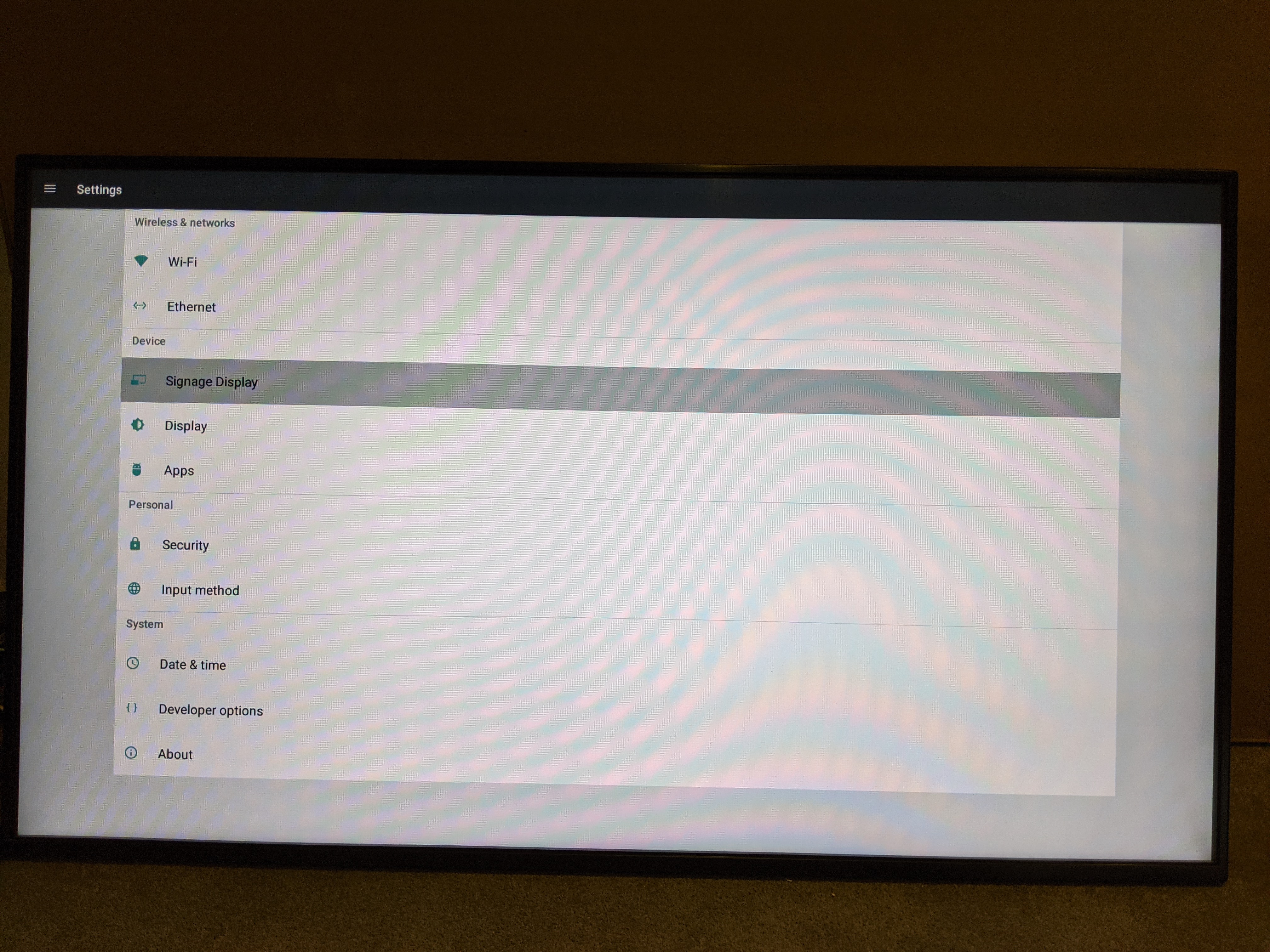

Choose Signage Display

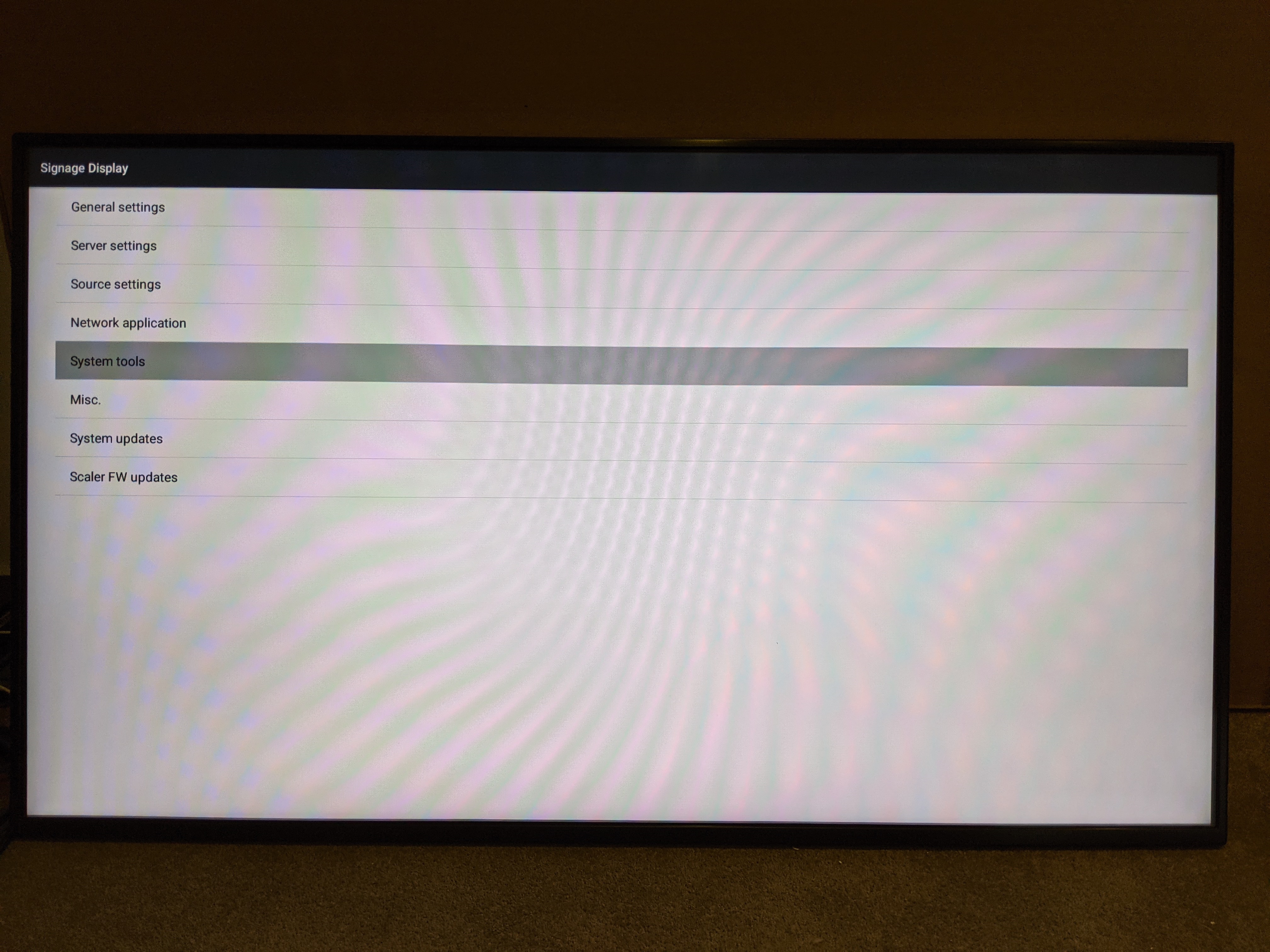

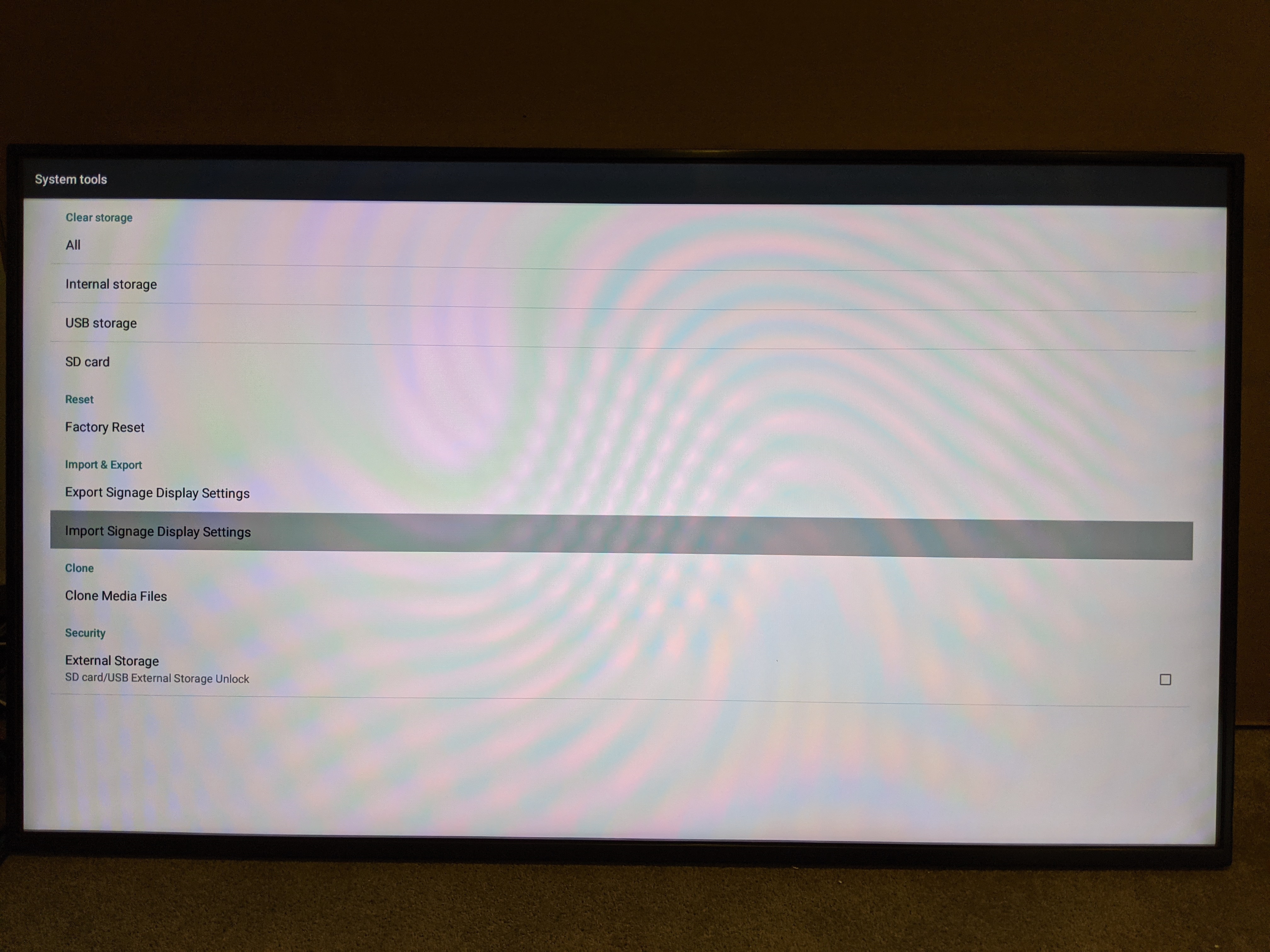

Choose System tools
Choose Import Signage display Settings

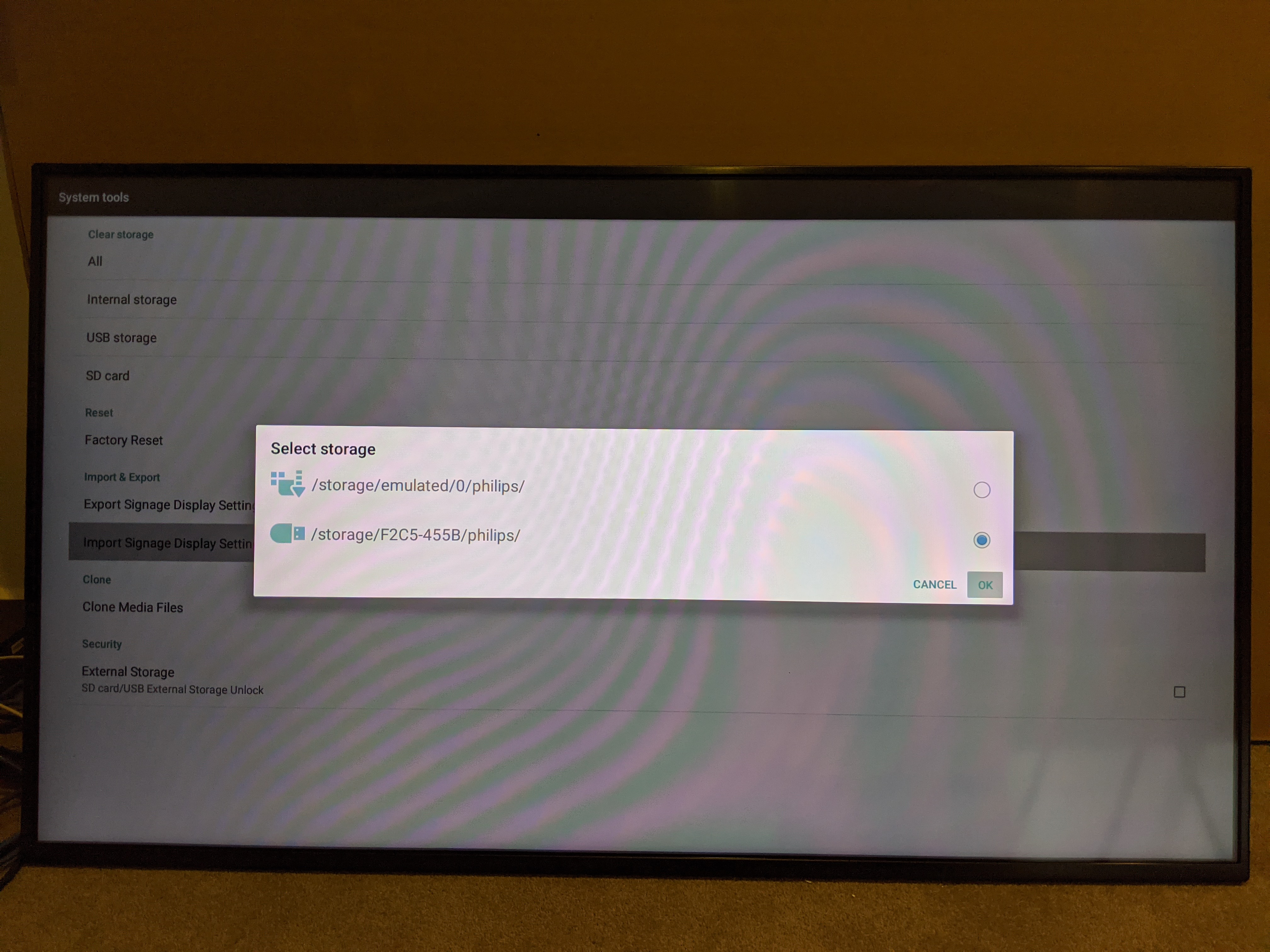

Select Storage - select the one with the USB Drive picture on it
Import Signage Display Settings - OK
Screen will begin importing clone file and reboot showing this on the screen
Configure the Scaler menu

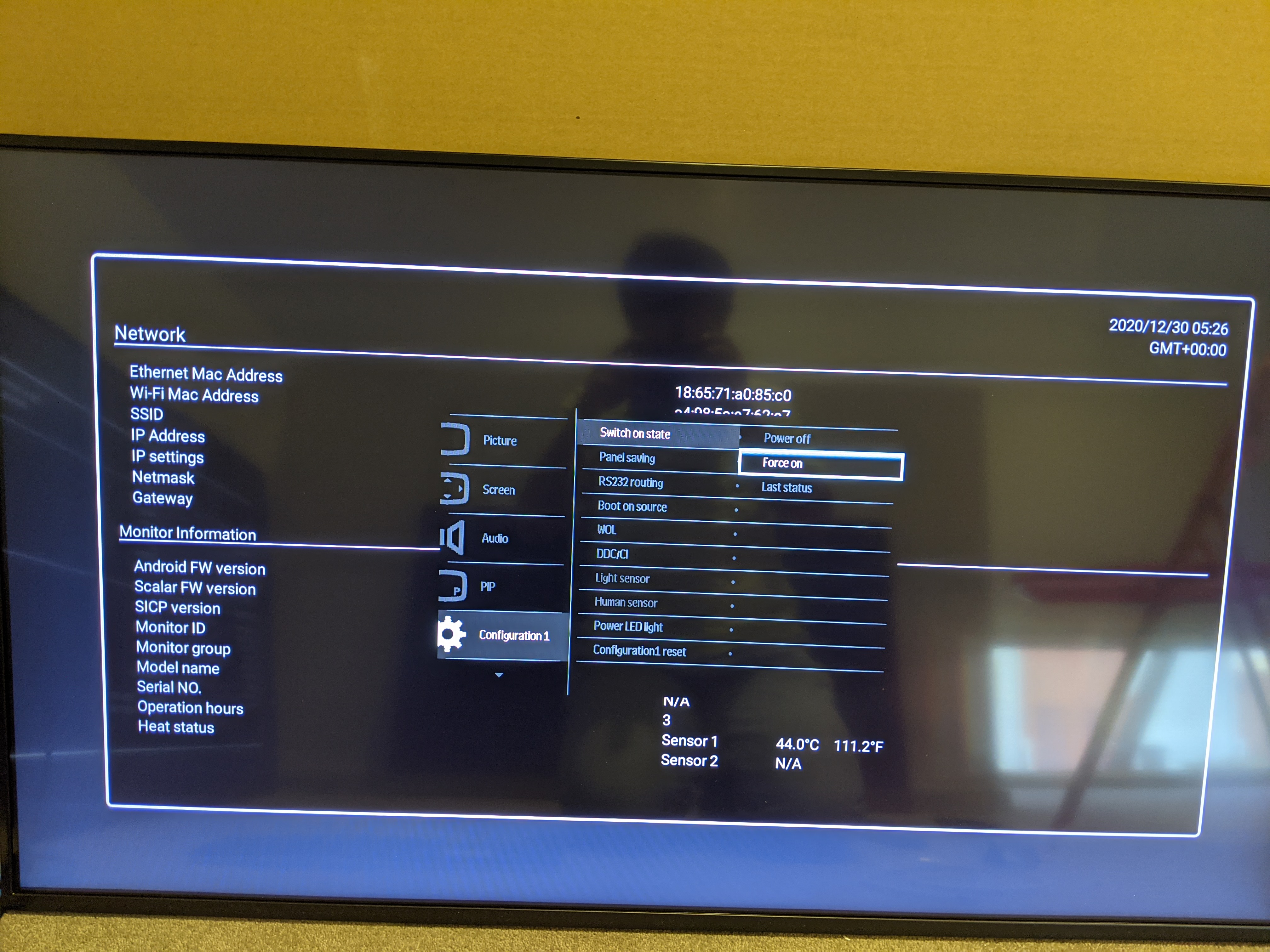

Set Home-> Configuration 1->Switch on state = Force On
Set Home->Configuration 1->Boot on source = Custom

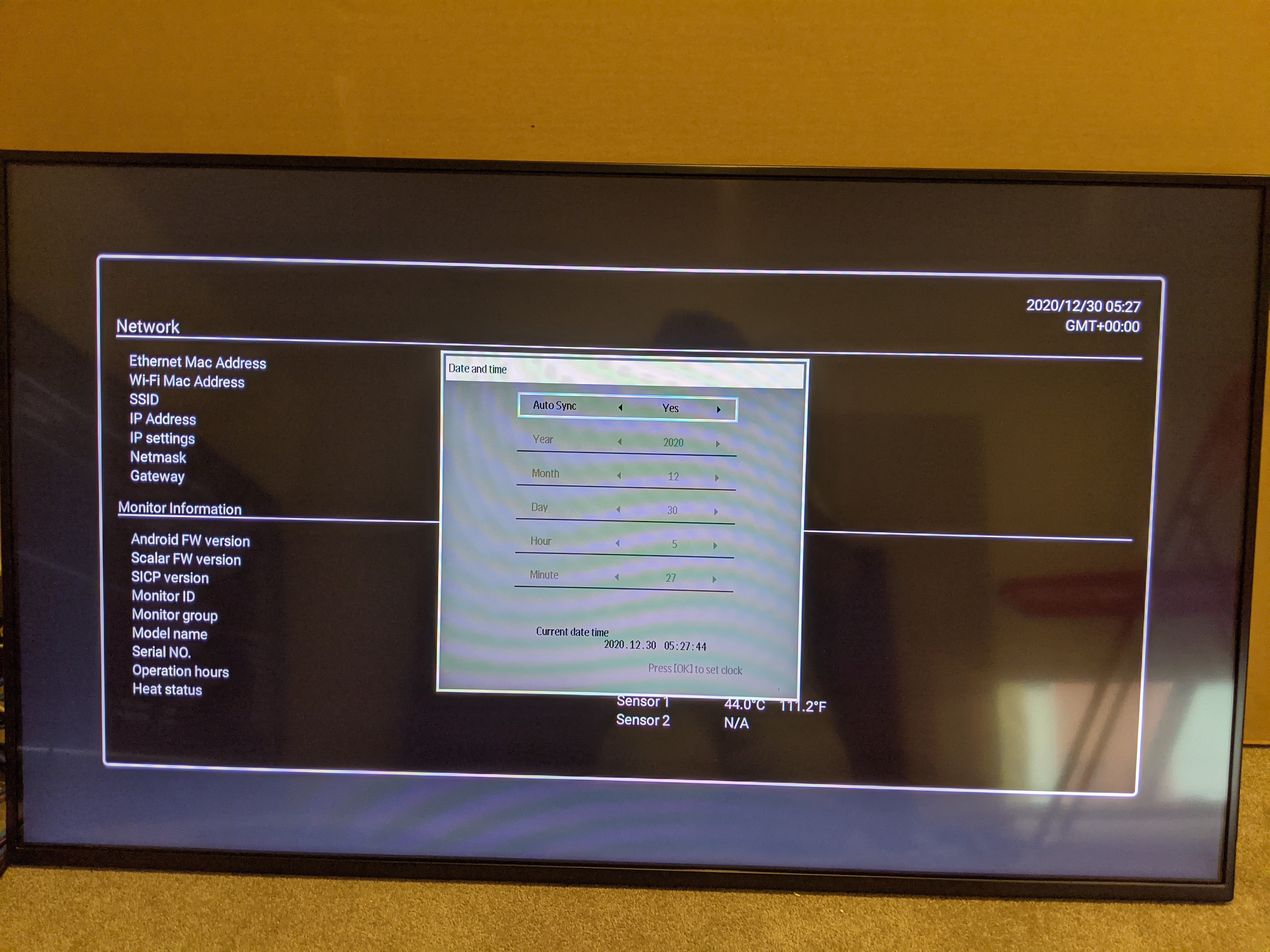

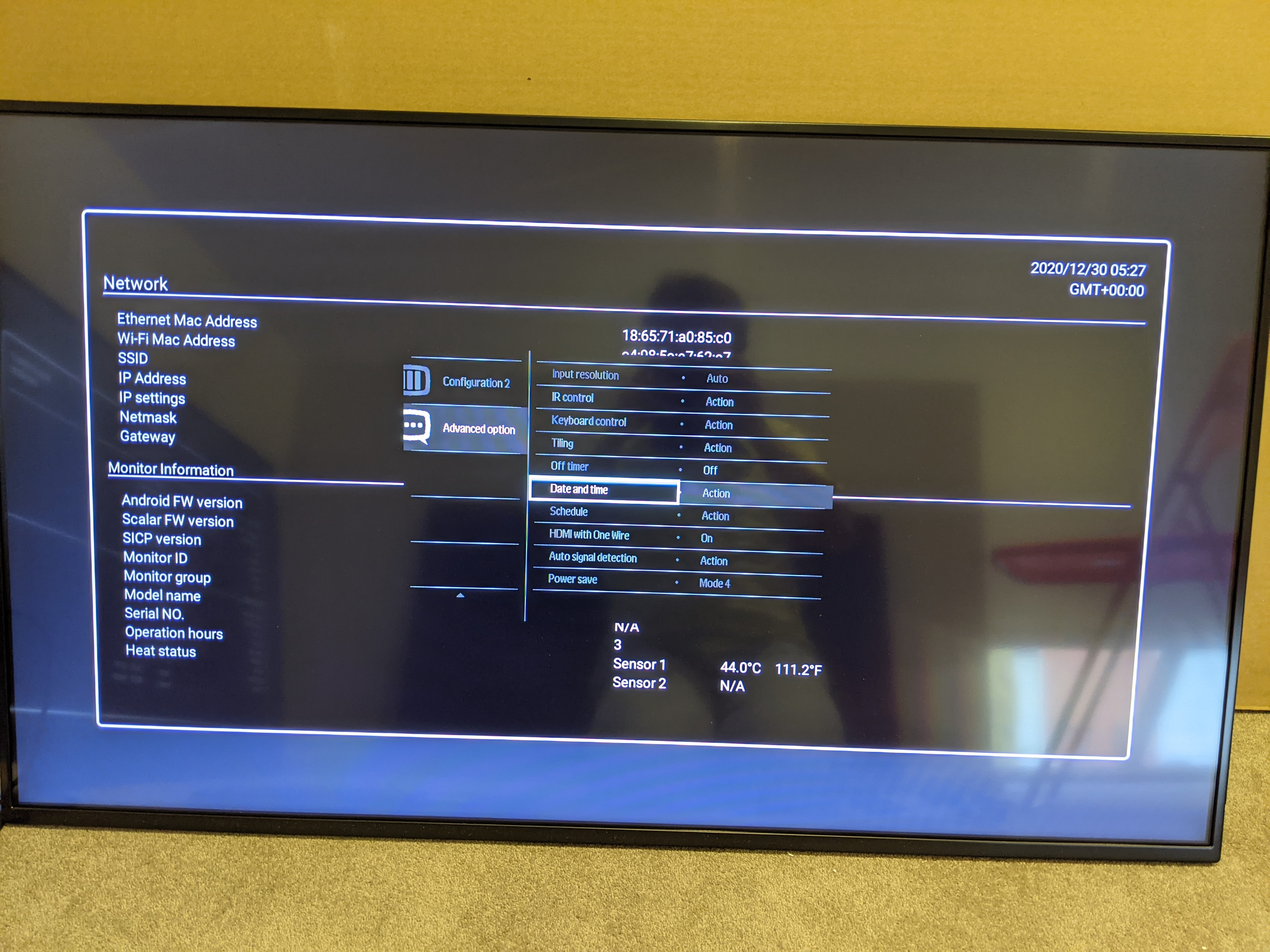

Set Home->Advanced Option->Date and Time - Auto Sync = Yes
Set Home->Advanced Option->Power Save - Mode 4
Pairing Fusion Signage Screen

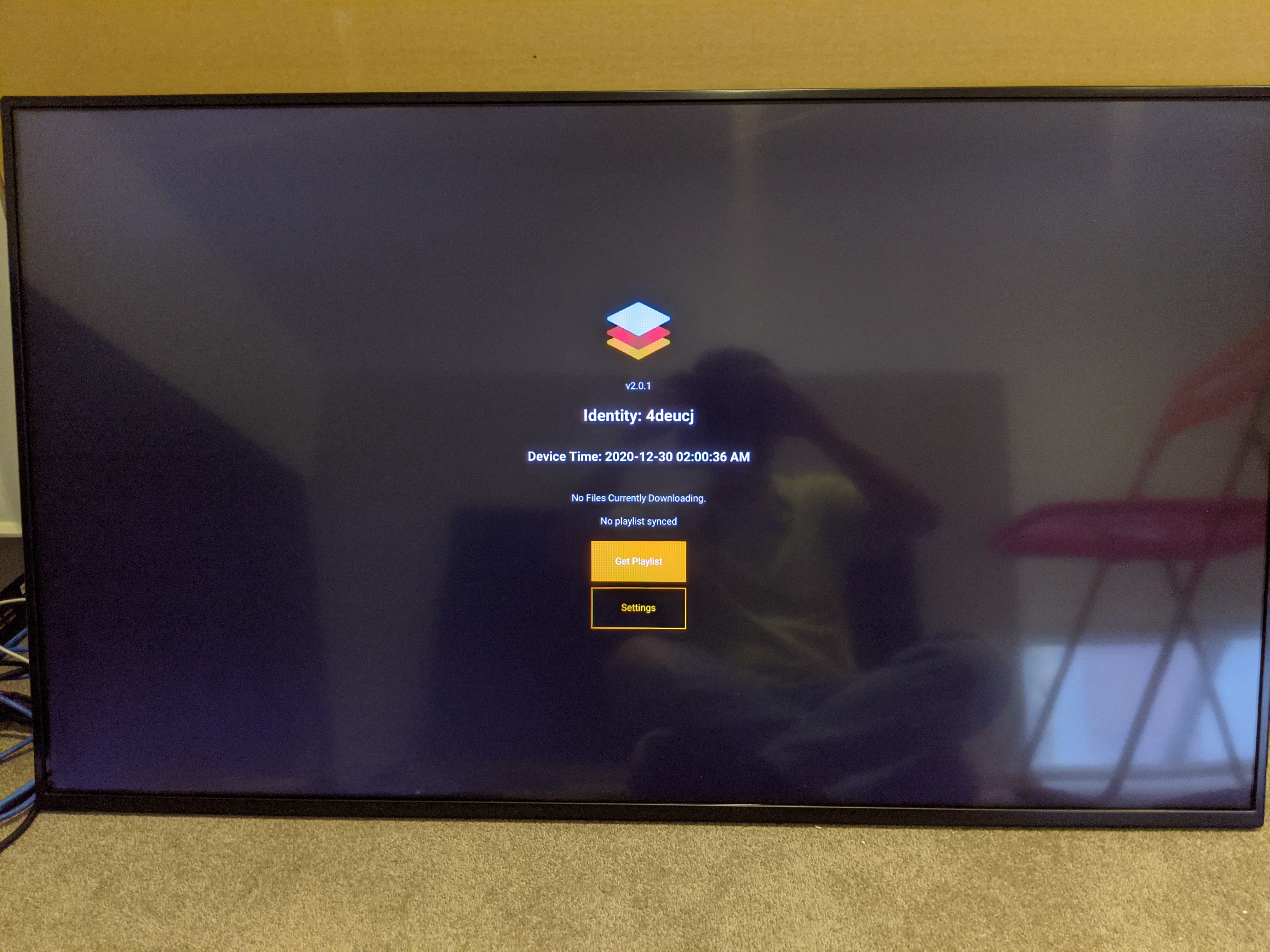

When you run Fusion Signage app that hasn't been paired with an account, you'll see the following screen with the unique 'Identity' required to pair the screen.
If the Identity value is blank, that means that Fusion Signage App can't reach the cloud server. Please confirm that your network connection is working and can access the internet.

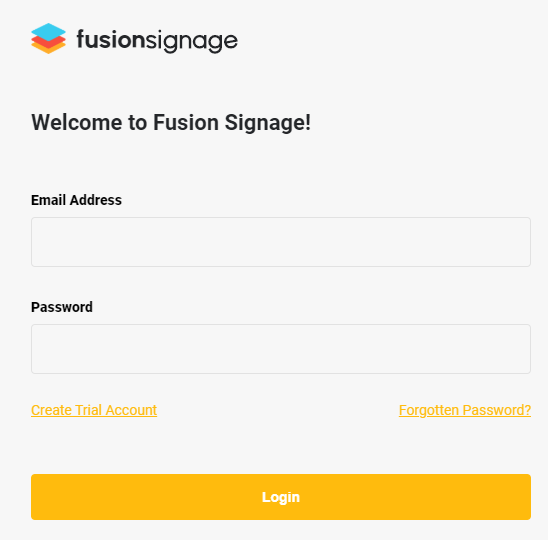

Log into your Fusion Signage account
If you don't know your Fusion Signage account, please contact Westan technical team on +61 3 9541 8888 or drop us an email at support@westan.com.au
Open http://http://app.fusionsignage.com.au/ and login to your account
Click Screens
Add Screen to the account
Click Add Screen (Top Right Corner)

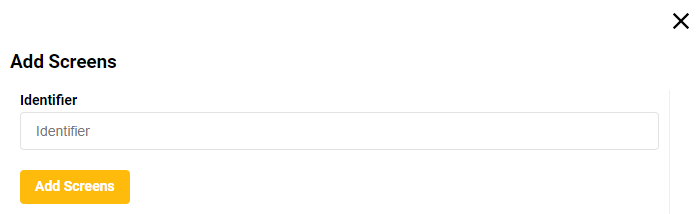

Key In the Identifier from the screen and click Add Screens
