xxBDLxx5xP How to set-up Wifi

xxBDLxx5xP How to set-up Wifi

Tested USB Wifi Dongle

USB Wifi dongle that has been tested to work with xxBDLxx5xP:

Type 1

Edimax EW-7722UTn V2
- Android SW need to be updated to FB07.07 version
- Check the current Android version by pressing Info,7,7 on your remote and check the Android SW version.
- Update SW as per the procedure in this article (but uses the SW downloaded above)

Type 2

TP-LINK Archer T4U RTL8812AU
TP-LINK Archer T4U v2 RTL8812AU
TP-LINK Archer T4UH RTL8812AU
TP-LINK Archer T4UH v2 RTL8812AU
TP-LINK Archer T4UHP RTL8812AU
- Android SW need to be updated to FB0707T.8812AU version
- Check the current Android version by pressing Info,7,7 on your remote and check the Android SW version.
- Update SW as per the procedure in this article (but uses the SW downloaded above)

Type 3

TP-LINK Archer T4U v3
ASUS AC-53
RTL88x2BU
- Android SW need to be updated to FB0707T.RTL88x2 version
- Check the current Android version by pressing Info,7,7 on your remote and check the Android SW version.
- Update SW as per the procedure in this article (but uses the SW downloaded above)

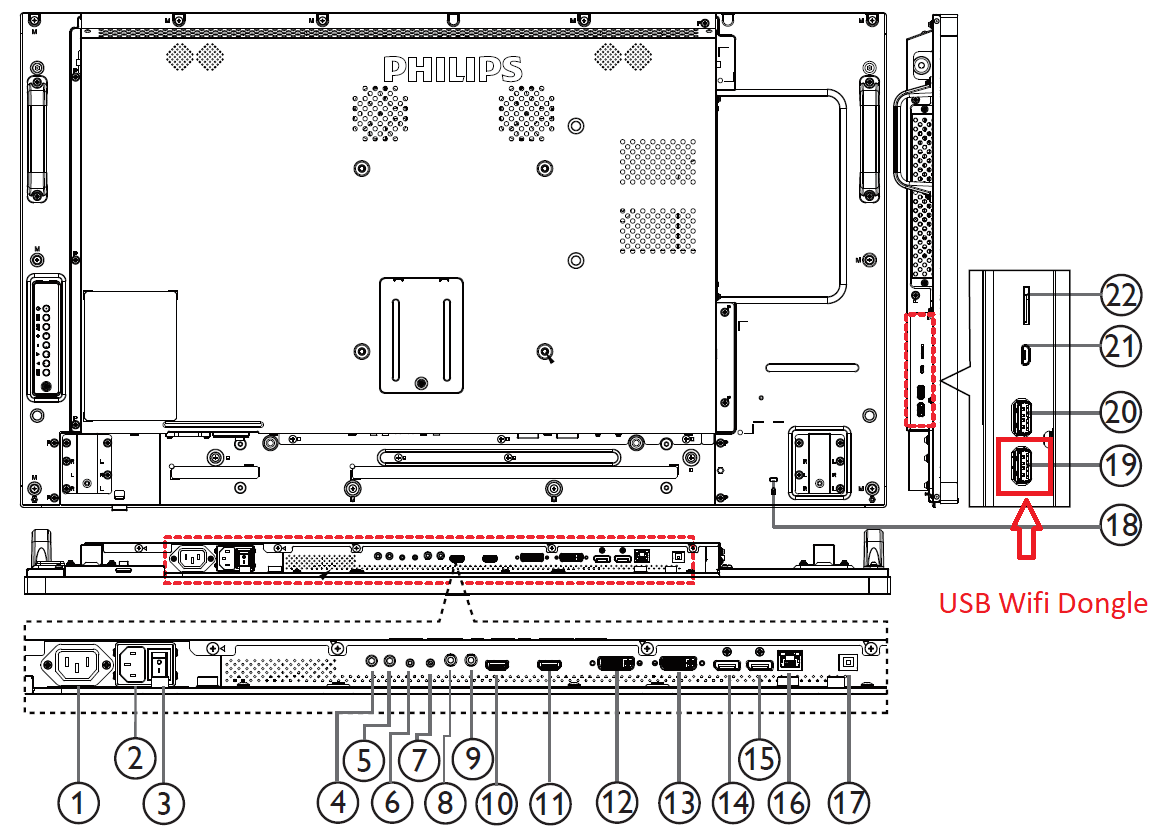

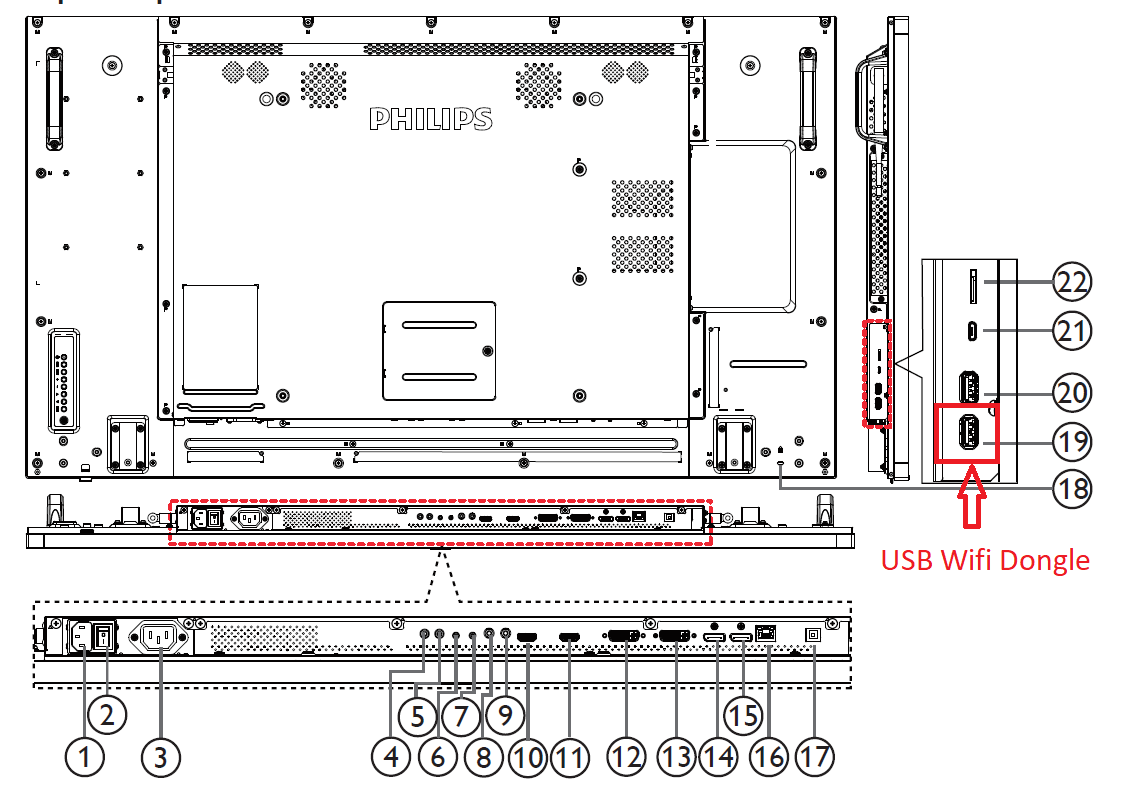

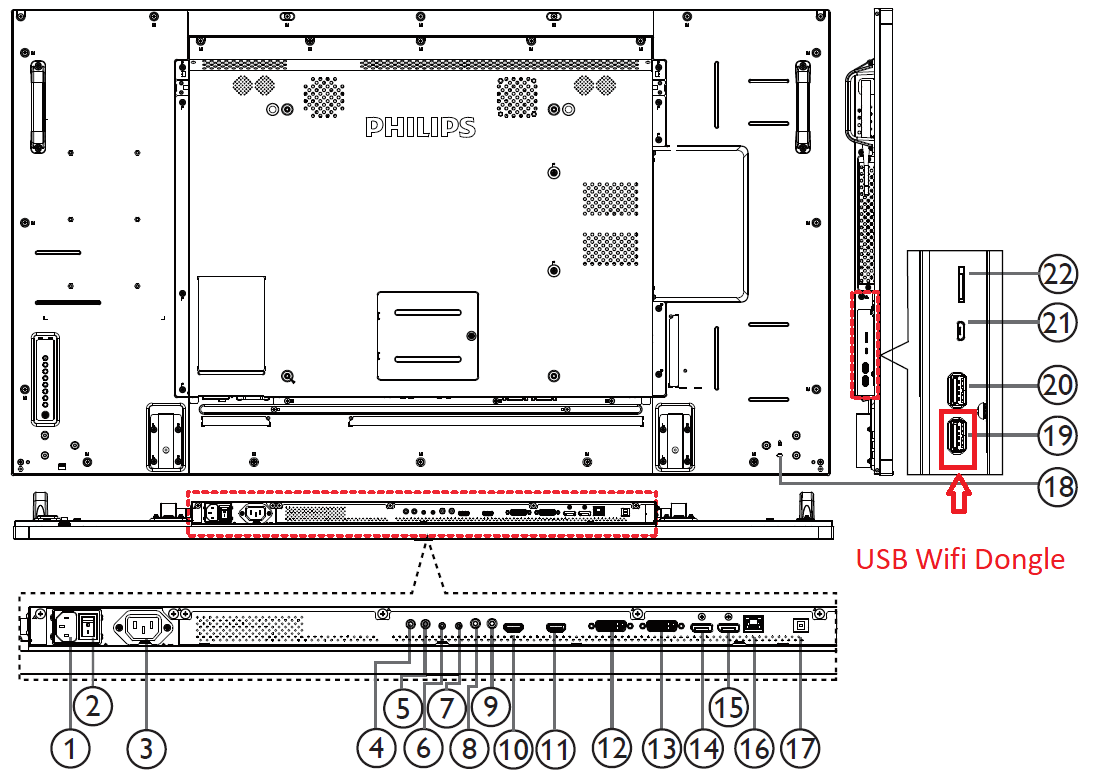

Insert the USB Wifi Dongle to the USB port


42BDL505xP



49BDL505xP



55BDL50xP





Checking Network Connection

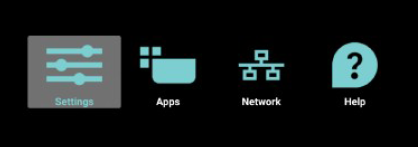

Press Home 1888 to get into the Android Menu

Select Network

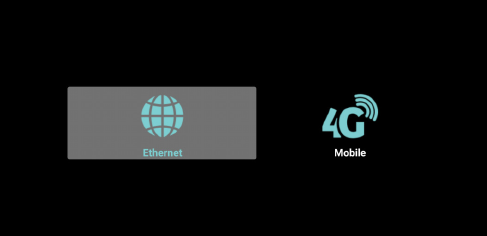

Choose the appropriate Network type
Ensure that it is enabled



Checking if you can access the Internet

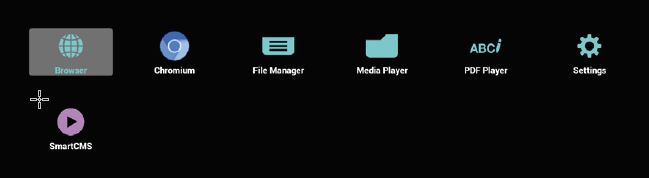

Press Home 1888 to get into the Android Menu


Choose Apps



Choose Chromium
Then enter a web page URL to test.
