xxHFL5009 xxHFL7009 xxHFL5010 Main board replacement

xxHFL5009 xxHFL7009 xxHFL5010 Main board replacement

Replace the main board

Press the following key sequence on the remote control transmitter:

“Menu/Home screen”,“1999”,“Back” button.

Do not allow the display to time out between entries while keying the sequence.



Common issue1: If the picture is upside down

Go To Factory Mode

Adjust the Flip Panel, turn it On or Off accordingly

(the picture will be flipped after a TV restart)



Common issue2: If the colour looks wrong/digitized

Go To Factory Mode

Set the Panel ID to the correct value

(Panel ID value can be found written on the back of the TV cover – 3 digits)

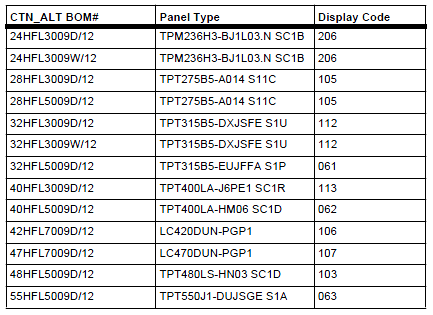

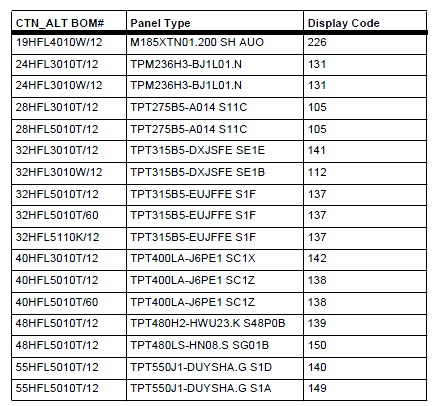

The following are the values:
