xxHFL5011 xxHFL7011 xxHFL7111 Multi RC Feature

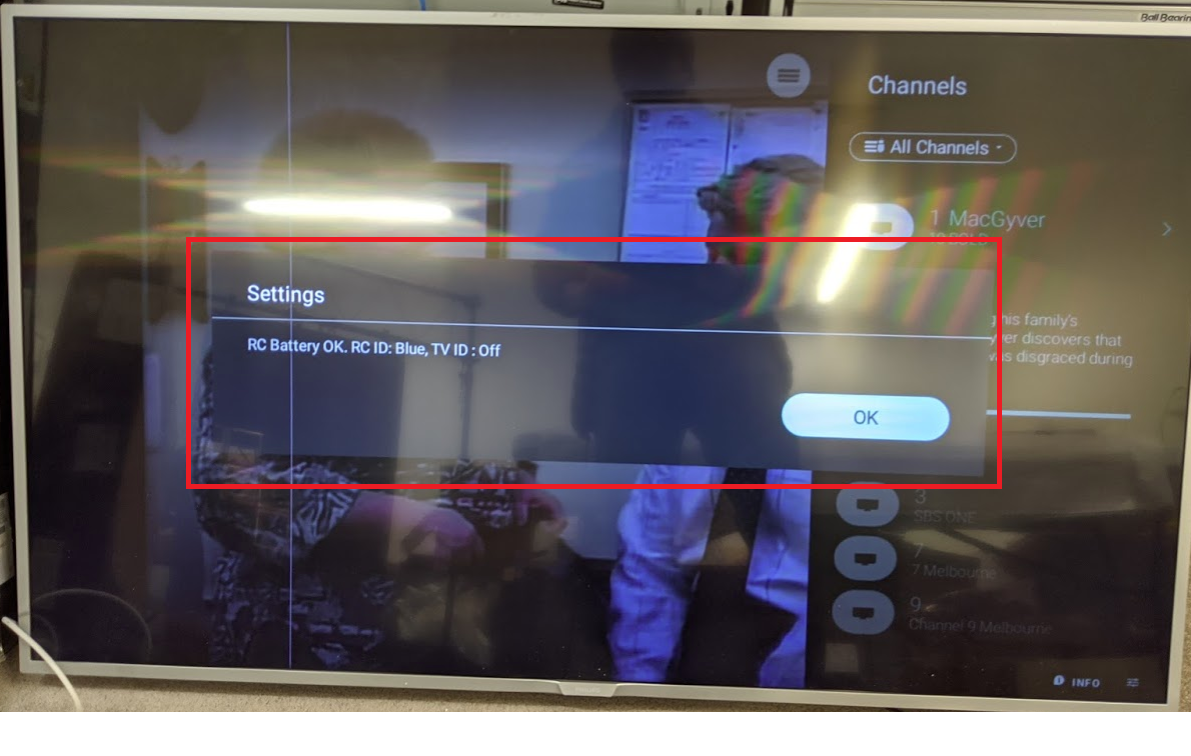

Checking the current mode on the remote and TV
Press
OK for 20 seconds
Setting the TV to a specific remote mode.
Go to professional menu.
Go to Features->Multi Remote control, set which mode do you want to set the TV to

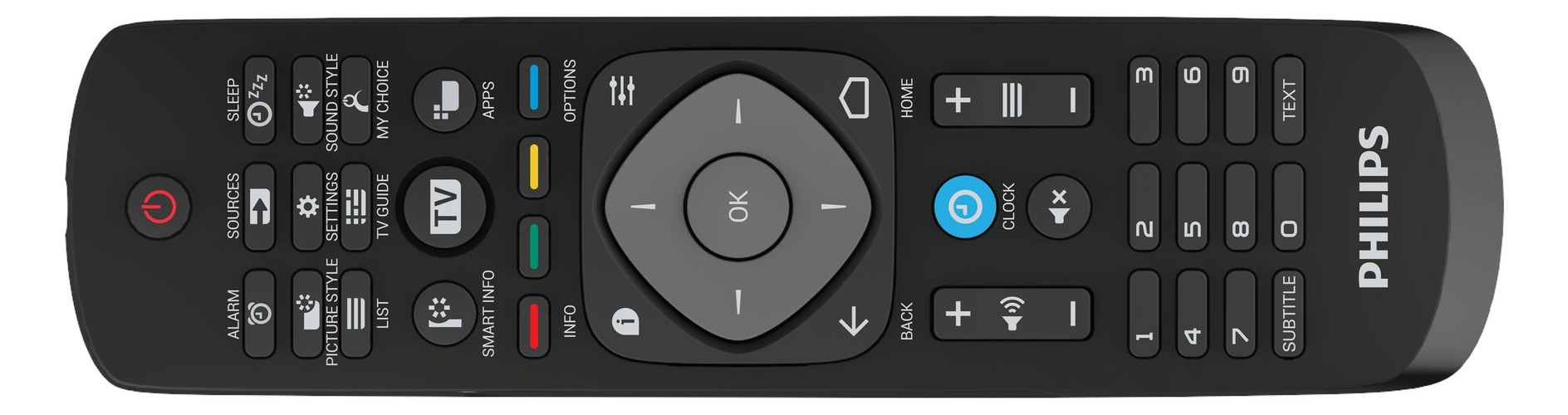

Setting the remote to a specific remote mode (22AV1505B type remote)
Below you can find a table how to match the TV settings and the settings as they can be used in the guest RC (you need to press those buttons for 20 seconds):
| Remote Mode |
Buttons Combination |
| Blue (default) |
“Home” and “blue” |
| Yellow |
“Home” and “yellow” |
| Red |
“Home” and “red” |
| Green |
“Home” and “green” |
| 0 |
“Home” and “0” |
| 1 |
“Home” and “1” |
| 2 |
“Home” and “2” |
| 3 |
“Home” and “3” |
| 4 |
“Home” and “4” |
| 5 |
“Home” and “5” |
| 6 |
“Home” and “6” |
| 7 |
“Home” and “7” |
| 8 |
“Home” and “8” |
| 9 |
“Home” and “9” |
