22AV1601B - Easy RC

22AV1601B - Easy RC

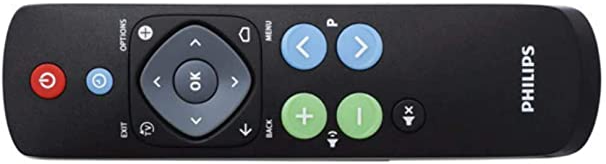

22AV1601B Picture



Changing RC5/RC6 Mode


Press 1st button first and hold, press 2nd button shortly after (within 0.5 seconds) and hold, release after 8 seconds to activate

RC6 (Default)            Mute + Channel Up
RC5                           Menu + Volume Up (RC5 IR Code is compatible with xxHFL28x9 models and not with xxHFL3011 set to IR RC5 models)

Changing Multi-RC modes


Press 1st button first and hold, press 2nd button shortly after (within 0.5 seconds) and hold, release after 8 seconds to activate

In RC6 Mode
Blue (Default)            Menu + Volume Down
Yellow                        Menu + Channel Down
Red                            Back + Volume Down
Green                        Back + Channel Down
00                              Menu + Clock
01                               Menu + Subtitle
02                              Menu + Arrow Up
03                              Menu + TV
04                              Menu + Arrow Left
05                              Menu + OK
06                              Menu + Arrow Right
07                              Menu + Back
08                              Menu + Arrow Down
09                              Menu + Mute

In RC5 Mode
Blue (Default)            Home + Volume Down
Yellow                        Home + Channel Down
Red                            Back + Volume Down
Green                        Back + Channel Down
