55BDL3305X Bezel Size

55BDL3305X Bezel Size

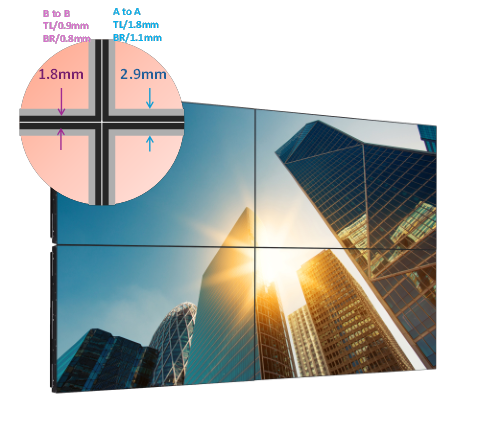

B to B in the diagram below shows the width of the 2 screen bezels next to each other when measured between the metal component of the bezel
 TL = 0.9mm means that the Top and Left hand side bezel (metal bezel) of a screen's width is 0.9mm
 BR = 0.8mm means that the Bottom and Right hand side bezel (metal bezel) of a screen's width is 0.8mm

A to A in the diagram below shows the width of the bezel + part of the panel which is not showing any content (ie. dark)
 This measurement is important because to the naked eye, it shows the dark part between the 2 screens.
 TL = 1.8mm means that the Top and Left hand side dark part (metal bezel + panel dark part) of a screen's width is 1.8mm
 BR = 1.1mm means that the Bottom and Right hand side dark part (metal bezel + panel dark part) of a screen's width is 1.1mm
