BDL3050S 3.0 - How do I see the bottom half of the 1080p content

BDL3050S 3.0 - How do I see the bottom half of the 1080p content

Overview

37BDL3050S resolution is 1920 x 540.
By default it only shows the top half of a 1920x1080 (1080p) source, including its built in android player.
When an app which has been designed for a 1080p screen is being installed and displayed, sometimes, important interaction that require users to see the bottom half of the screen is not shown.
This issue has been addressed in later 37BDL3050S' FW.

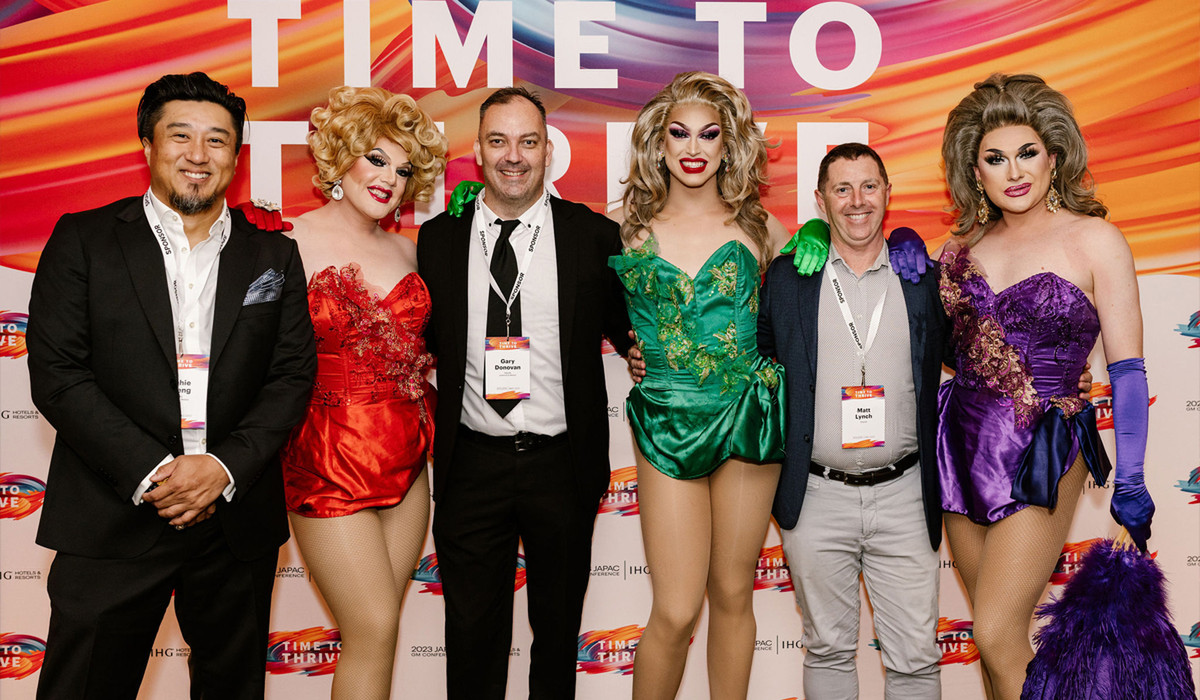

So an input like this

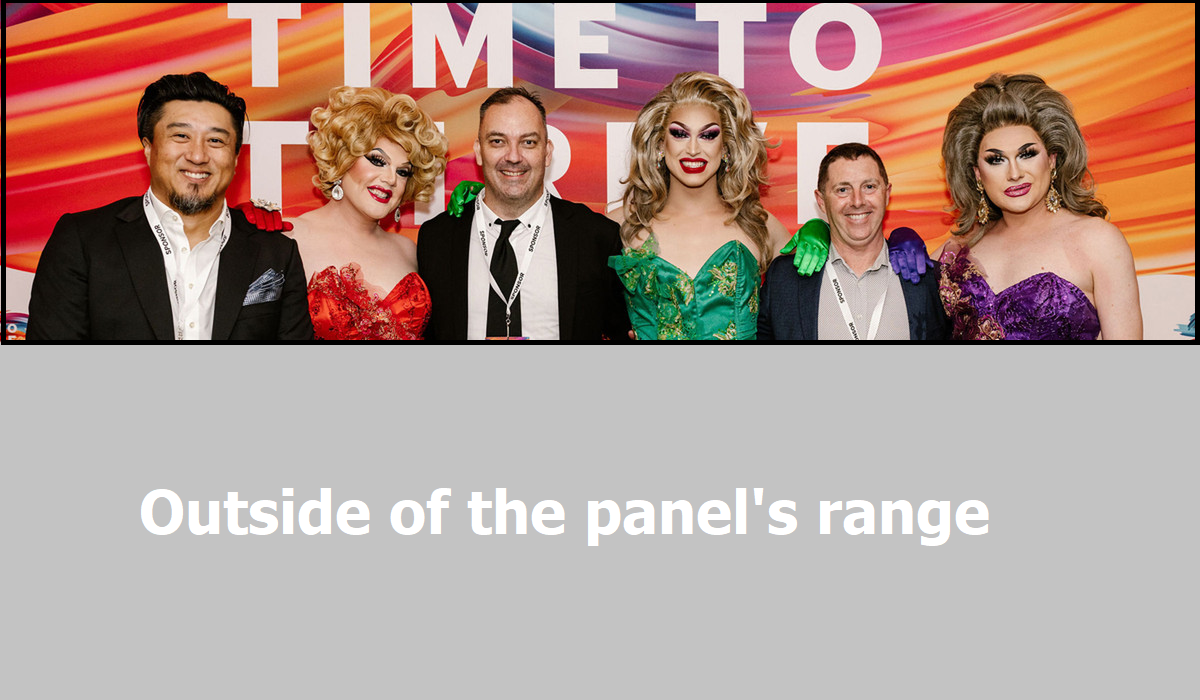

That would appear like this on the screen default setting

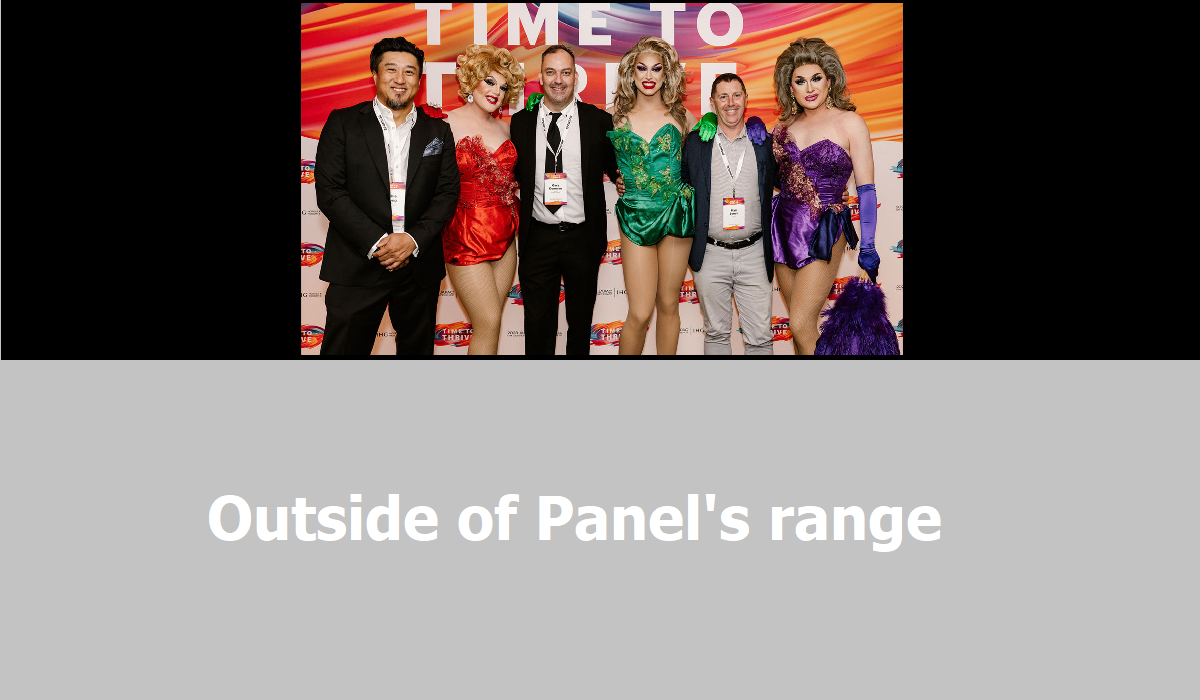

Can be adjusted to look like this


Check if the Screen is running the latest FW

Press info,7,7 on the remote control
The SW version need to be FB02.04 or later
If the SW version need to be updated, please follow the article below

Adjusting the Screen Stretch mode


Home->Advanced Option->Stretch mode
      // this setting allows you to adjust the video output on the screen to make it smaller and allow you to see the entire 1080p video, minimised
