BDL4550D - Clone Process for SmartSign Apk+ Wave for Liberty oil (JB Hi-fi) Including the Video Link
If you want to see the video of the process, here is the link : 20260225 BDL4550D Setup Video
Process:
Prepare USB Drive with the Clone content
Prepare USB flash drive formatted in FAT32 format (preferably 16 GB)

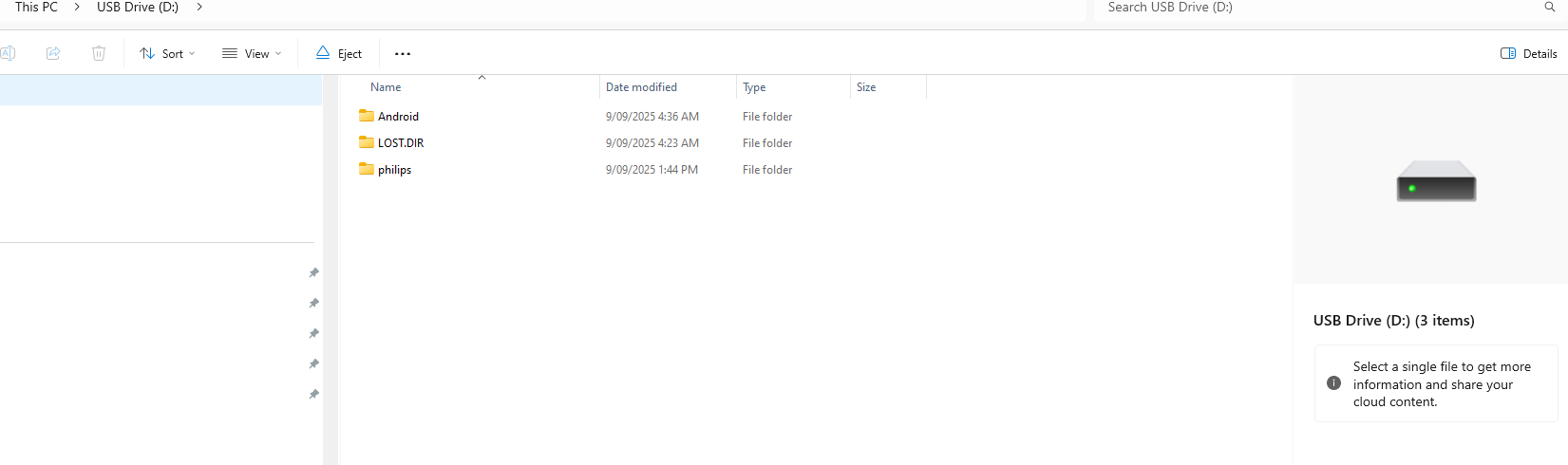

Download USB content from the link below:
Cloning Process
Connect Power
Connect Network Cable
Connect the USB to the screen
Click Start
Select "Clone media files from USB storage"
Select "Next", press OK
Select "Import Signage Display Settings from USB"
Select "Next", press OK
Click "Finish"
Wait for 4 minutes for the cloning to complete
How to Connect to the Wifi
Press Home Button, you will see a menu like :

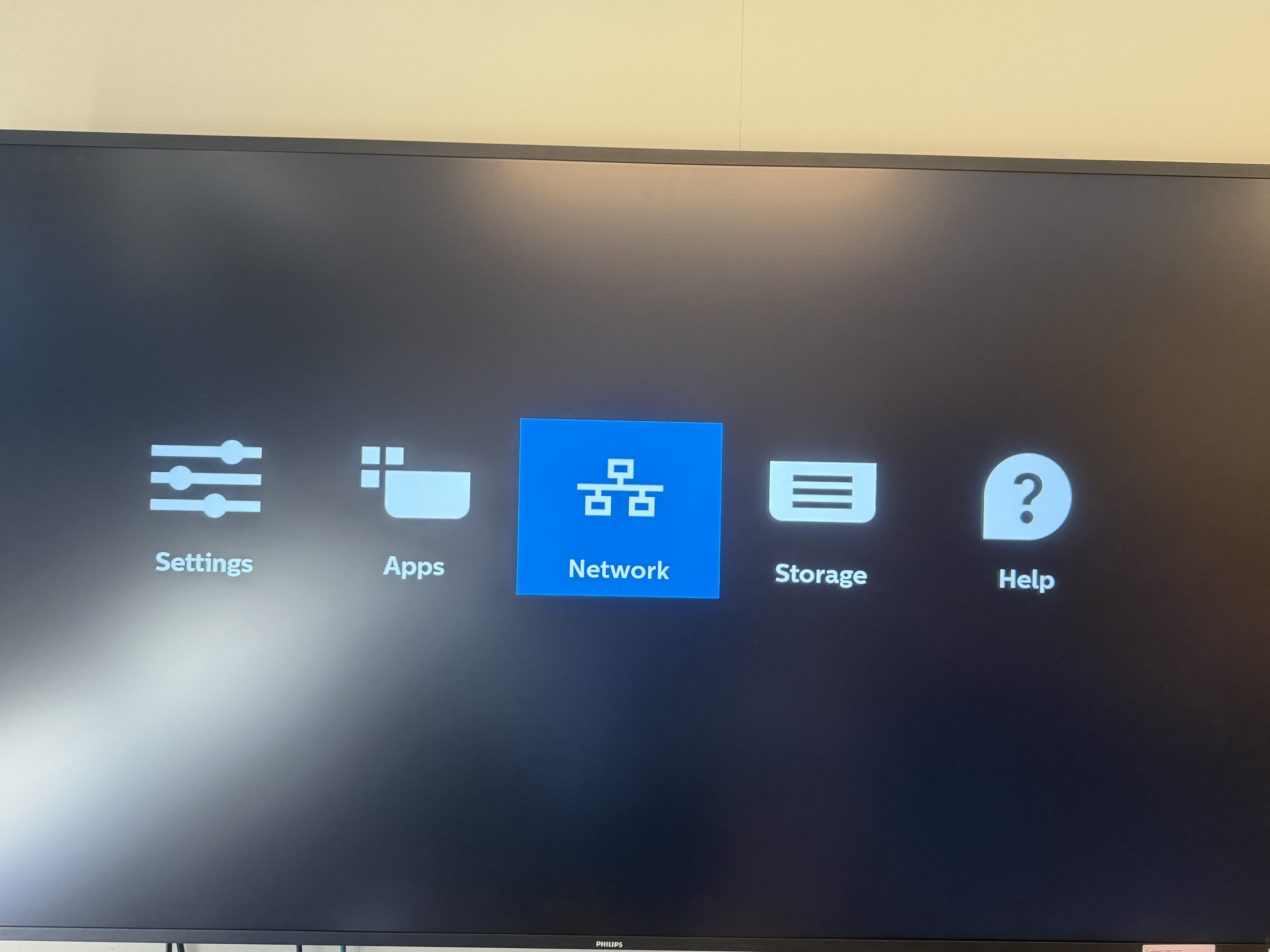

Press Home +1888 within 2-3 seconds from remote which will take to admin mode ( It will look like below, select Network)

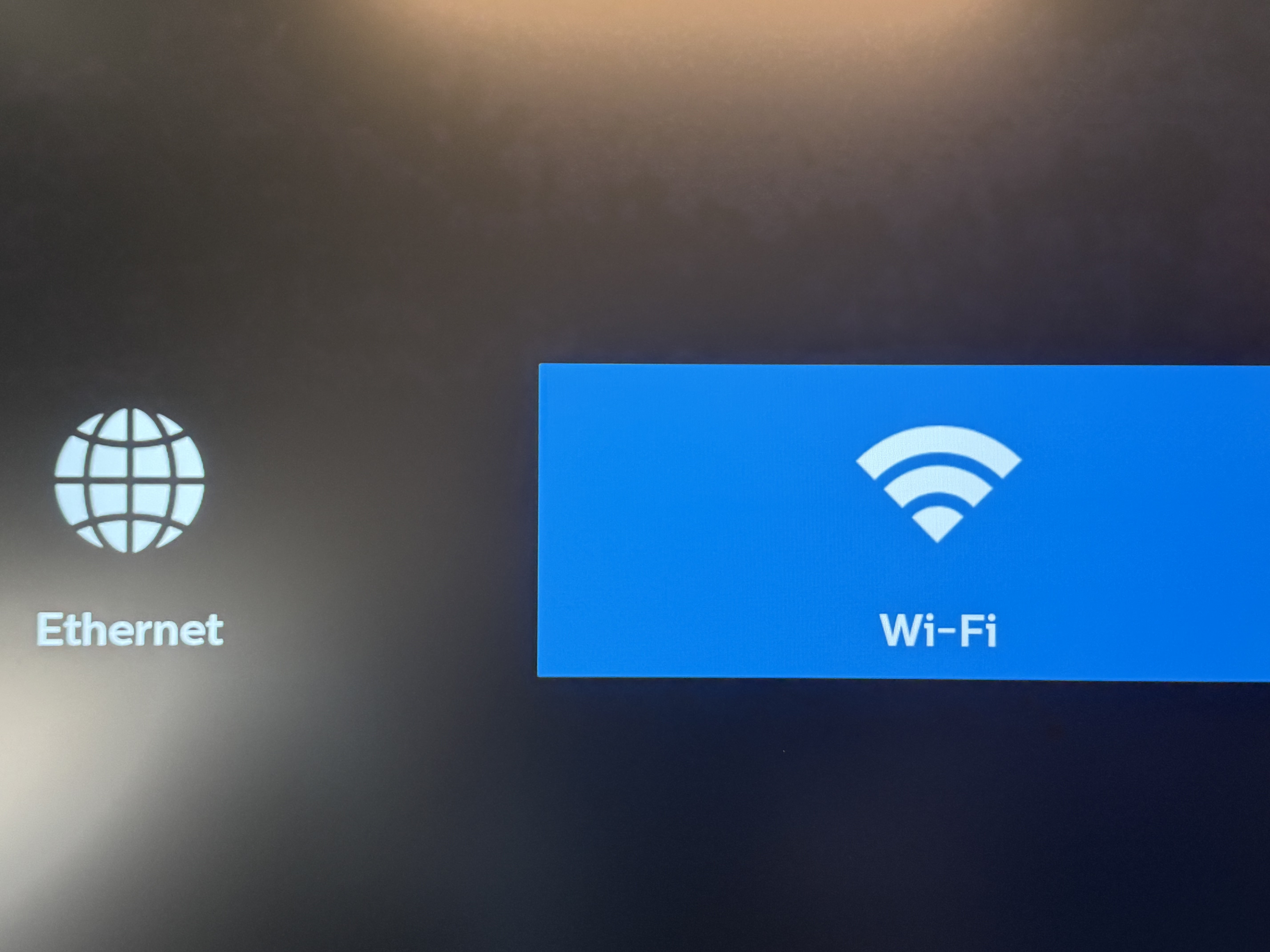

Select Wifi :

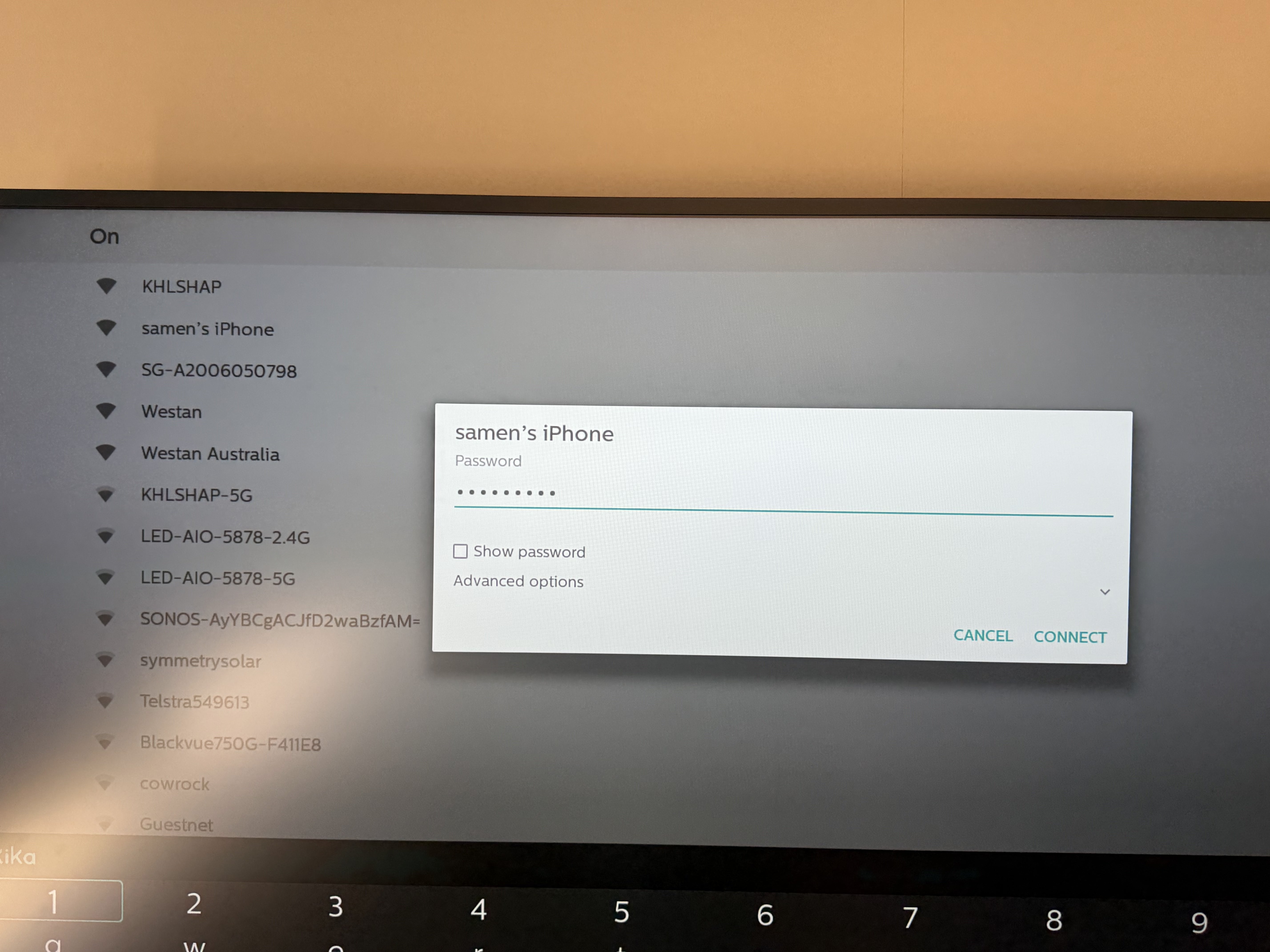

Select ****** Wifi and Password: *****and it will connect to wifi (It should be given from Liberty Oil, for security reason, I am not writing wifi SSID and Password in here)
Now
Press Home +1888 within 2-3 seconds from remote which will take to admin mode.
Go to the Apps
if you select SmartSign Apk and enter

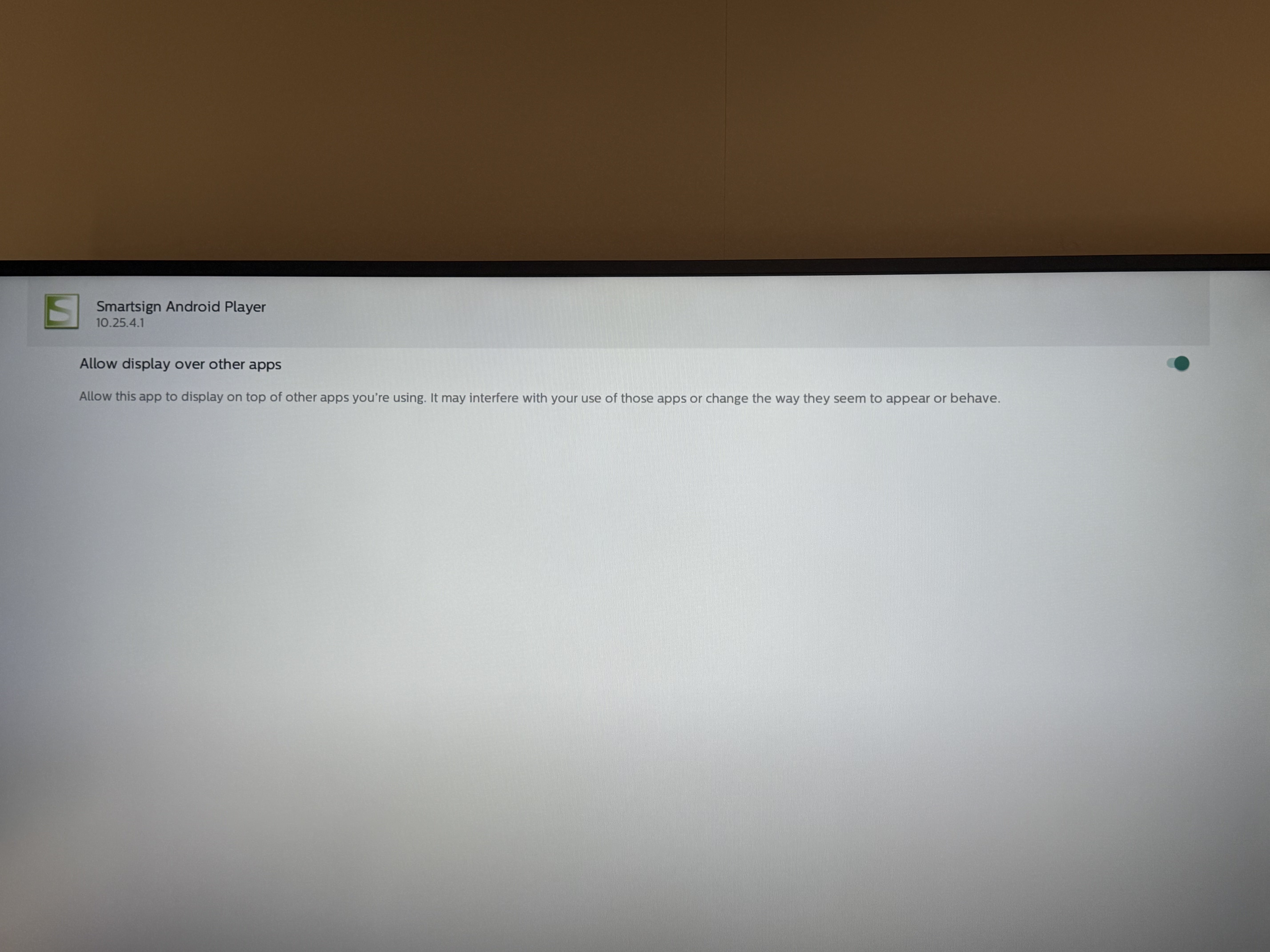

You need to make sure that the button is green ticked which actually will allow smart SmartSign over other apps

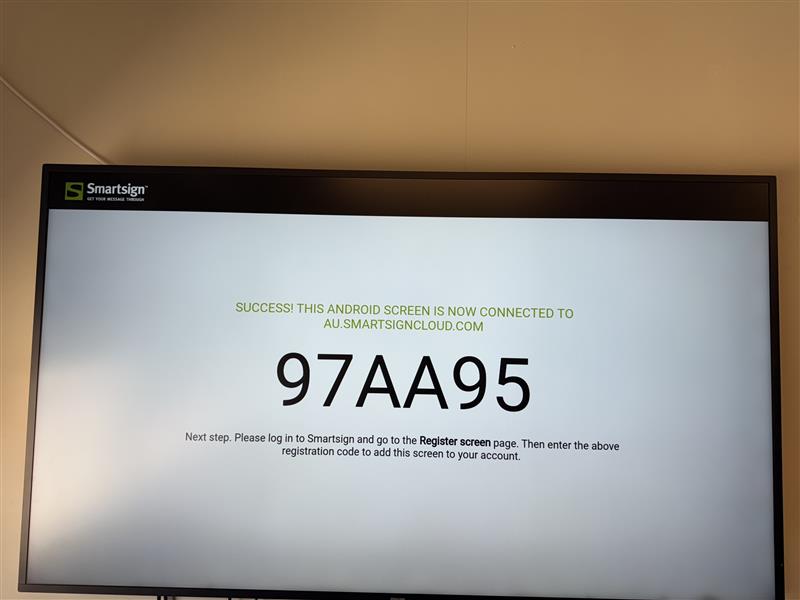

After that you will see an unique code:
You need to call to Joshua from Liberty Oil to pair this. His Phone Number is XXXXXXXX
Now get out of SmartSign App and in same way, get into Wave,

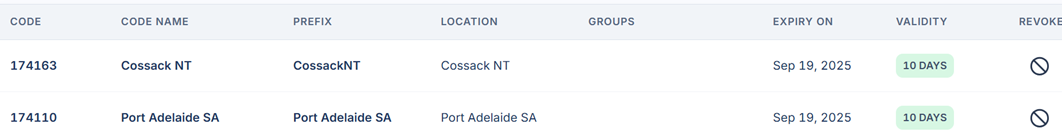

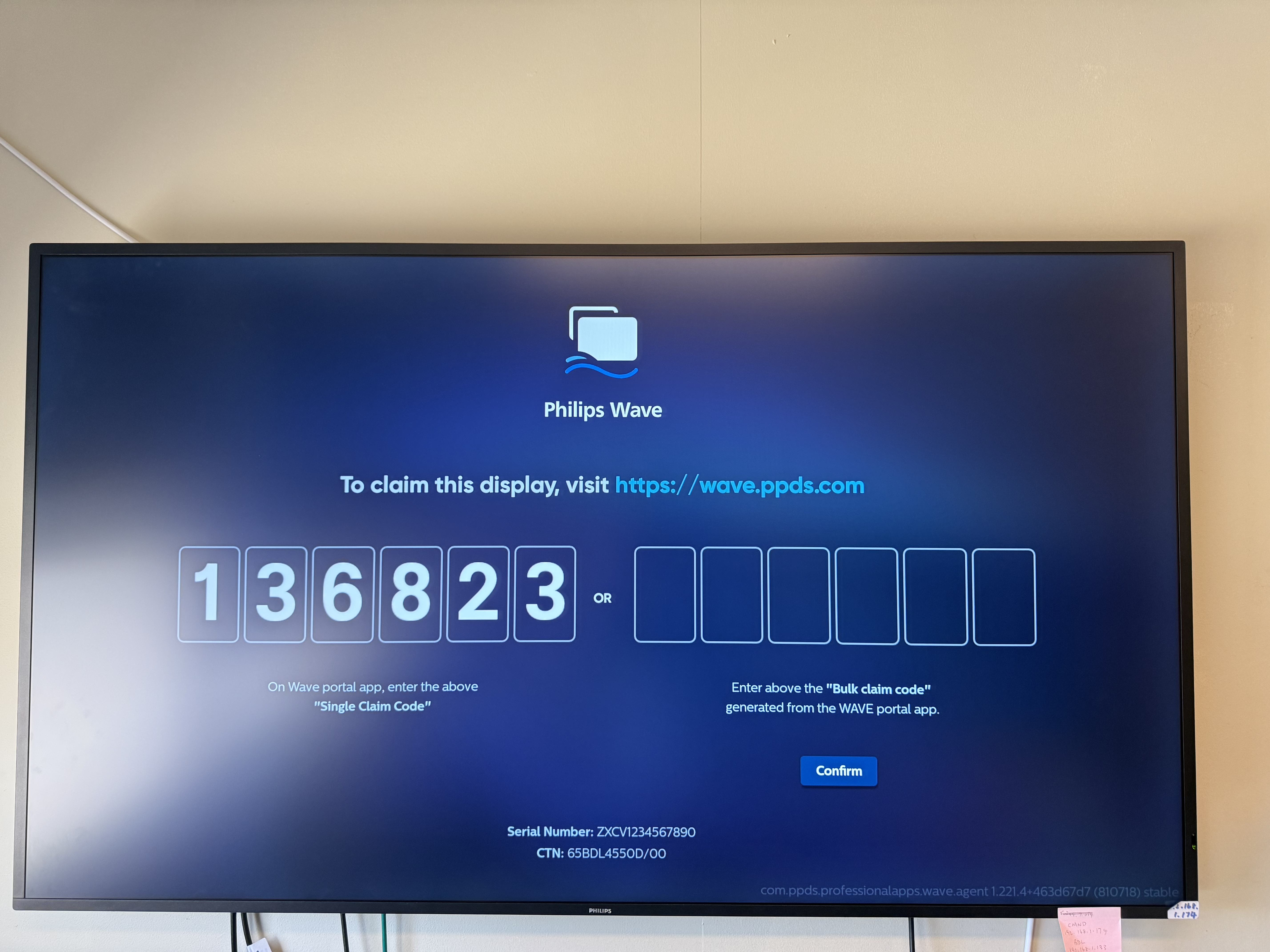

You will be asked to pair with Single Claimed Code, which is already there or bulk-code, Select one of the bulk codes accordingly to the location, which should be given by Liberty Oil/Andrew in advance (who ever looking after this section), if there is no bulk code, contact Joshua to pair in the computer for the Wave.

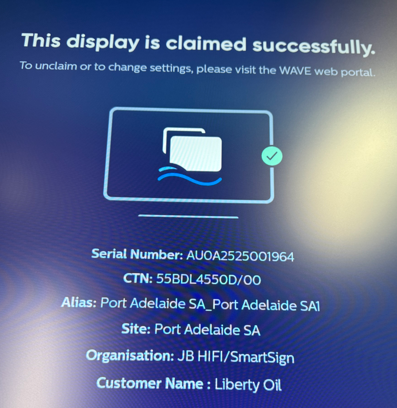

After claiming, you will get something like that :
Confirm with Joshua XXXXXXXX that everything is working.
