Portrait Mounting

This display can be installed in portrait position.
1. If the table stand is attached, remove it first.
2a. 43BDL4550D, 50BDL4550D, 55BDL4550D, 65BDL4550D, 75BDL4550D, 86BDL4550D

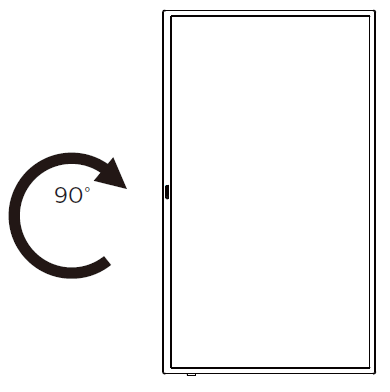

      Rotate the display counter-clockwise by 90°. The “ ” logo should be on the RIGHT side when facing the display.
2b. 32BDL4550D or 98BDL4550D
      Rotate the display clockwise by 90°. The “ ” logo should be on the LEFT side when facing the display.

3. Set the following setting so that the Menu is oriented correctly (Home->Configuration 2->System Rotation->Portrait)


43BDL4550D, 50BDL4550D
55BDL4550D 65BDL4550D
75BDL4550D, 86BDL4550D
32BDL4550D 98BDL4550D





D-Line Screen Settings

Press the Home Button to bring the Settings Menu
Configuration 1-> Switch On State = Forced On
Advanced Configuration -> Power Save = Mode 4

Prepare files into a USB Drive

Philips' Android based Media Player will look for content to be displayed in specific directories.
Please put the contents according to their types into the following directories in the USB Drive:

Create the directories as per below.



Put the files into the appropriate directory.
Ie.
video files into philips/video directory
photo files into philips/photo directory
music files into philips/music directory
pdf files into philips/pdf directory.

Creating Media Playlist

Using the remote, Press Source->Media Player for Photo and Video files.  Press Source-> PDF player for PDF files

Click Settings

Click Repeat Mode


Choose- Repeat All

Press  back button

Media Player-> Compose



PlayList = File 1


 Select Media From? (USB or Internal Storage or SD Card)




Navigate through the directory structure Select content by clicking  on the one you'd like to be included into the playlist




Once done click the Option Key ()

Add (to add to the list)



Save (to save the list)


Save or Abort? (Save)

Add background music to slideshow?  No

Overwrite? Yes

Setting the Screen to Boot to the Media Player when turned on

Home->Configuration 1->Boot on source->Action

 Set Input = Media Player

Playlist = 1 (or whichever playlist you prefer)


Possible Issue:

USB is not detected

Check if you’ve plugged the USB Drive into the USB Port further away from the screen (1 of the USB port is simply a 5V USB port)

Go to Home1888->Settings -> Signage Display -> System tools -> Security->External Storage is unticked.


OPTION: Using the Screen's Internal Storage

Enter the Screen's Android Menu

Enter Android Menu (Press: Home, 1, 8, 8, 8 within 2 seconds)
Select “Settings”


Clone (Copy) the USB's Media Files into the Internal Storage

Select “System Tools”

Press: Right NAV and select “Clone Media Files”


Select “USB storage” as Clone Source
Select “Internal storage” as Target Location
Select “Clone”


Files from the following directory in the USB are now copied into Internal Storage

philips/video/ -> video

philips/photo/ -> photo

philips/music/ -> music

philips/pdf/ -> pdf


Clearing the Internal Storage Content to Start Afresh
