2.5mm to DB9 connection included with Philips BDL

2.5mm to DB9 connection included with Philips BDL

Philips BDL are usually shipped with Serial cable in the form of 2.5mm to DB9 cable
(and most of them also come with the 2.5mm to 2.5mm cables 389G017356GM08 as well to daisy chain the screen to other screen)

The DB9 gender seemed to differ from model to model
Most of the time they ship the 2.5mm - MALE DB9
See the default DB9 gender type from model to model.

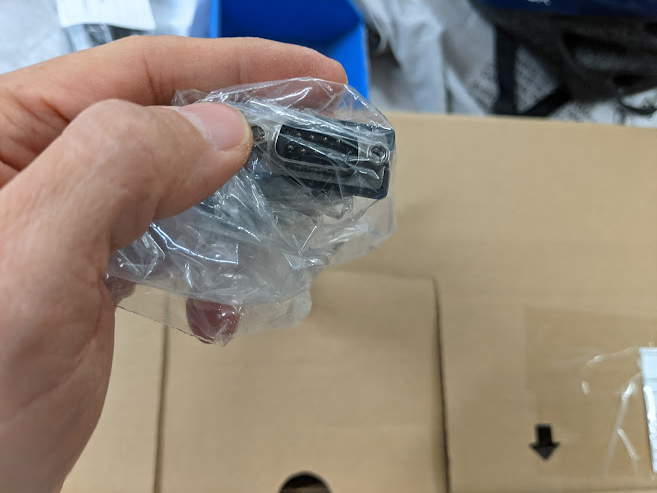

2.5mm - MALE DB9 - 389G1918GAA503

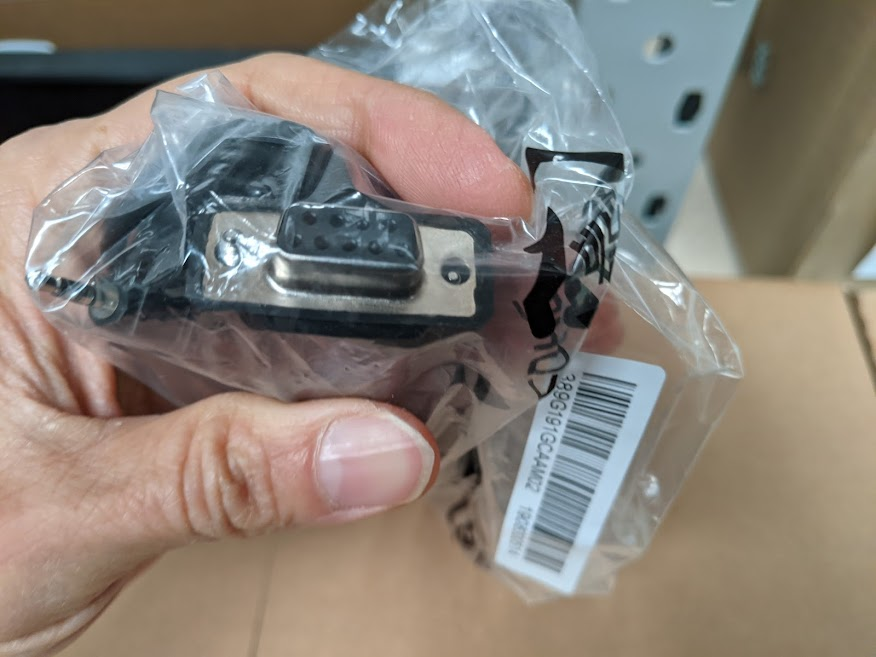

2.5mm - FEMALE DB9 - 389G191GCAAM02/389G0191CAAM02


Models:
55BDL3510Q/75
65BDL3050Q/75
55BDL3550Q/00
49BDL4050D/75
32BDL4550D/00
43BDL4550D/00
55BDL4550D/00
65BDL4550D/00
75BDL4550D/00
86BDL4550D/00
98BDL4550D/00
32BDL3550Q/00
43BDL3550Q/00
50BDL3550Q/00
55BDL3550Q/00
75BDL3550Q/00
86BDL3550Q/00
BDLxx88XL/XC



... Please continue the list
Models:
75BDL3050Q/75
43BDL3452T/00
55BDL3452T/00

... Please continue the list
