BDL 2.5mm DB9 Serial RS232 Adapter Cable Information

Adapter Cable

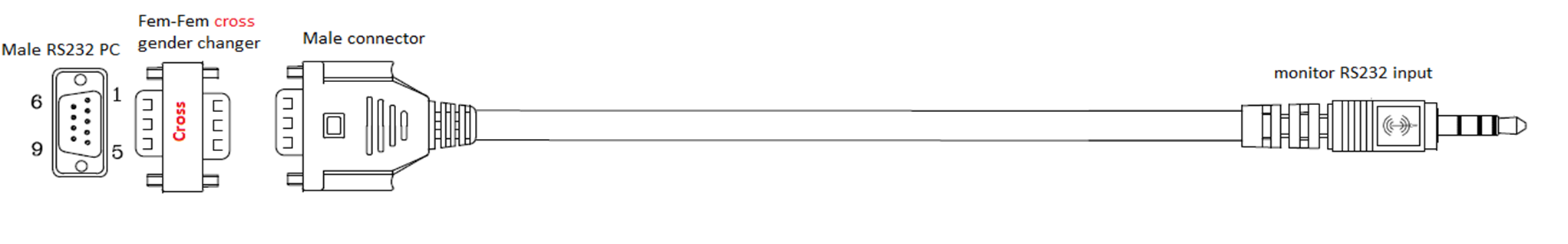

If you have a Male SubD-jack cable than connect a cross (null modem) gender changer between the RS232 cable and the PC

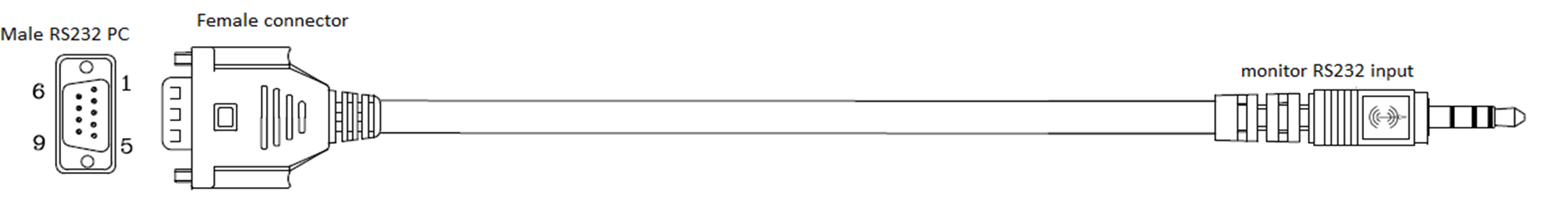

If you have a Female SubD-jack cable than connect the RS232 cable directly to the PC

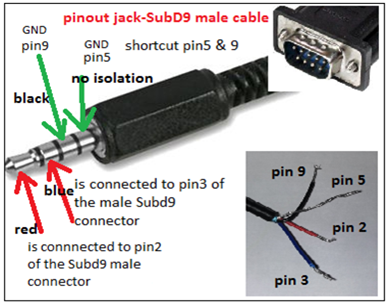

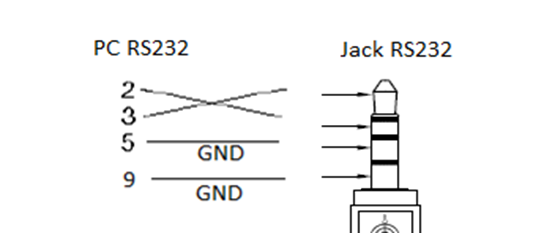

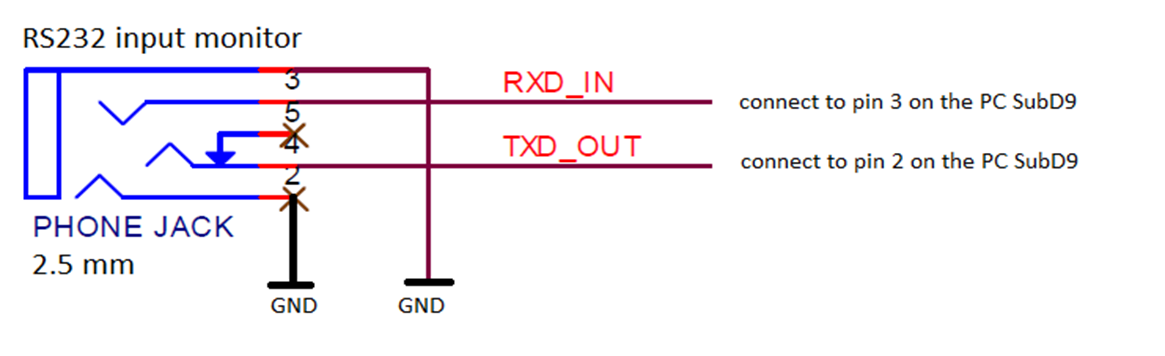

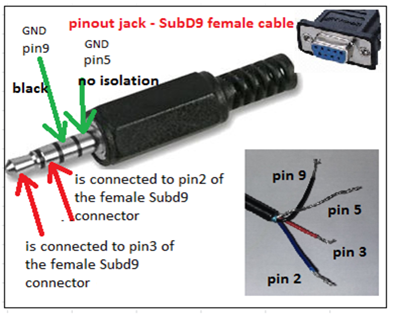

2.5mm Pinout
