BDL3452T BDL3651T How to Turn off the Navigation Bar and Swipe Up Source Menu

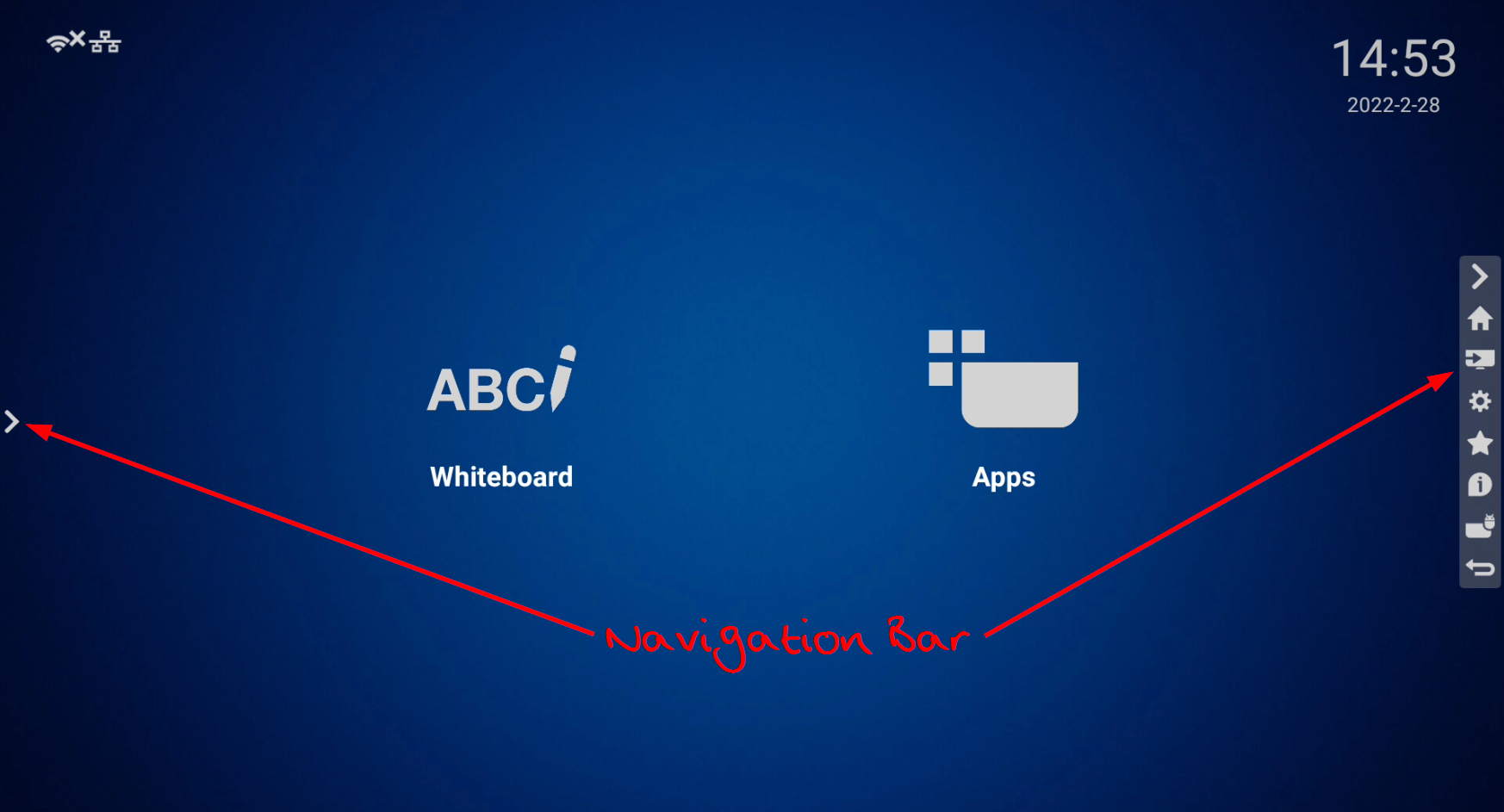

The Navigation bar appears on both left and right sides of the screen and is how you quickly switch between different parts of the system such as Home, Input sources, Screen menu, System Information, Running apps, etc.

To hide the Navigation bar,

1. Press the HOME button on the remote control to access the Screen Menu

2. Navigate to Android settings and press OK (password is 1234)

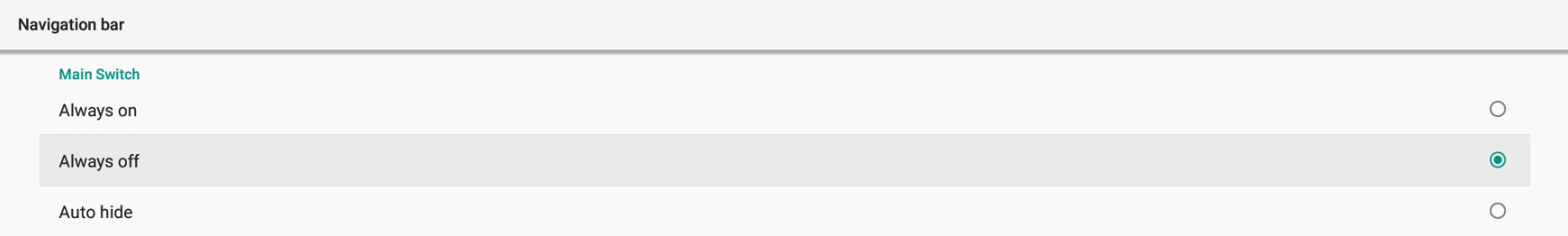

3. Navigate to Signage Display ⇒ General Settings ⇒ Navigation Bar

4. Change the setting to Always Off (Note: Auto hide setting will hide the Navigation bar after 10 seconds)


To disable the Swipe up source menu

Press the HOME button on the remote control to access the Screen Menu

Navigate to Android settings and press OK (password is 1234)

Navigate to Signage Display ⇒ System Tools ⇒ Swipe up

Deselect the box to disable the Swipe up Source menu
