BDL4052E Setting Redirect Touch/USB to Auto
Overview
BDL4052E running SW FB0109T.Wave version has 3 mode of determining which USB-B port is active
1. Side I/O
USB-B-3 (on the side of the screen, facing the Left when viewed from the front) is always active when the screen source is set to any external sources.
2. Rear I/O
USB-B-3 (on the side of the screen, facing the Left when viewed from the front) is always active when the screen source is set to any external sources.
3. Auto
USB-B-3 (on the side of the screen, facing the Left when viewed from the front) is active when the screen source is set to HDMI 3
USB-B-1 (behind the Screen, facing downward) is active when source is set to HDMI1 or HDMI2
Check if the current SW is already the latest SW (FB0109T.Wave)
Make sure you're already pass the Initial setup screen

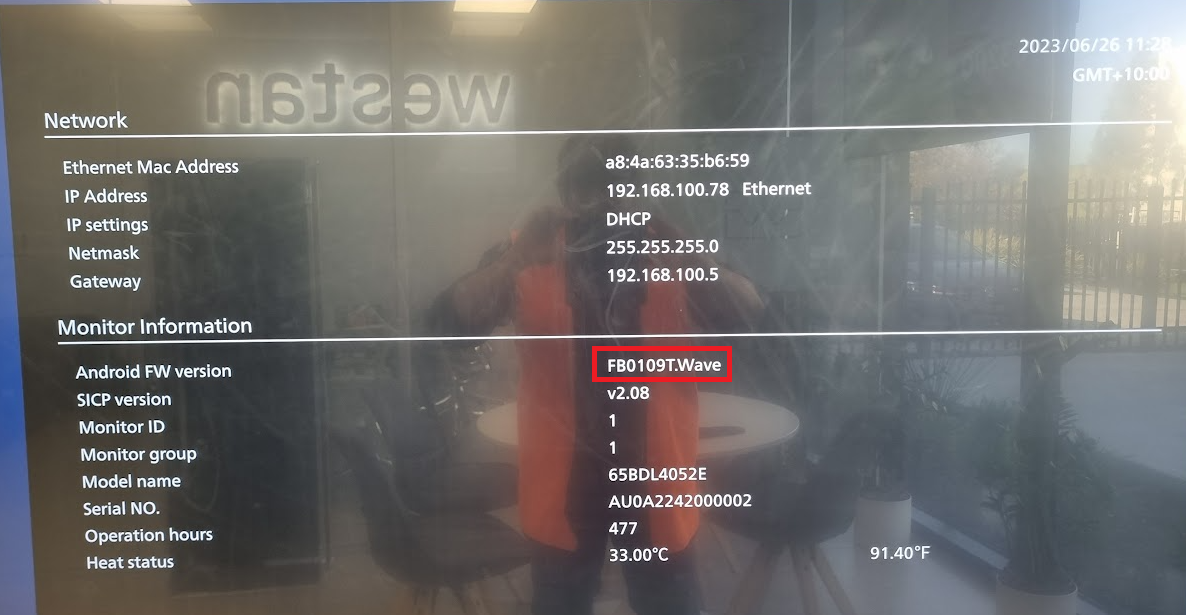

Press info,7,7
Check if the SW is already the latest (FB0109T.Wave)
If it is already the FB0109T.Wave then it's already the latest
Perform the Update if necessary
Setting the "Redirect Touch/USB to" Mode to one of the 3 modes above
Press Home button on the remote to bring the Settings Menu
Navigate to "Android Settings"

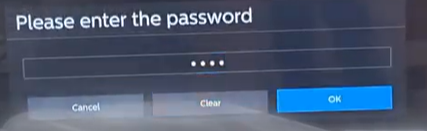

Key in the Pin "1234", then press OK

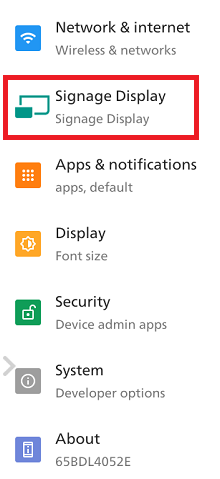

Select Signage Display

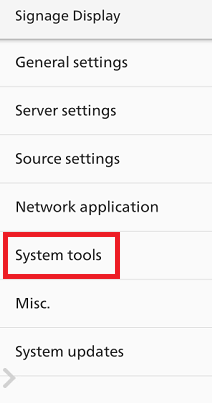

Select "System Tools"

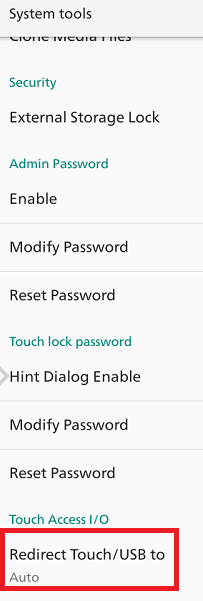

Select "Redirect Touch/USB to"

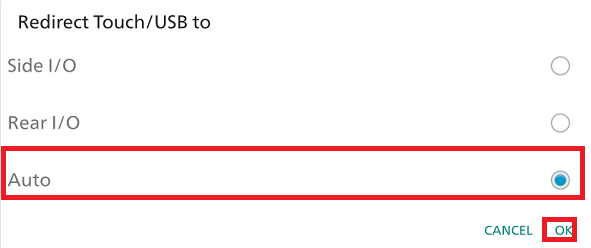

Choose the desired Touch/USB mode, and hit OK
