Customer A - 2 Portrait Philips BDL4107X on top of one another using an external player
Video Daisy chain requires DP now, instead of DVI cable.
IR Daisy chain is done by connecting the Control Out to Control In

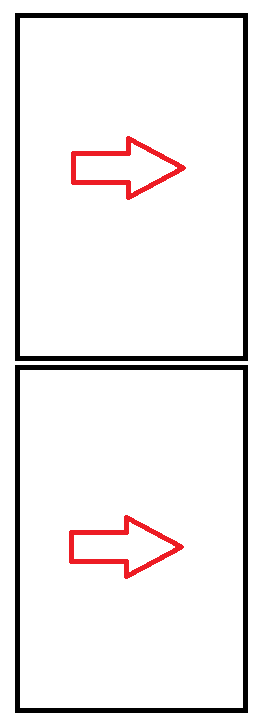

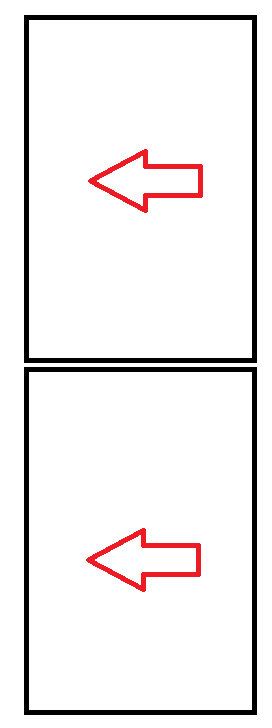

Mounting | 90° clockwise This is how Philips recommended the screen to be mounted in portrait orientation | 90° anti-clockwise Incorrect portrait mounting orientation |
Player Configuration | Use the Player's Remote Press OK To bring up the menu Select "Settings" and press OK to bring up the Setting page - Wifi Settings = connect to wifi (if appropriate) - Date/Time Settings = Set the correct time zone - Automatic Updates = Ensure it is turned on - Automatic Start = Ensure it is turned on - Custom Screen Orientation= Set to Landscape (Reverse) | Use the Player's Remote Press OK To bring up the menu Select "Settings" and press OK to bring up the Setting page - Wifi Settings = connect to wifi (if appropriate) - Date/Time Settings = Set the correct time zone - Automatic Updates = Ensure it is turned on - Automatic Start = Ensure it is turned on - Custom Screen Orientation= Set to Landscape |
Top Screen Configuration | Press [Home]->[Configuration 1]->[Panel Saving]->[Cooling Fan]= Auto/High Press [Home]->[Configuration 1]->[Switch On State]= Forced On Press [Home]->[Configuration 1]->[Boot On Source]= HDMI (if 1st screen), DP (if 2nd) Press [Home]->[Configuration 1]->[RS232-routing]= RS232/LAN Press [Home]->[Configuration 2]->[Monitor-ID]->[Monitor ID]=1 Press [Home]->[Advanced Option]->[Tiling]->[Enable]= On Press [Home]->[Advanced Option]->[Tiling]->[H Monitors]= 2 Press [Home]->[Advanced Option]->[Tiling]->[V Monitors]= 2 Press [Home]->[Advanced Option]->[Tiling]->[Position]= 3 Press [Home]->[Advanced Option]->[Tiling]->[Switch on delay]= Auto Press [Home]->[Advanced Option]->[Date and time]-> set the date and clock correctly Press [Home]->[Advanced Option]->[Power Save] = Mode 3 Press [Home]->[Advanced Option]->[Schedule]- Tick #1 - to turn the schedule on On time=07:30 Off time=23:00 Select all Days Select every week Input = HDMI (if first screen) or DisplayPort (if second screen) Press Back a couple of times until Setting menu disappear | Press [Home]->[Configuration 1]->[Panel Saving]->[Cooling Fan]= Auto/High Press [Home]->[Configuration 1]->[Switch On State]= Forced On Press [Home]->[Configuration 1]->[Boot On Source]= HDMI (if 1st screen), DP (if 2nd) Press [Home]->[Configuration 1]->[RS232-routing]= RS232/LAN Press [Home]->[Configuration 2]->[Monitor-ID]->[Monitor ID]=1 Press [Home]->[Advanced Option]->[Tiling]->[Enable]= On Press [Home]->[Advanced Option]->[Tiling]->[H Monitors]= 2 Press [Home]->[Advanced Option]->[Tiling]->[V Monitors]= 2 Press [Home]->[Advanced Option]->[Tiling]->[Position]= 2 Press [Home]->[Advanced Option]->[Tiling]->[Switch on delay]= Auto Press [Home]->[Advanced Option]->[Date and time]-> set the date and clock correctly Press [Home]->[Advanced Option]->[Power Save] = Mode 3 Press [Home]->[Advanced Option]->[Schedule]- Tick #1 - to turn the schedule on On time=07:30 Off time=23:00 Select all Days Select every week Input = HDMI (if first screen) or DisplayPort (if second screen) Press Back a couple of times until Setting menu disappear |
Bottom Screen Configuration | Press [Home]->[Configuration 1]->[Panel Saving]->[Cooling Fan]= Auto/High Press [Home]->[Configuration 1]->[Switch On State]= Forced On Press [Home]->[Configuration 1]->[Boot On Source]= HDMI (if 1st screen), DP (if 2nd) Press [Home]->[Configuration 1]->[RS232-routing]= RS232/LAN Press [Home]->[Configuration 2]->[Monitor-ID]->[Monitor ID]=2 Press [Home]->[Advanced Option]->[Tiling]->[Enable]= On Press [Home]->[Advanced Option]->[Tiling]->[H Monitors]= 2 Press [Home]->[Advanced Option]->[Tiling]->[V Monitors]= 2 Press [Home]->[Advanced Option]->[Tiling]->[Position]= 4 Press [Home]->[Advanced Option]->[Tiling]->[Switch on delay]= Auto Press [Home]->[Advanced Option]->[Date and time]-> set the date and clock correctly Press [Home]->[Advanced Option]->[Power Save] = Mode 3 Press [Home]->[Advanced Option]->[Schedule]- Tick #1 - to turn the schedule on On time=07:30 Off time=23:00 Select all Days Select every week Input = HDMI (if first screen) or DisplayPort (if second screen) Press Back a couple of times until Setting menu disappear | Press [Home]->[Configuration 1]->[Panel Saving]->[Cooling Fan]= Auto/High Press [Home]->[Configuration 1]->[Switch On State]= Forced On Press [Home]->[Configuration 1]->[Boot On Source]= HDMI (if 1st screen), DP (if 2nd) Press [Home]->[Configuration 1]->[RS232-routing]= RS232/LAN Press [Home]->[Configuration 2]->[Monitor-ID]->[Monitor ID]=1 Press [Home]->[Advanced Option]->[Tiling]->[Enable]= On Press [Home]->[Advanced Option]->[Tiling]->[H Monitors]= 2 Press [Home]->[Advanced Option]->[Tiling]->[V Monitors]= 2 Press [Home]->[Advanced Option]->[Tiling]->[Position]= 2 Press [Home]->[Advanced Option]->[Tiling]->[Switch on delay]= Auto Press [Home]->[Advanced Option]->[Date and time]-> set the date and clock correctly Press [Home]->[Advanced Option]->[Power Save] = Mode 3 Press [Home]->[Advanced Option]->[Schedule]- Tick #1 - to turn the schedule on On time=07:30 Off time=23:00 Select all Days Select every week Input = HDMI (if first screen) or DisplayPort (if second screen) Press Back a couple of times until Setting menu disappear |
