Dragon 1.0 (xxBDL4050D, xxBDL4051T, 65BDL3051T) Parts Harvesting
Harvest:
Main board/Scaler Board - the board which have video interfaces (eg. HDMI, DVI, etc)
Power board- the board that have the power input
Android Board - Small board on the main board
TCon Board - Board that connect the Main board and the panel
LVDS/51P cable - cable that connect main board and the Tcon board.
See position of main board in service manual in the link below (page 73, 74, 75, 76)

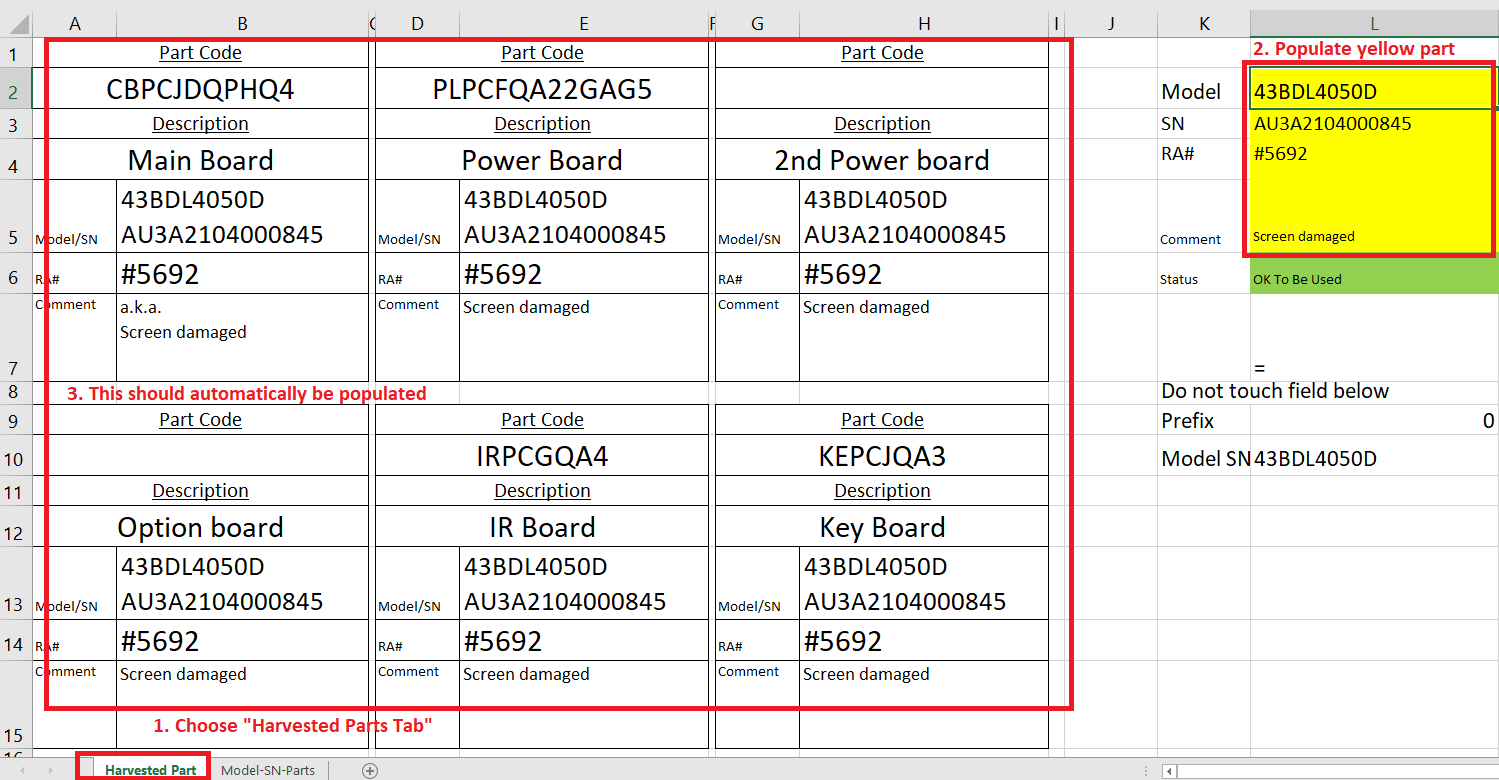

Label with this excel spreadsheet

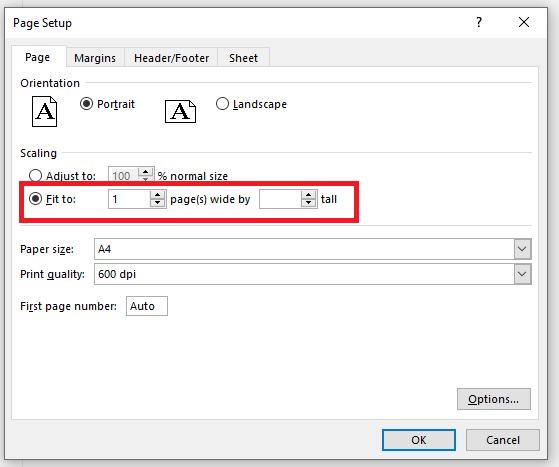

Print out the Spreadsheet, set up the page setup first
Put the parts into Shopify
Go to Shopify
Create Transfer Order to your bin
Receive.
