INF 40 Series - How to Install SI01B Wi-Fi dongle

INF 40 Series - How to Install SI01B Wi-Fi adaptor

Download latest firmware
INF6540e [download]
INF7540e [download]
INF8640e [download]

Firmware installation procedure
  1. From the link above, download the file specific to your display
  2. Extract the contents of that file and locate the Upgrade_811 folder
  3. Copy the Upgrade_811 folder to the root directory of a USB drive that has been formatted FAT32. (It's not required for this folder to be the only item on the drive, but it is recommended.)
  4. Plug the USB drive to the USB port (next to the LAN port) on the display.
  5. Unplug the power from the display for 30 seconds, then plug it back in again.
  6. Verify that the Power button is lit a solid red colour.
  7. Press and hold the power button until the colour changes to a blinking blue colour. (This usually takes about 15 seconds. It can be difficult to see the light when pressing the button, using your finger press and hold just the bottom half of the button so you can still see the light on the top half.)
  8. If the firmware update started correctly, you should see a screen similar to the following
When it is done it will ask you to setup the display again as if are just setting it up for the first time.
Once the setup is complete you can install the WiFi Dongle following these steps

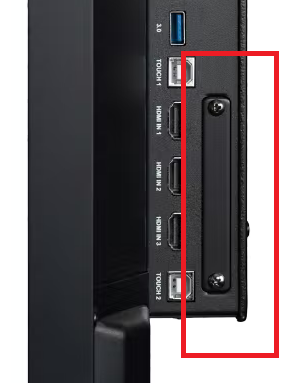

  1. Remove the two screws and the metal plate at the bottom of the right-side panel.
       =>   =>

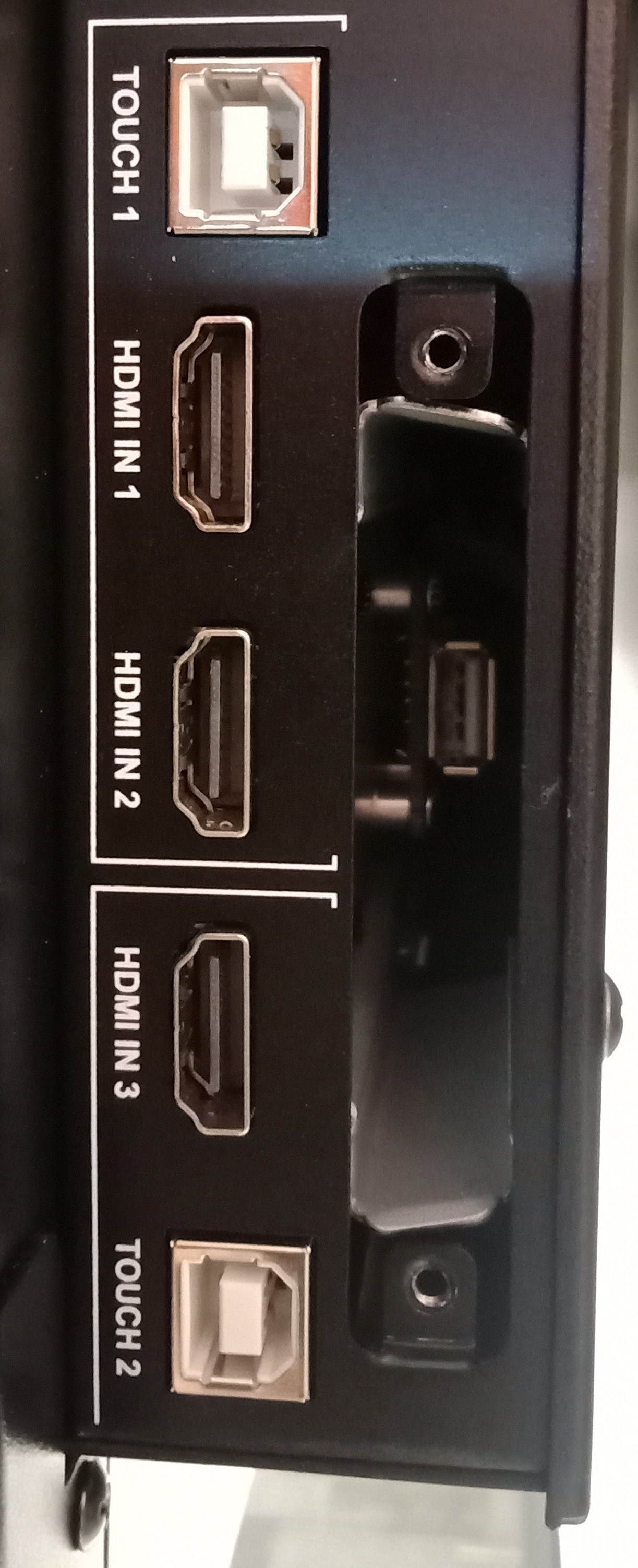

  2. Insert the SI01B Wi-Fi dongle.
  3. Install the two screws.
  4. Extend the antennas so they stick out of the frame.
  5. From the home screen, select Settings => select WiFi and choose your wireless network.
