22AV9574A - Light Green Service Remote

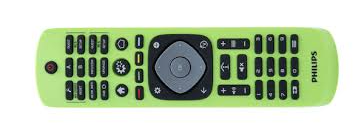

22AV9574A Picture
Overview Of different Modes
Setup/Guest Mode:
- Setup = Special Remote mode - where you can do things you're not able to do using normal remote.
Example of what you can do in this mode:
- Go into Professional Menu even if the TV's High Security Mode has been enabled (which ban other remote from going into professional mode)
- Go into Professional Menu by pressing 1 button

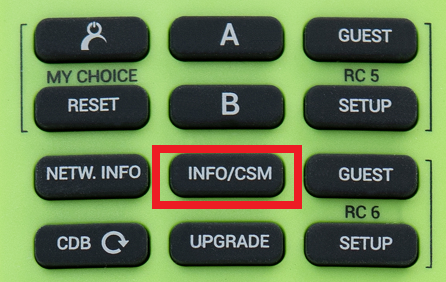

- Open Up The CSM Menu by pressing the INFO/CSM button
Basically the Setup mode, make the remote a powerful remote
- Guest = mimic normal remote control
You may ask.. Why would I even want to have this mode
Well, you may want to test some functions which can only be done using guest remote mode
Example:
Going into SAM Menu (to edit model/sn of TV) by pressing 062596OK won't work on Setup mode, but works on Guest mode
RC5/RC6 Modes
Philips remotes are encoded in 2 main IR codes, that is RC5 and RC6.
RC5 is the older IR codes while RC6 is the newer codes.
Both codes however, are still being used.. for example, someone may want to set xxHFL3011, xxHFL3014 to RC5 mode to allow the existing automation on site to work.
Now, some current models of TV do uses RC5 IR codes only. for example xxHFL2889
And to make it even more confusing, the RC5 IR codes set recognized by xxHFL2889 is different to the IR codes recognized by xxHFL3011 and xxHFL3014 (when xxHFL3011 and xxHFL3014 is set to RC5)
RC5 for xxHFL28x9 (Default)
To change to this mode:
- For RC5 Setup mode - press RC5 Setup - press 1+A simultaneously
-
For RC5 Guest mode -
press RC5 Guest - press 1+A simultaneously
RC5 for xxHFL3011 and xxHFL3014
To change to this mode:
-
For RC5 Setup mode -
press RC5 Setup - press 1+B simultaneously
-
For RC5 Guest mode -
press RC5 Guest - press 1+B simultaneously
In RC5 mode, OK button only work in RC5 Guest mode.
Common Use of the Light Green Service Remote
xxHFL2889 Models
Set the remote to the correct RC5 setup
- For RC5 Setup mode - press RC5 Setup - press 1+A simultaneously
you only need to press 1+A once, and the RC5 Setup mode is set to xxHFL2889 RC5 codes
if you've pressed the 1+A while you're on RC5 Setup mode, the RC5 Guest mode doesn't automatically changed to the same mode.
- For RC5 Guest mode - press RC5 Guest - press 1+A simultaneously
you only need to press 1+A once, and the RC5 Guest mode is set to xxHFL2889 RC5 codes
if you've pressed the 1+A while you're on RC5 Guest mode, the RC5 Setup mode doesn't automatically changed to the same mode.
Go into Professional Mode
- Ensure you're on RC5 Setup mode

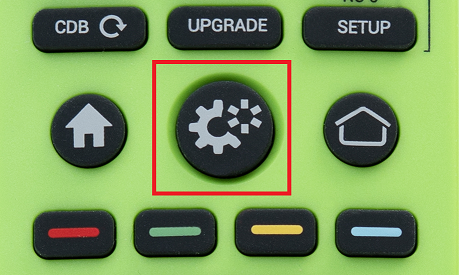

- press the double cog button
Show CSM Menu
- Ensure you're on RC5 Setup mode
- Open Up The CSM Menu by pressing the INFO/CSM button
xxHFL3011/xxHFL3014 Models (set to RC5 - xxHFL3011 and xxHFL3014 can be set to RC5 OR RC6 mode)
Set the remote to the correct RC5 setup
- For RC5 Setup mode - press RC5 Setup - press 1+B simultaneously
you only need to press 1+A once, and the RC5 Setup mode is set to non-xxHFL2889 RC5 codes
if you've pressed the 1+A while you're on RC5 Setup mode, the RC5 Guest mode doesn't automatically changed to the same mode.
- For RC5 Guest mode - press RC5 Guest - press 1+B simultaneously
you only need to press 1+A once, and the RC5 Guest mode is set to non-xxHFL2889 RC5 codes
if you've pressed the 1+A while you're on RC5 Guest mode, the RC5 Setup mode doesn't automatically changed to the same mode.
In RC5 mode, OK button only work in RC5 Guest mode.
Go into Professional Mode
- Ensure you're on RC5 Setup mode
- press the double cog button
Show CSM Menu
- Ensure you're on RC5 Setup mode
- Open Up The CSM Menu by pressing the INFO/CSM button
Show SAM Menu
- Set remote to RC5 Setup mode
- p
ress the double cog button to enter the professional mode
- Set [Advanced]->[Professional Mode] = Off
In RC5 mode, OK button only work in RC5 Guest mode.
- Exit Professional Menu by pressing back many times.
- Set remote to RC5 Guest mode
- Press 062596OK
xxHFL5011/xxHFL7011/xxHFL5014/xxHFL6014/xxHFL5114/xxHFL6114 Models
Set the remote to the correct RC6 setup
- For RC6 Setup mode - press RC6 Setup
- For RC6 Guest mode - press RC6 Guest
Go into Professional Mode
- Ensure you're on RC6 Setup mode
- press the double cog button
Show CSM Menu
- Ensure you're on RC6 Setup mode
- Open Up The CSM Menu by pressing the INFO/CSM button
Show SAM Menu
- Set remote to RC6 Setup mode
- press the double cog button to enter the professional mode
- Set [Advanced]->[Professional Mode] = Off
Choose SKIP INSTALLATION (OTHERWISE THE TV WILL RESET ITSELF)
- Exit Professional Menu by pressing back many times.
- Set remote to RC6 Guest mode
- Press 062596OK
