FSMPv2 - Hard Reset The Device

FSMPv2 - Hard Reset The Device


Resetting the FSMP will erase wifi configuration and Fusion signage identity.
You need to reconfigure the wifi and then you'll get a new Fusion signage identity.
Because of this, you'll also need to:
- delete the old Fusion signage identity from your Fusion portal
- add the new identity to your portal
- assign/schedule new playlist content to the newly added identity


Make sure:
- You are using the FSMP Remote

- the remote has a working battery
- point the remote to the FSMP device (NOT THE SCREEN)

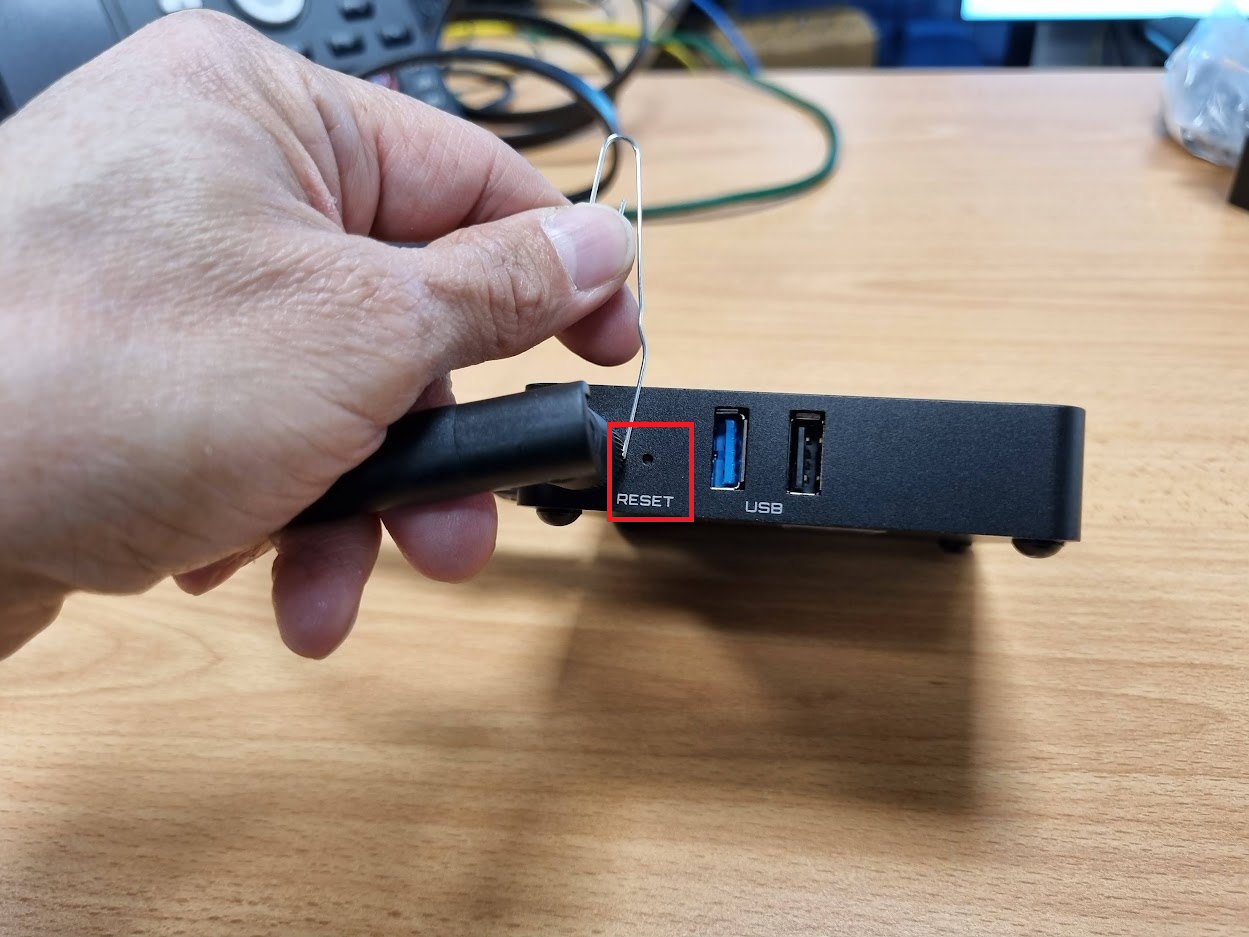

Press the Reset Button using a pin

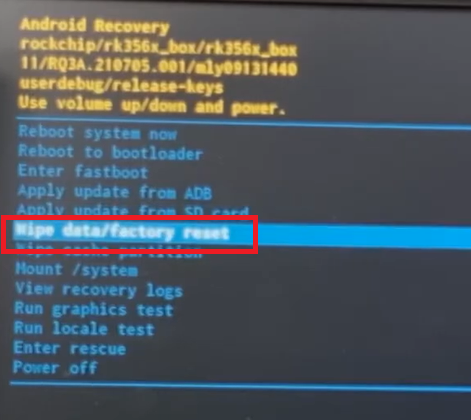

Navigate down to "Wipe data/factory reset"
Press the remote "Power" Button to confirm

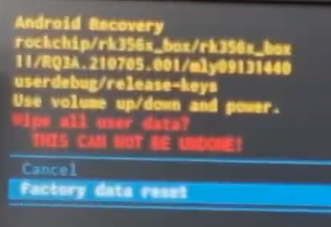

Navigate down to "Factory data reset"
Press the remote "Power" Button to confirm


Video of procedure below
