xxBDL4050D (Dragon 1.0) - Fusion Quick Install From Android Clone File

xxBDL4050D (Dragon 1.0) - Fusion Quick Install From Android Clone File

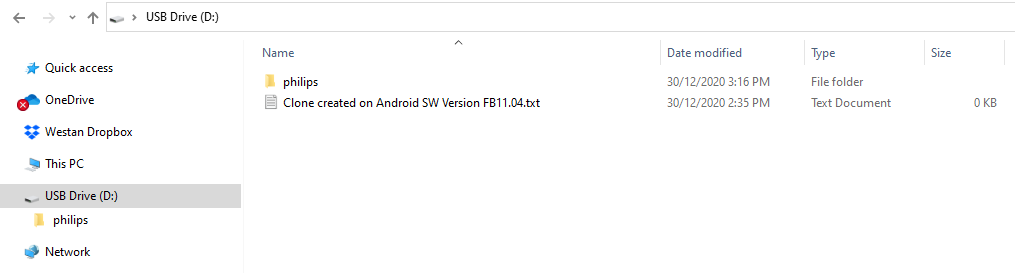

Download the files and directory structure from the link below and put them into USB Drive (formatted with FAT32)




Quick Install From Android Clone File Procedure

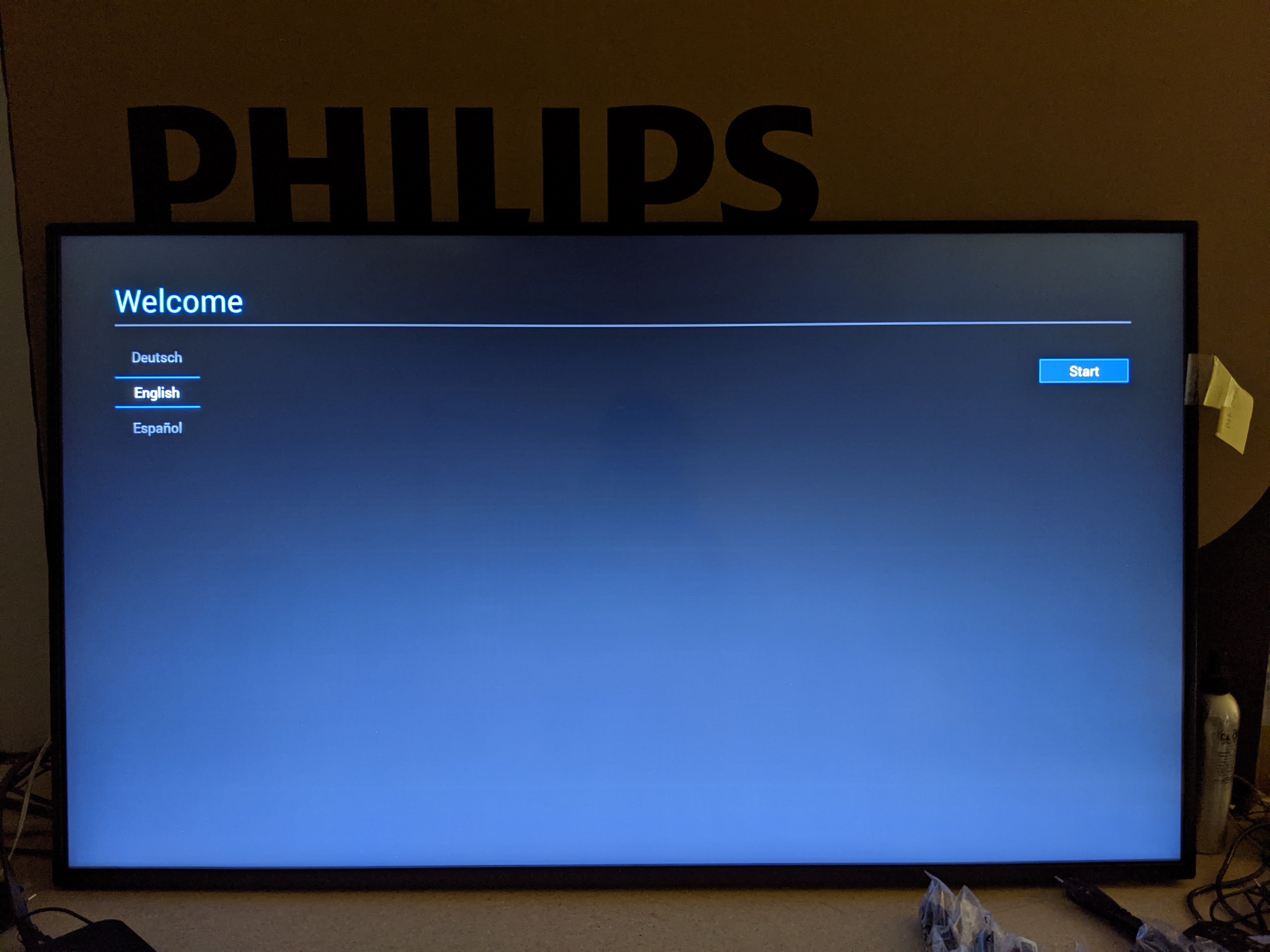

Welcome - Choose English - Start

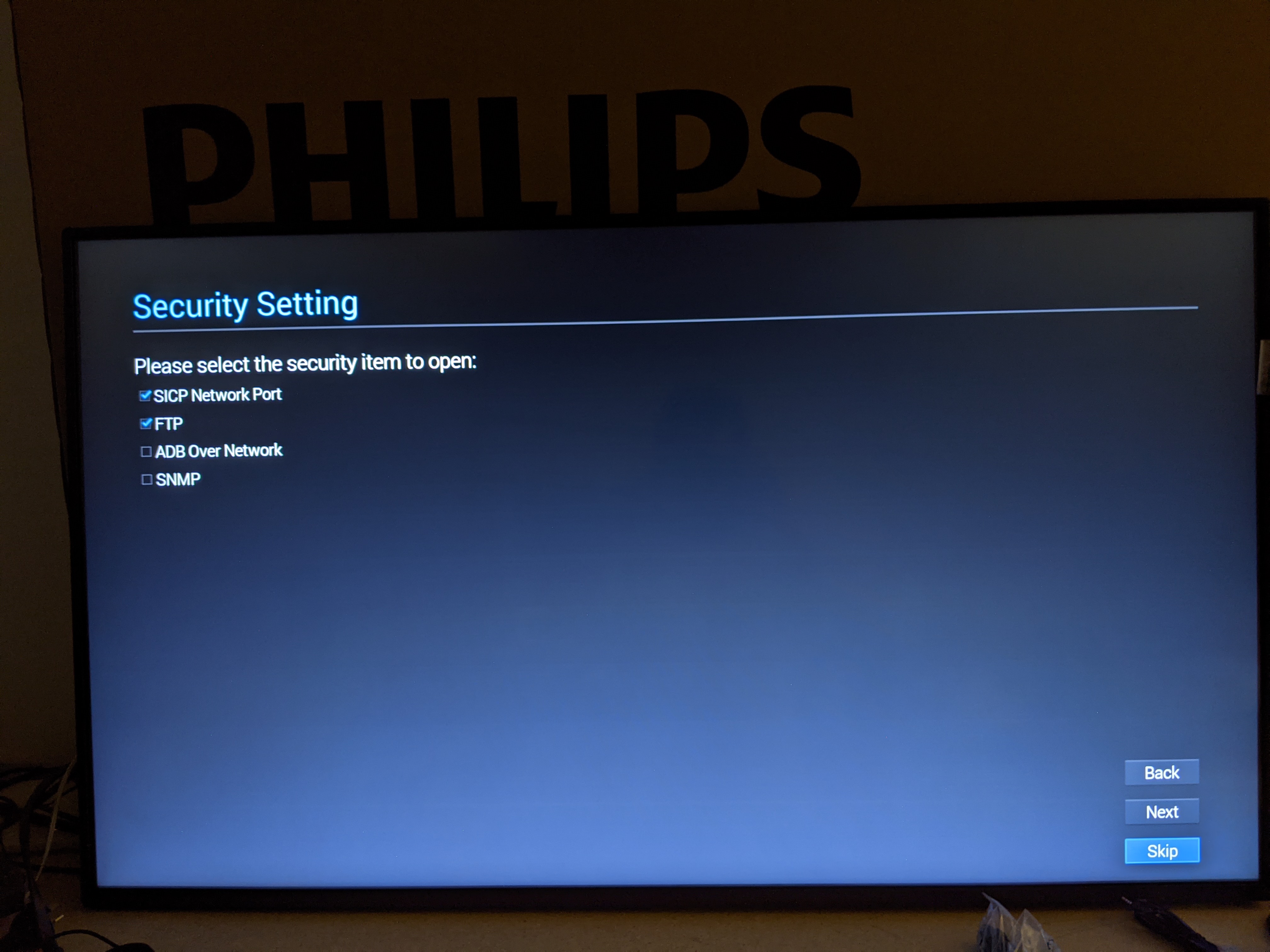

Security Settings -> Skip



Network Setting - Select appropriate network type - Next

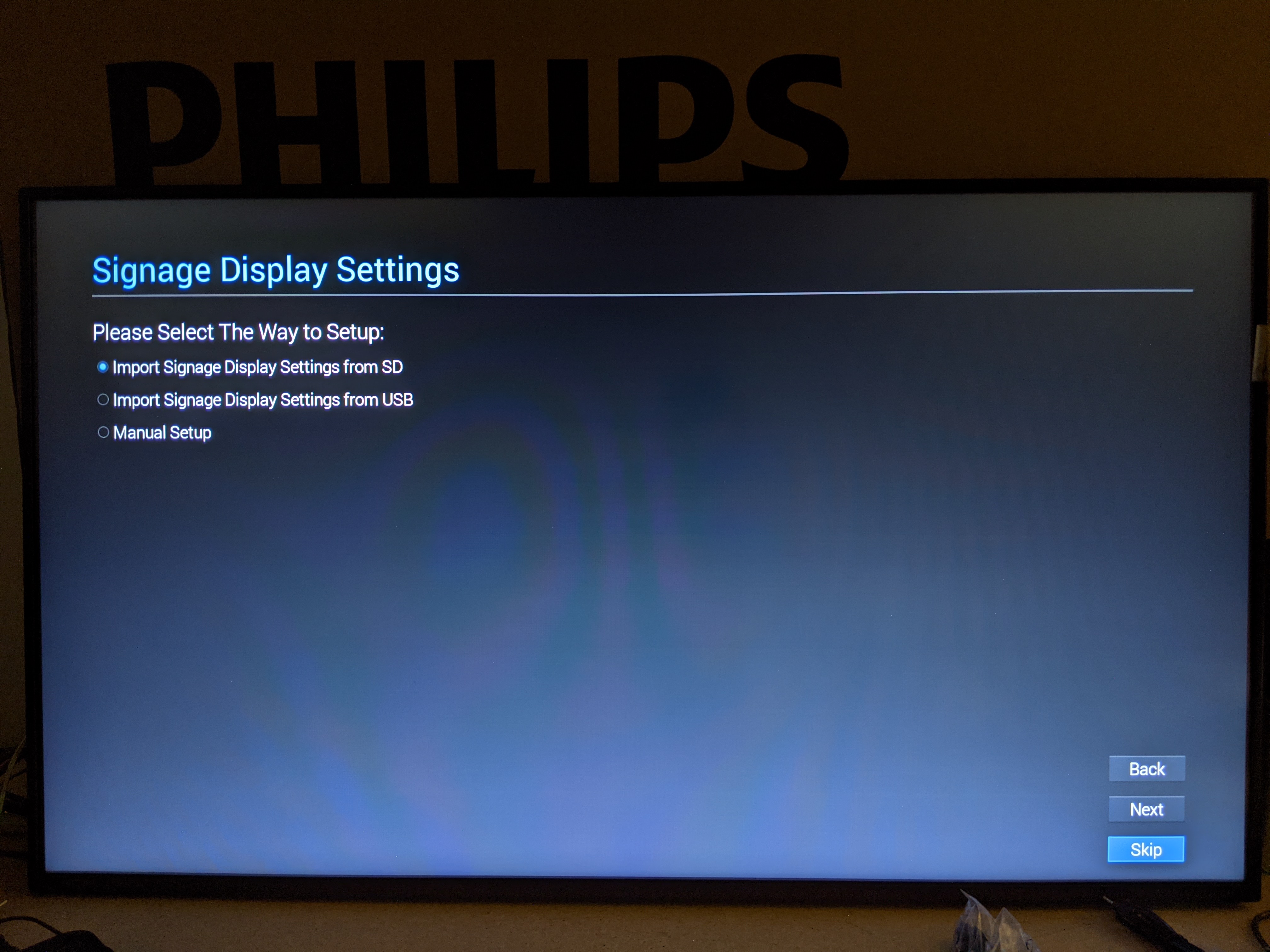

Signage Display Settings - Skip

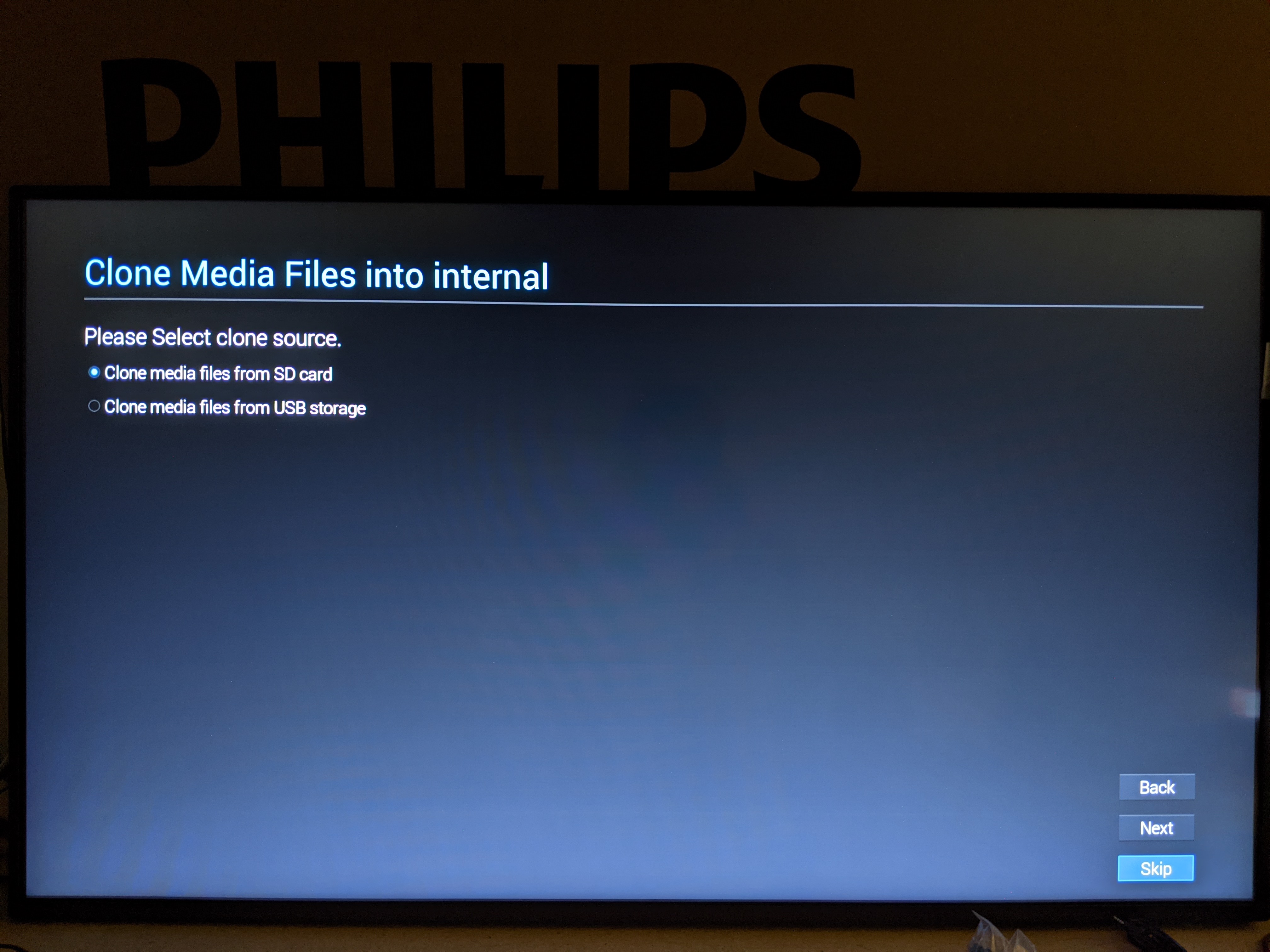

Clone Media Files into internal - Skip

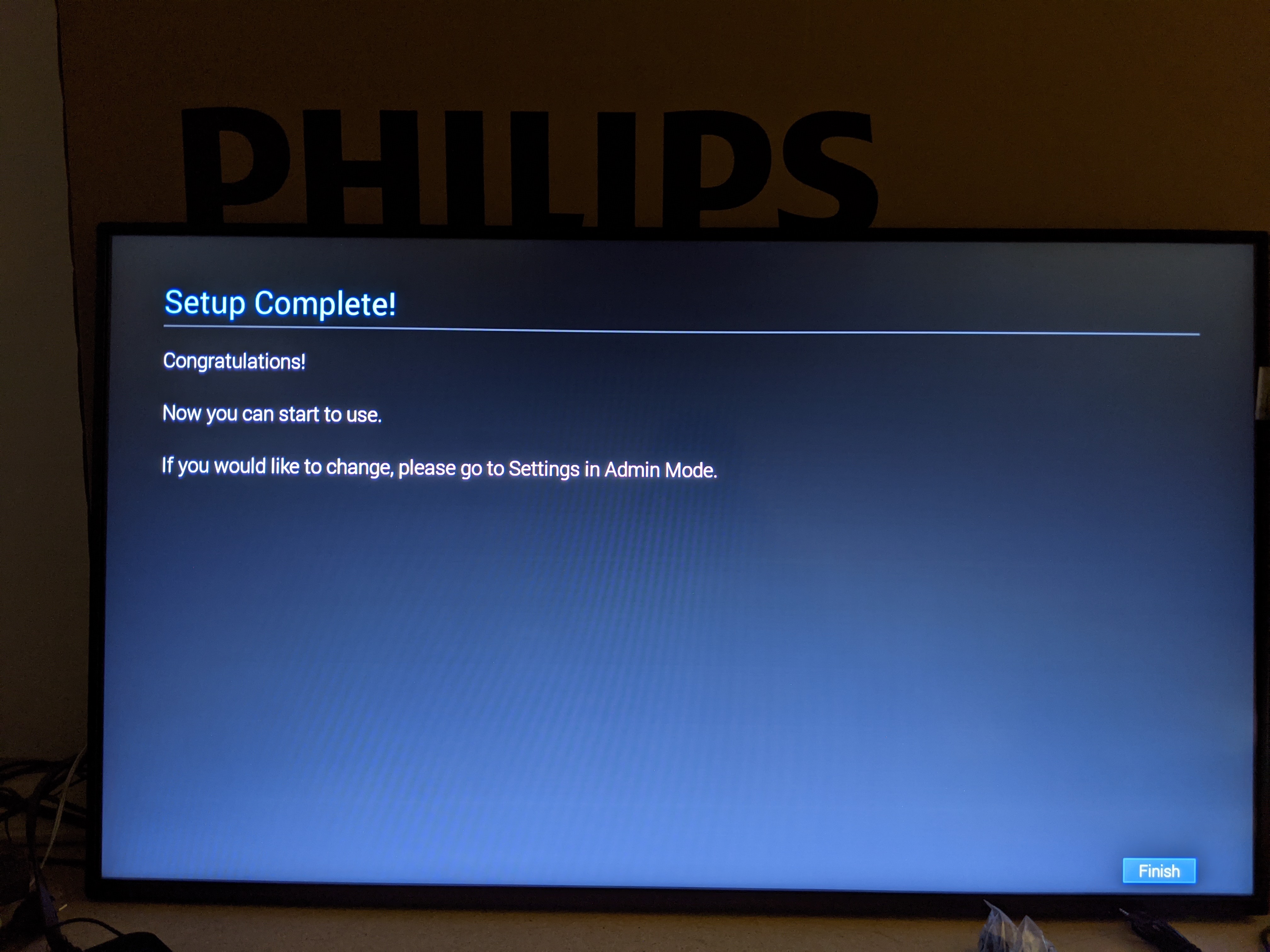

Setup Complete! - Finish

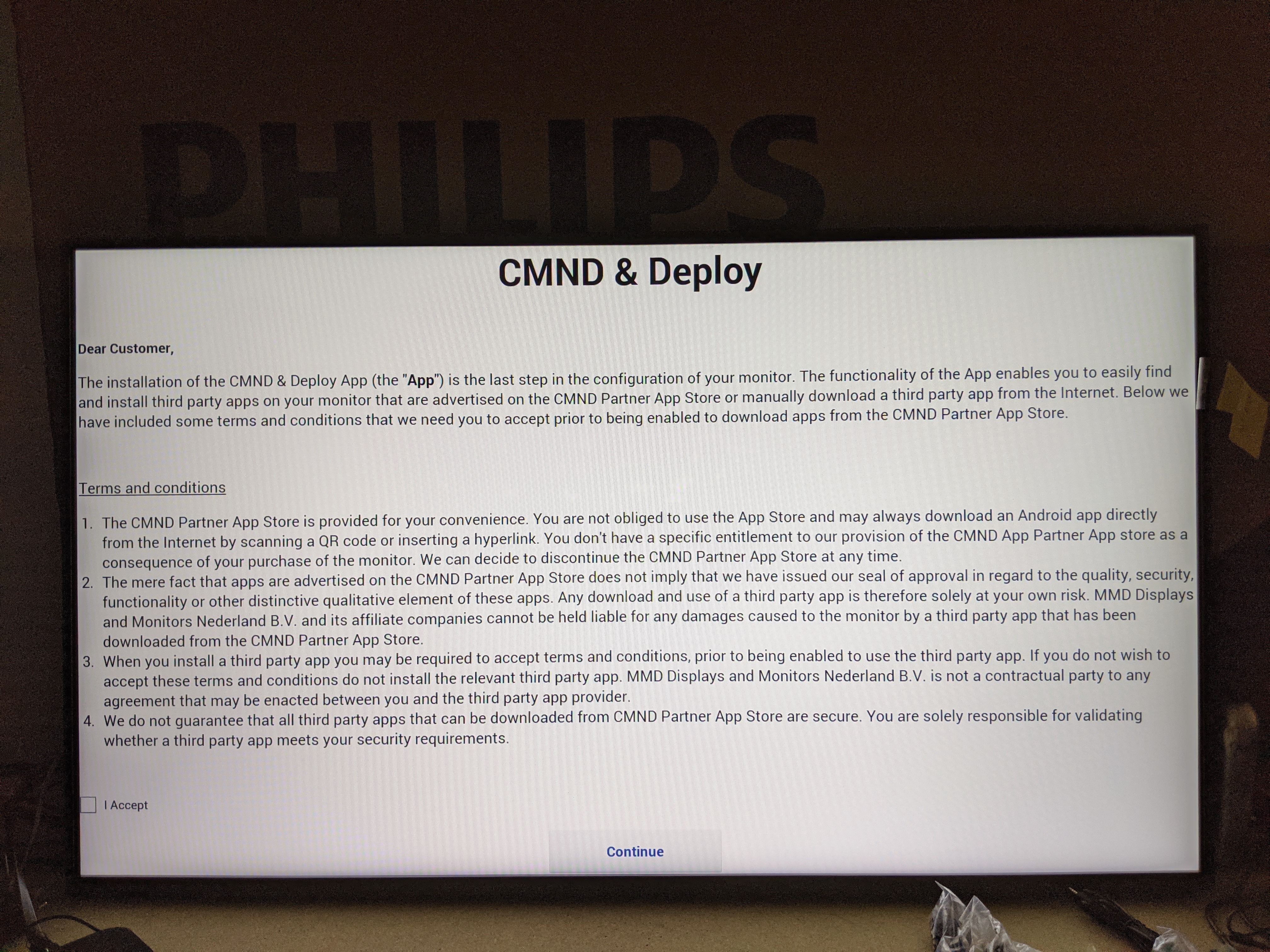

You'll see this screen now - ignore


Check To Confirm The Software Version match the Clone's Software version

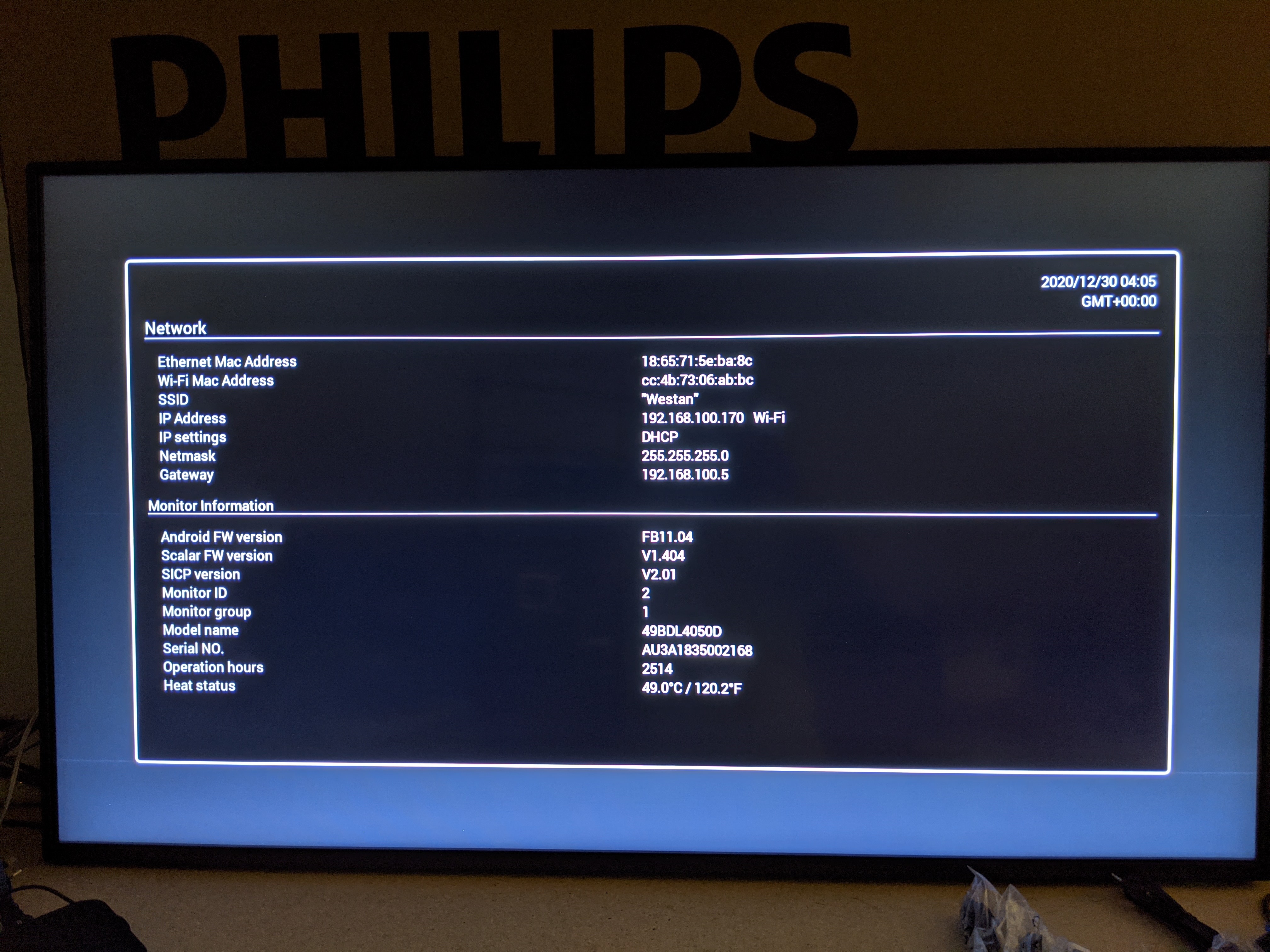

Press remote "Info,7,7" to bring the Info page

Check if the Android FW version is FB11.04
No -  Update the Software first by following this article https://support.westan.com.au/portal/en-gb/kb/articles/xxbdl4150d-himalaya-2-0-android-sw-upgrade-with-usb
         After the Software update has been done, you can continue to the next step
Yes -  continue to the next step

Continue the rest of Fusion Quick Install From Android Clone File Steps

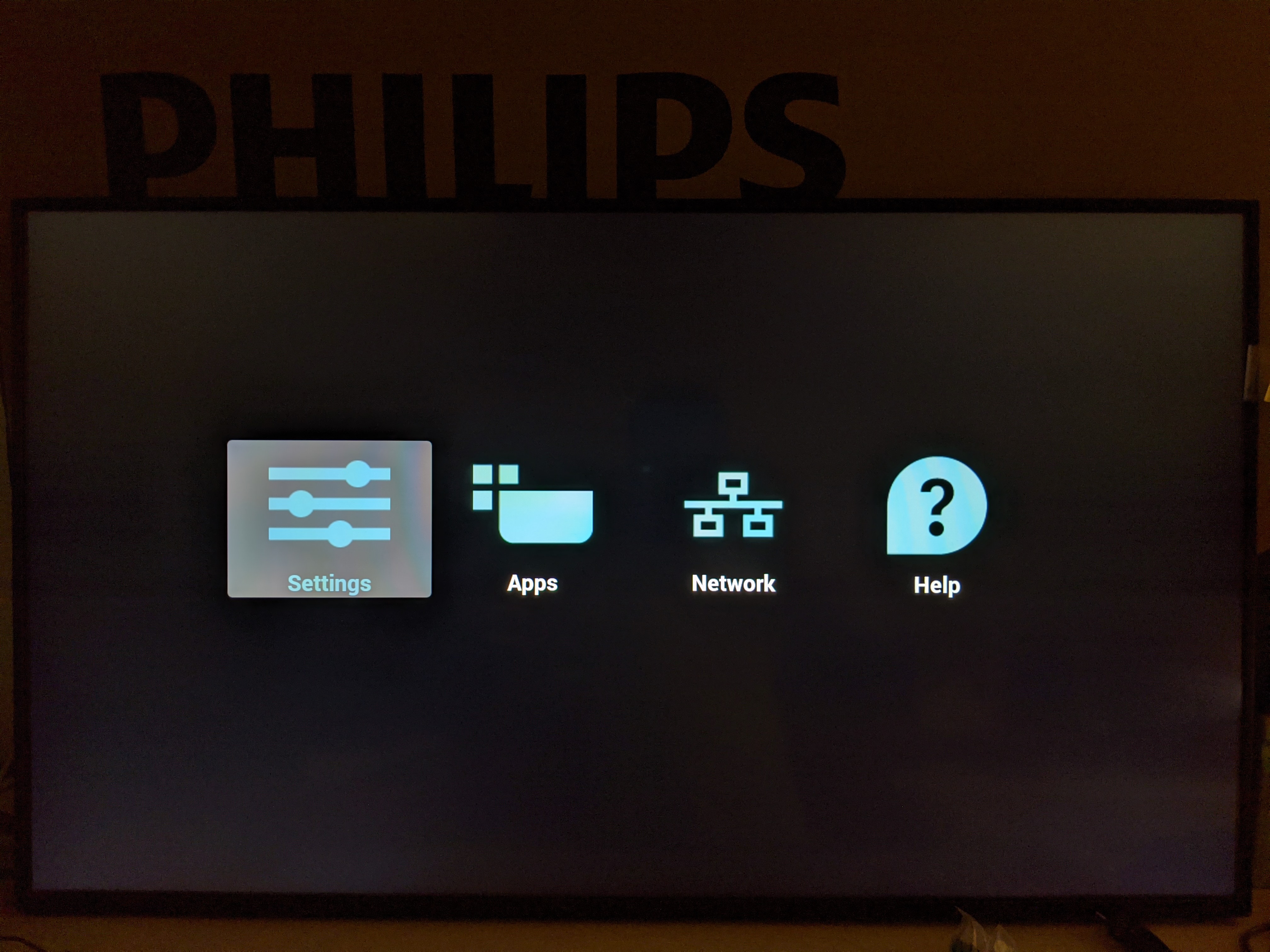

Press remote "Home,1,8,8,8" to go into Android Menu
Choose Settings

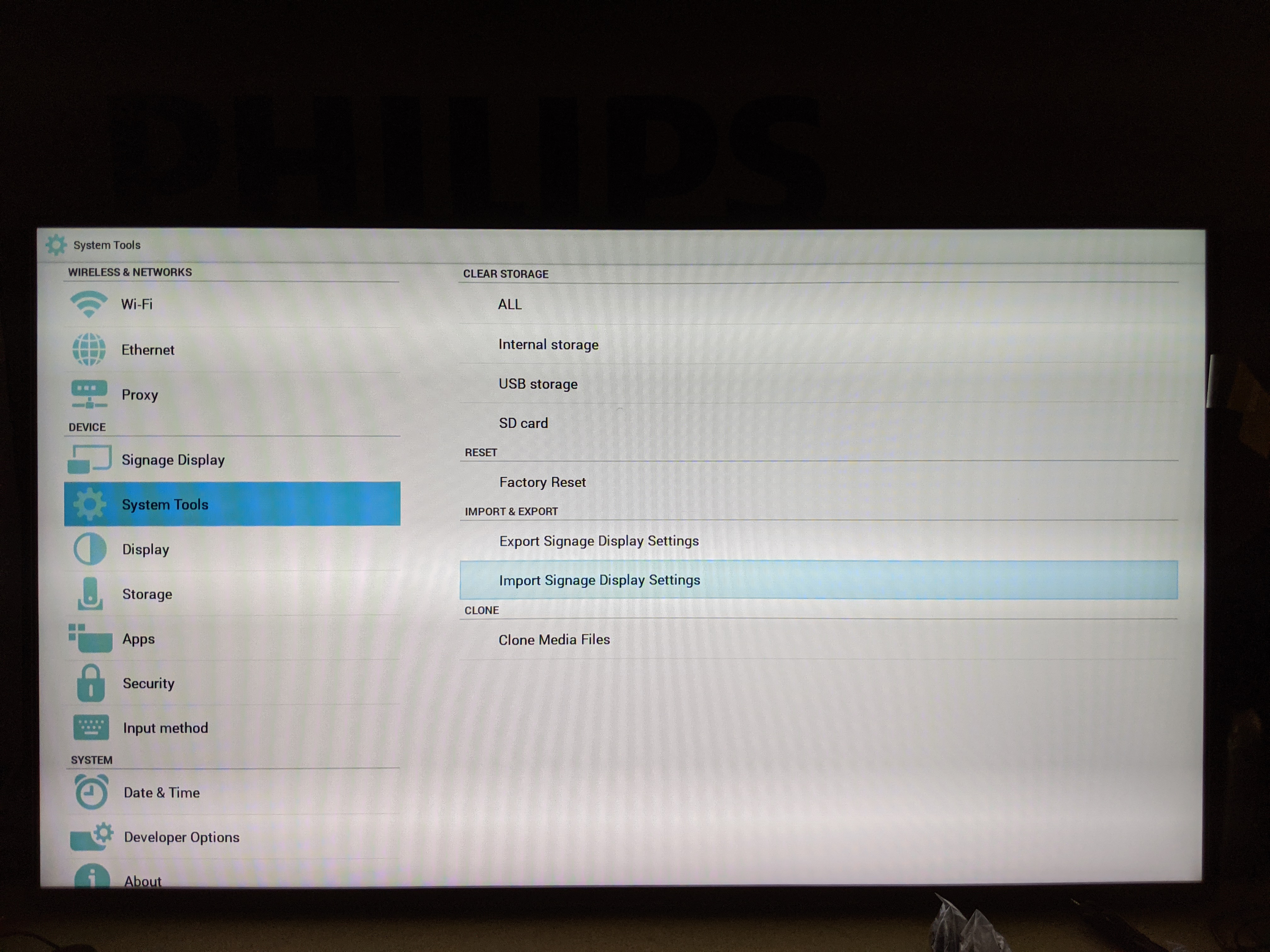

Choose System Tools -> Import  Signage Display Settings


Select Storage - select /mnt/usb_storage/philips

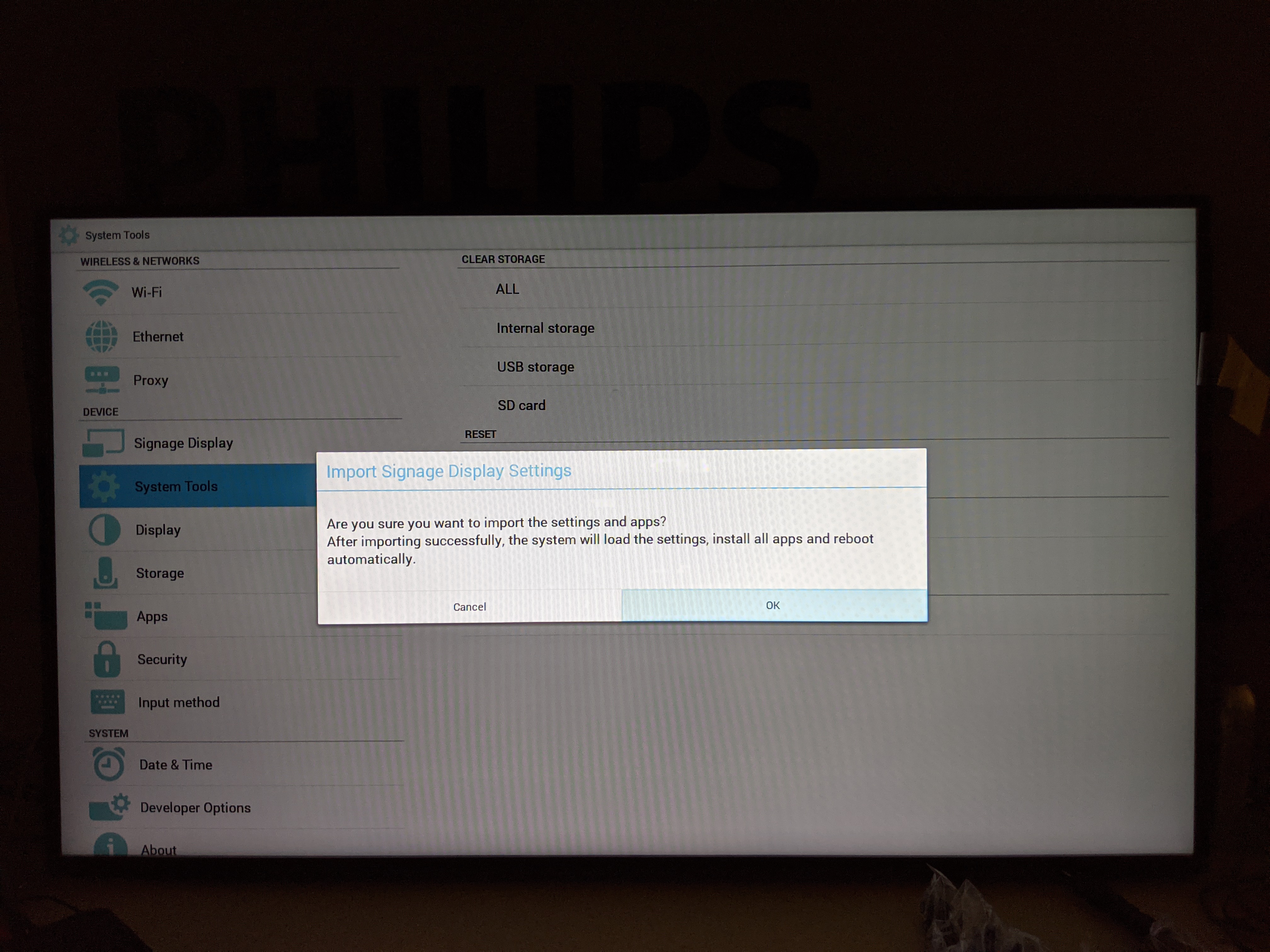

Import Signage Display Settings -> OK


Screen will begin importing clone file and reboot showing this on the screen


Configure the Scaler menu

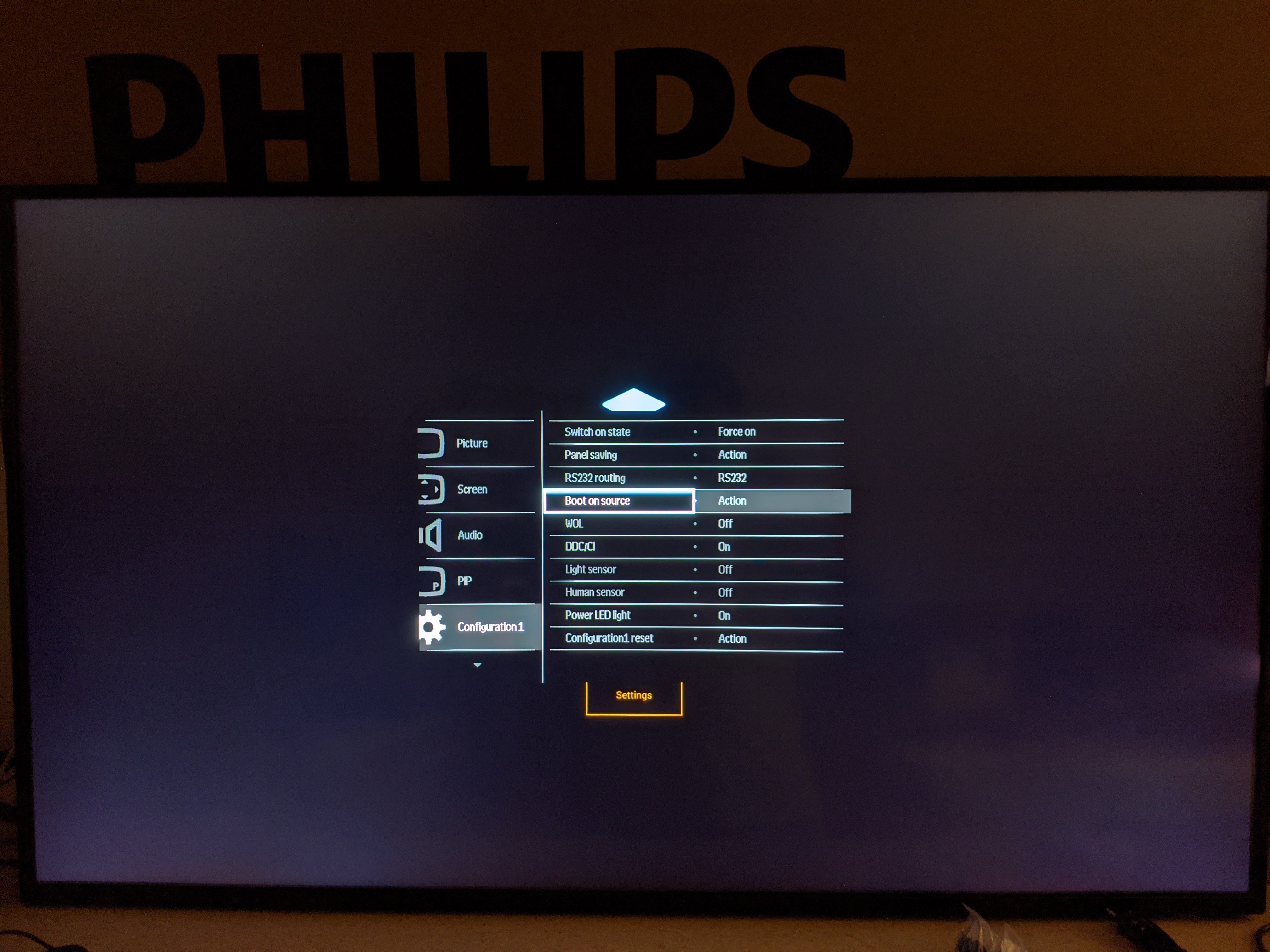

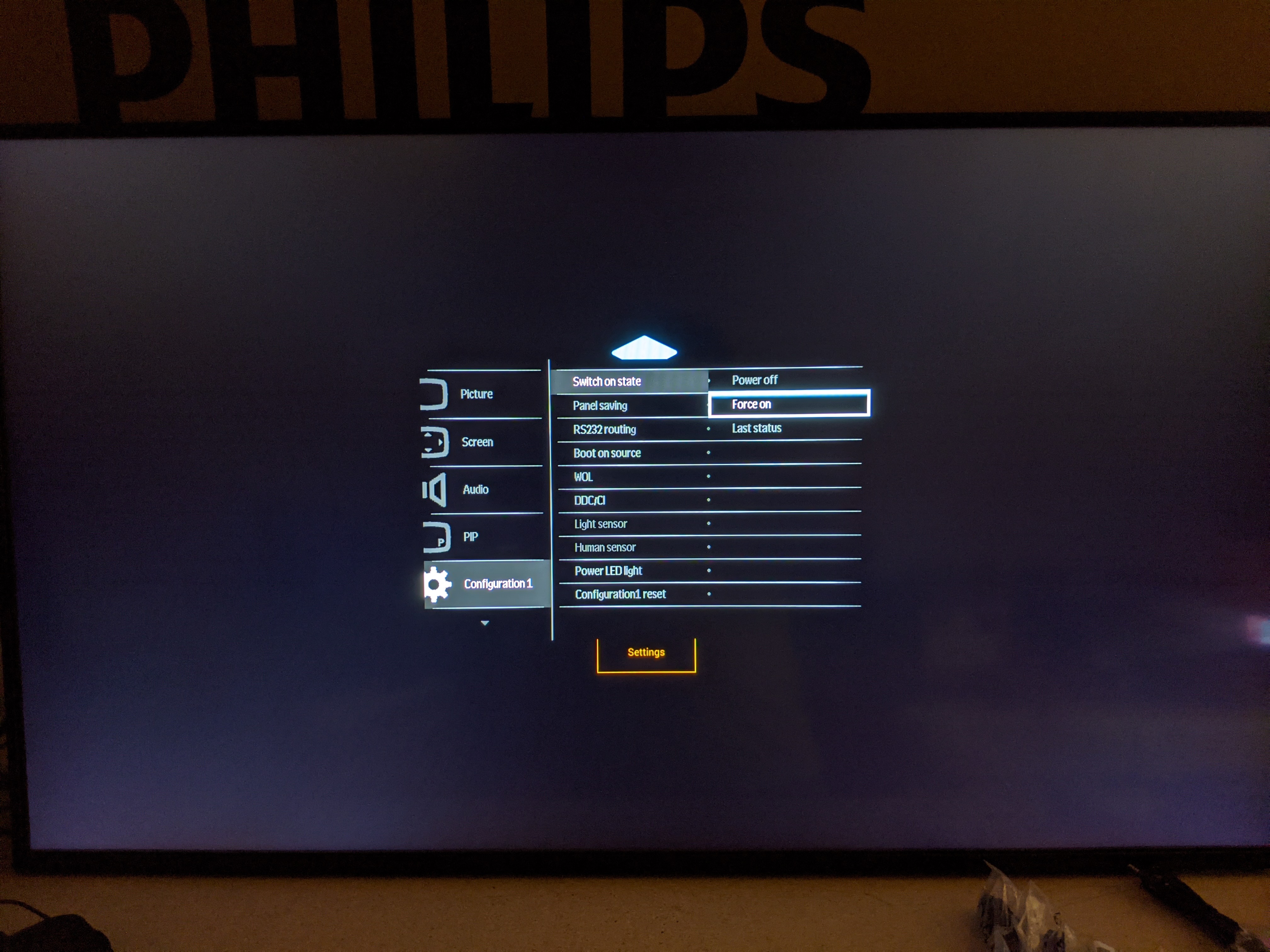

Set Home-> Configuration 1->Switch on state = Force On

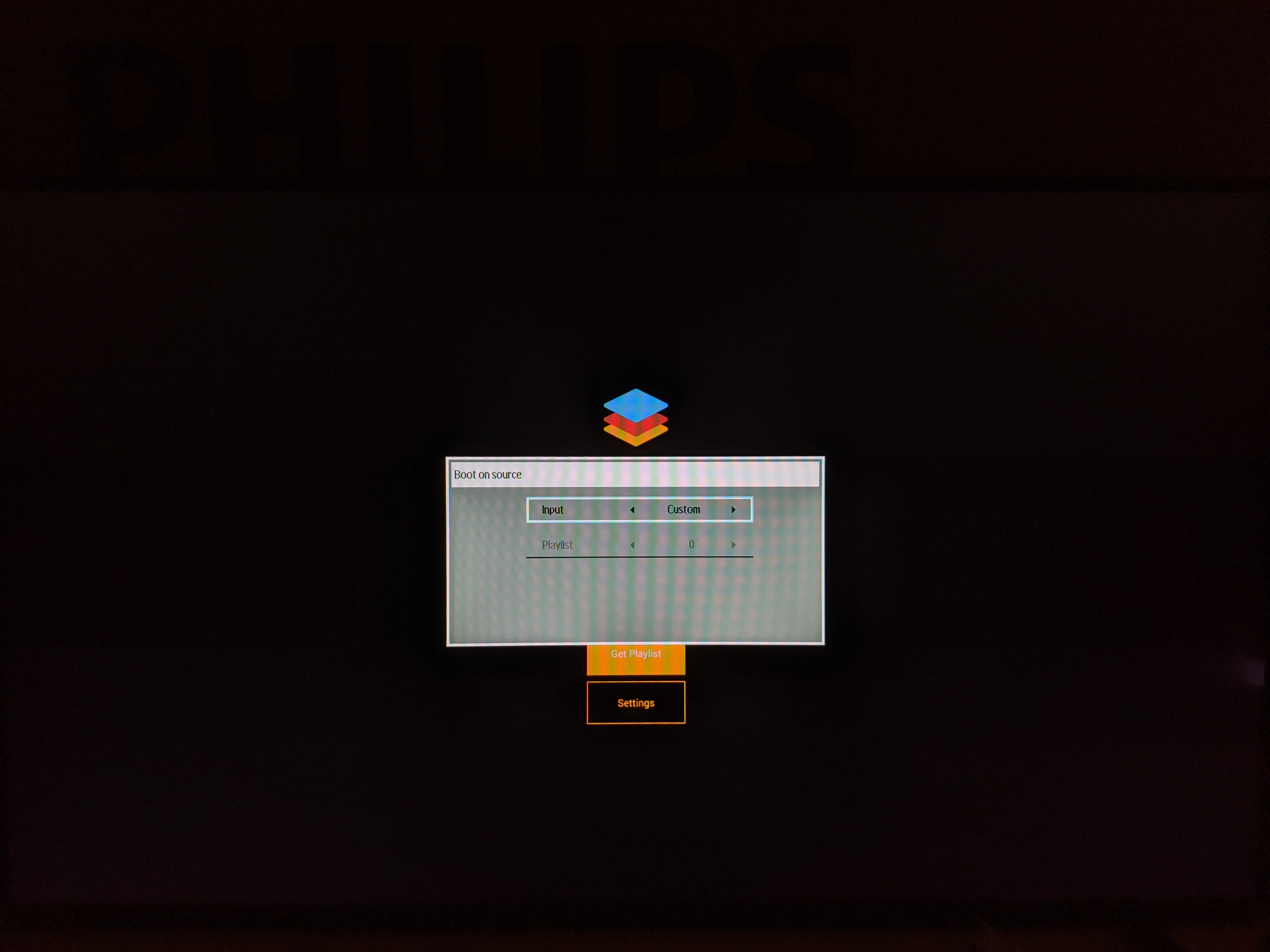

Set Home->Configuration 1->Boot on source = Custom

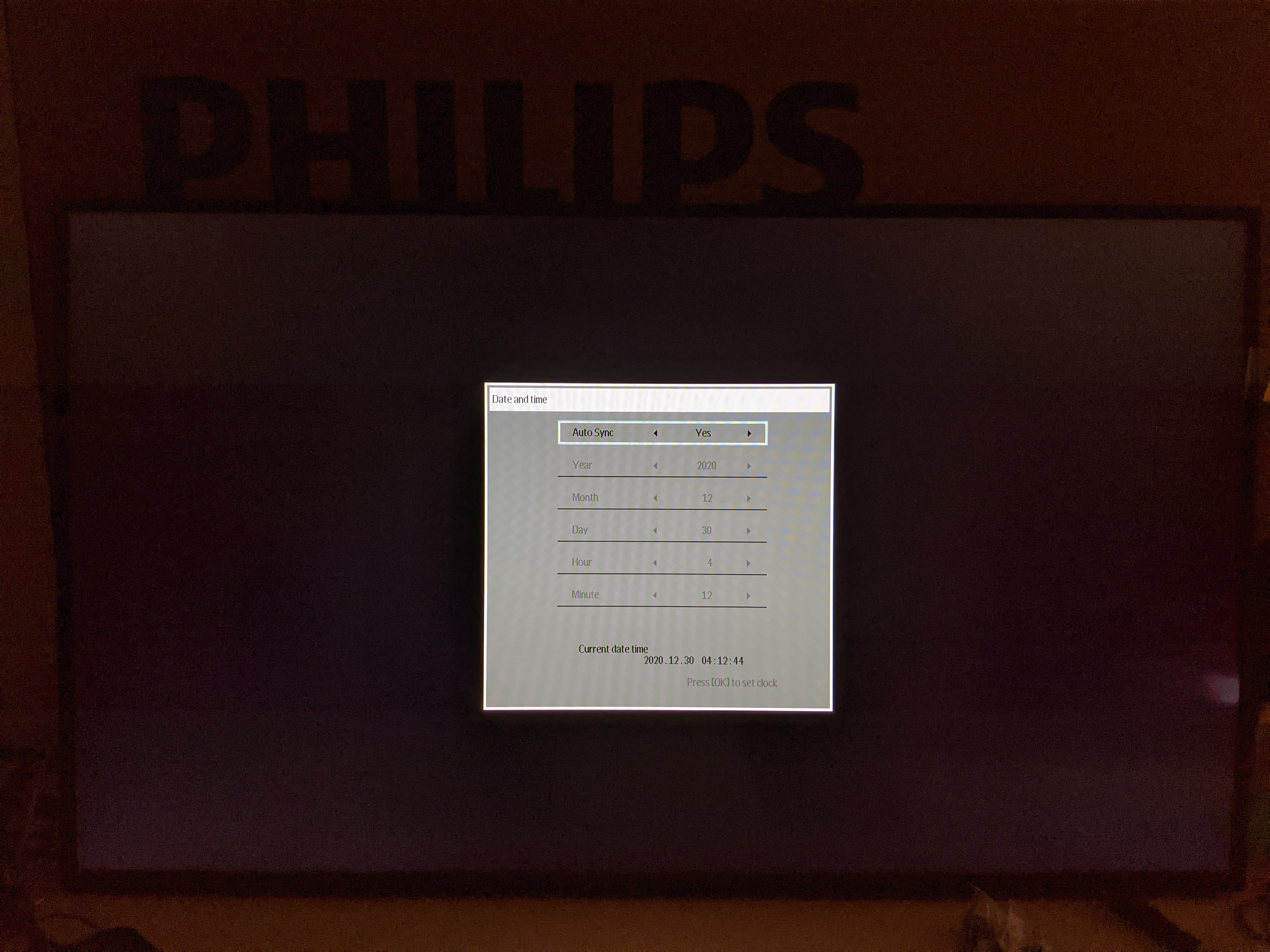

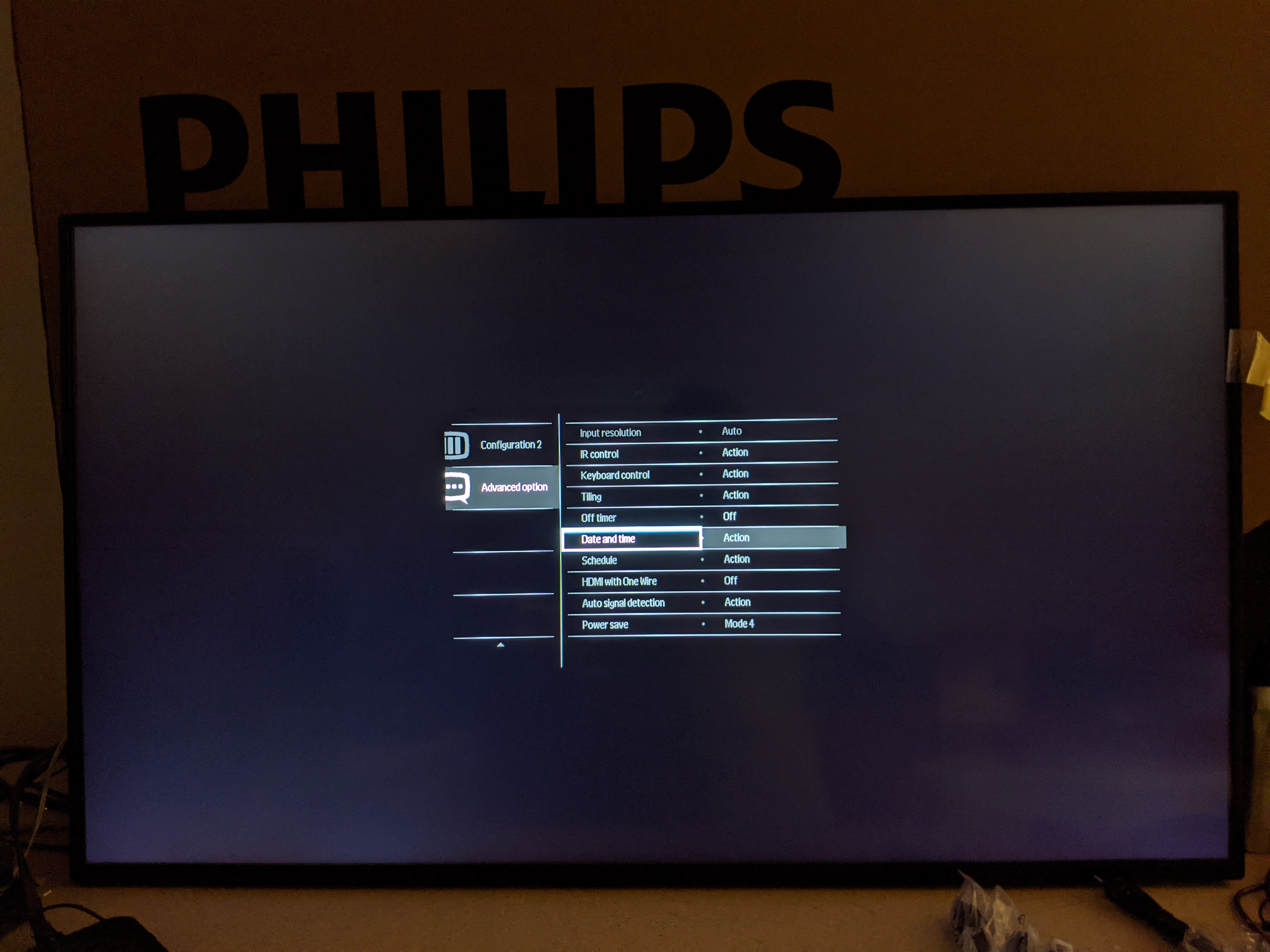

Set Home->Advanced Option->Date and Time - Auto Sync = Yes

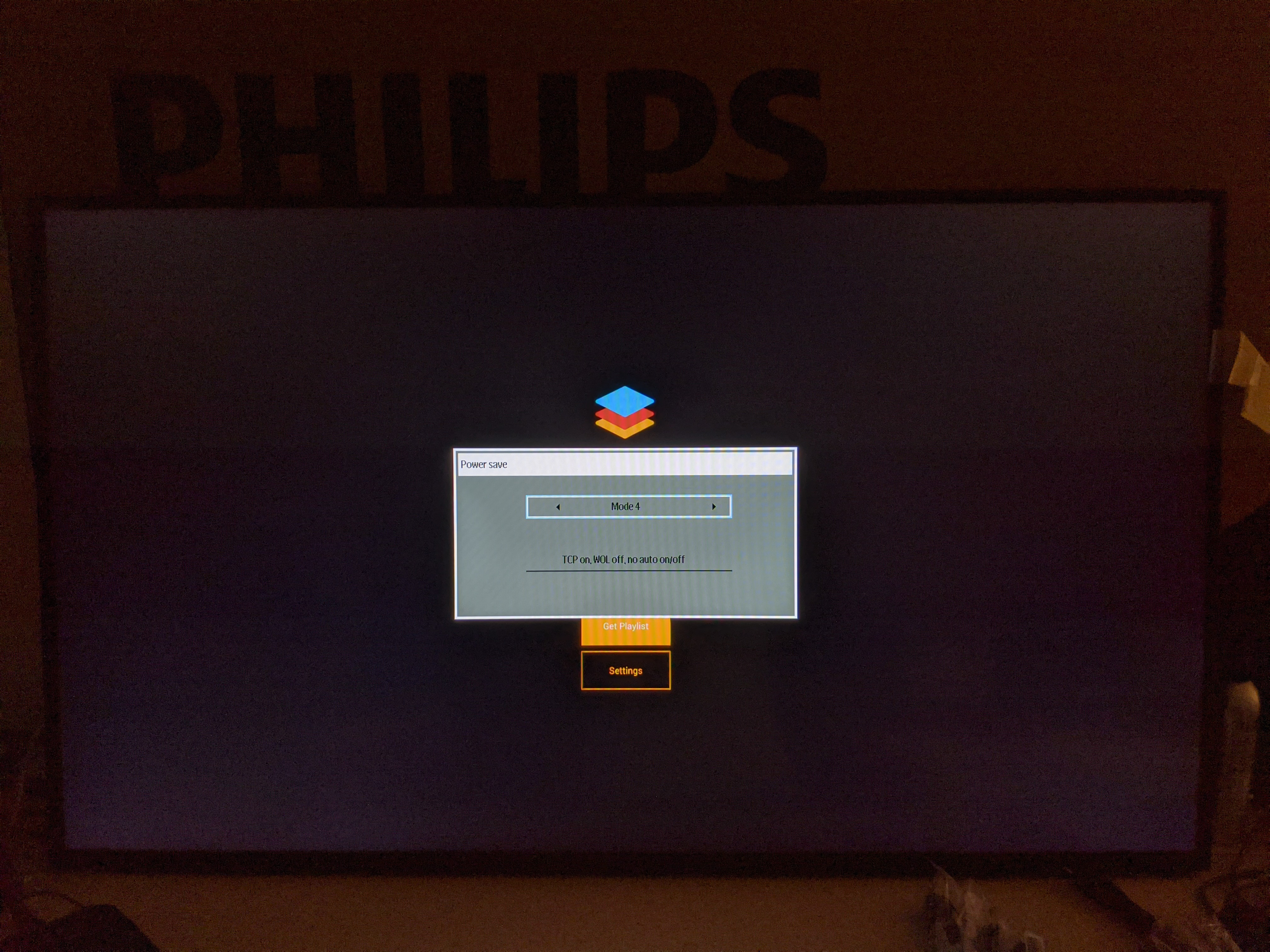

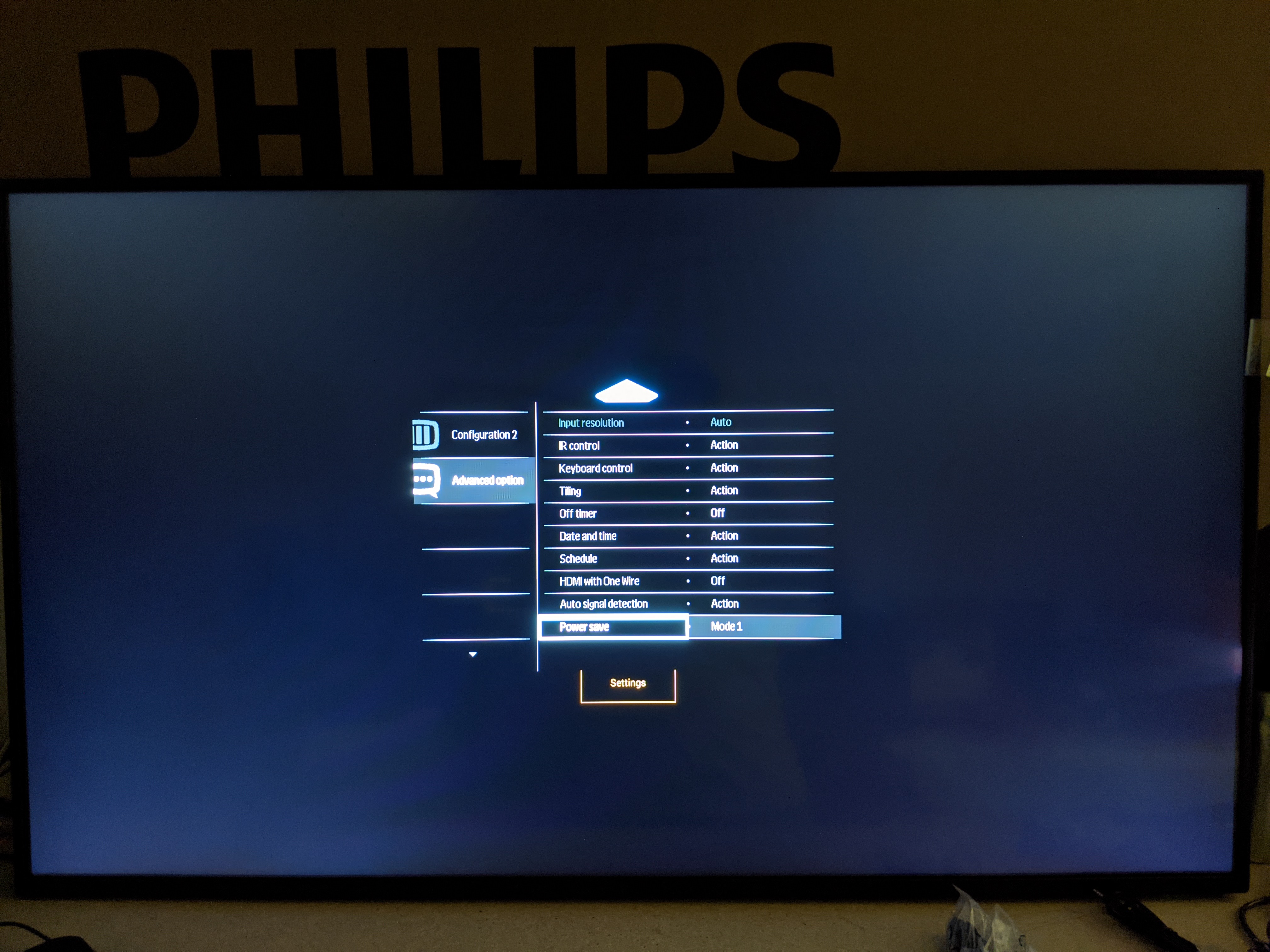

Set Home->Advanced Option->Power Save - Mode 4



Pairing Fusion Signage Screen

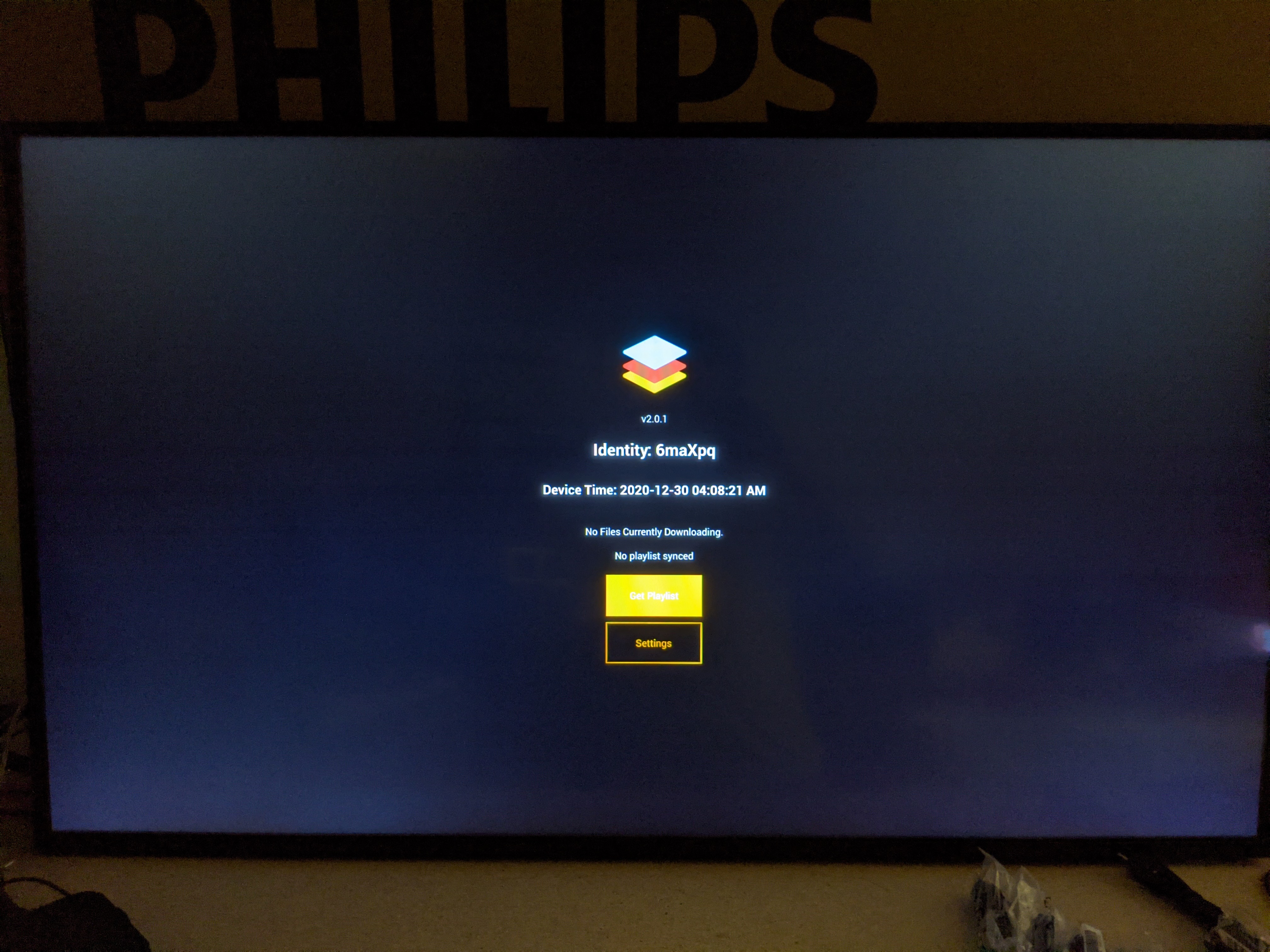

When you run Fusion Signage app that hasn't been paired with an account, you'll see the following screen with the unique 'Identity' required to pair the screen.

If the Identity value is blank, that means that Fusion Signage App can't reach the cloud server. Please confirm that your network connection is working and can access the internet.


Log into your Fusion Signage account

If you don't know your Fusion Signage account, please contact Westan technical team on +61 3 9541 8888 or drop us an email at support@westan.com.au

Open http://http://app.fusionsignage.com.au/ and login to your account


Click Screens


Add Screen to the account

Click Add Screen (Top Right Corner)

Key In the Identifier from the screen and click Add Screens


OPTIONAL 1 - TeamViewer


Press Home 1888  to go to Android Menu

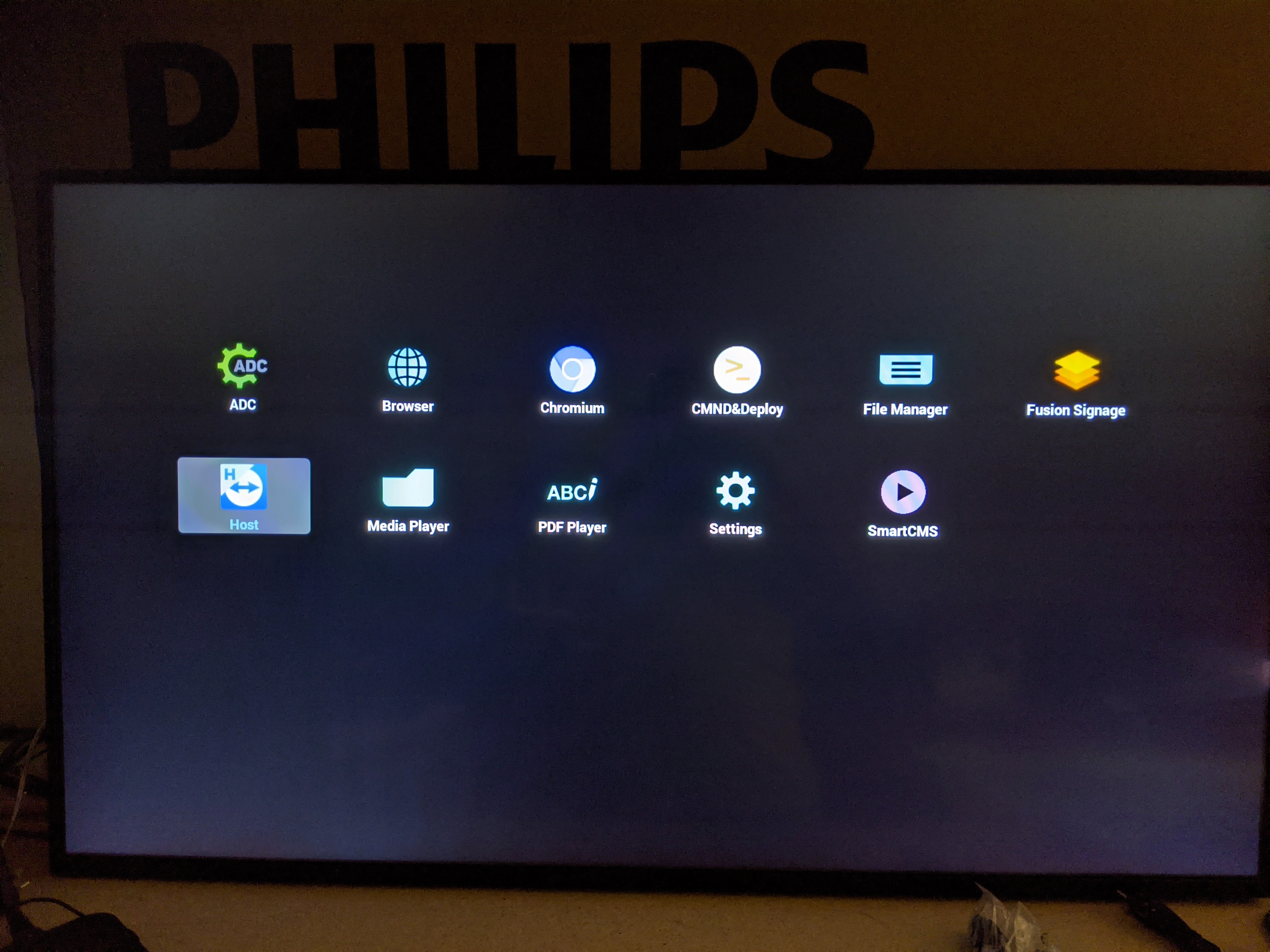

Go to Apps

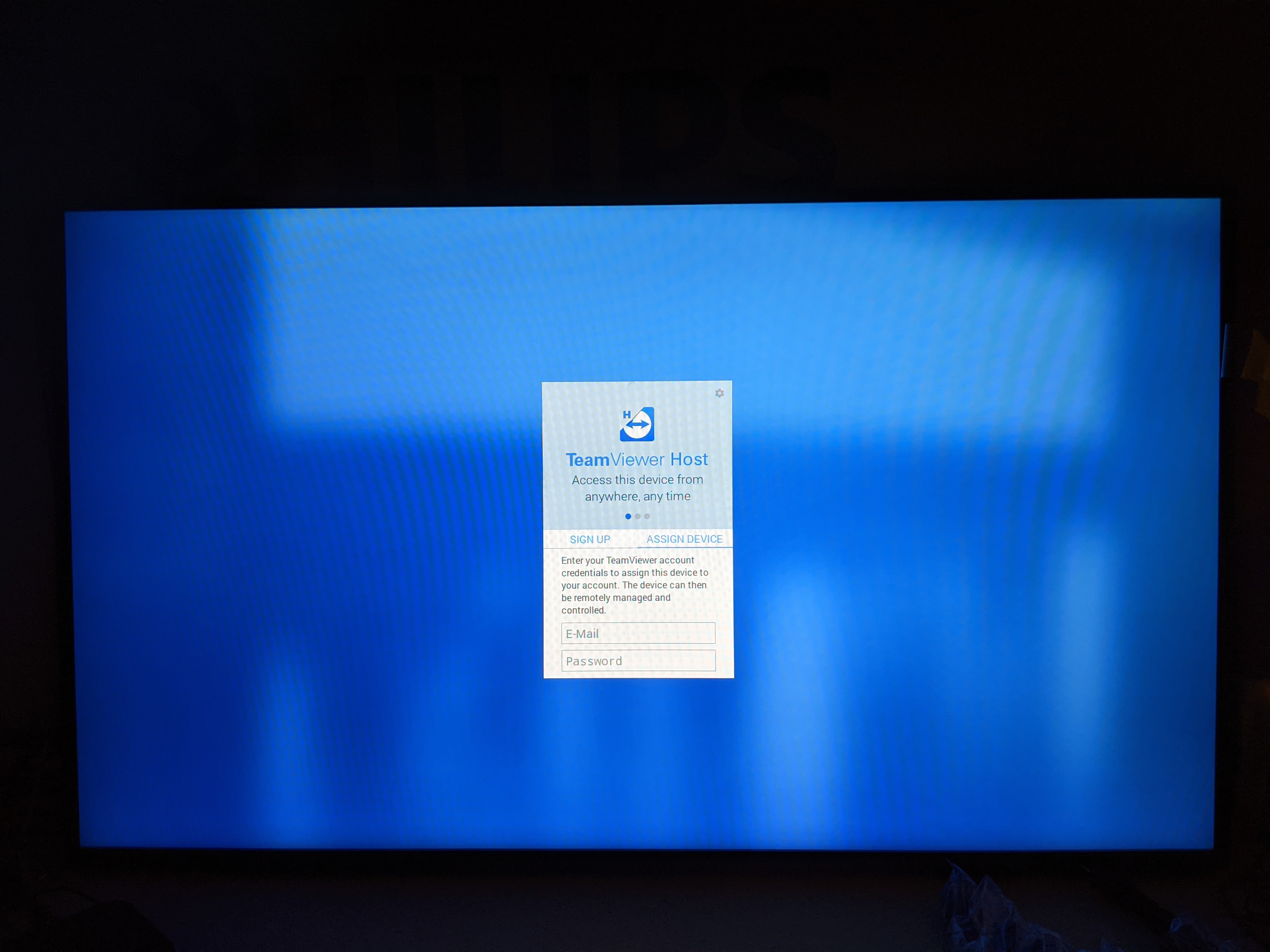

Run Host

Key In email and password given
