xxBDL4051D (Dragon 1.6) - Playing content from external Video source (HDMI/DVI/DisplayPort)
Portrait Mounting
This display can be installed in portrait position.
1. If the table stand is attached, remove it first.

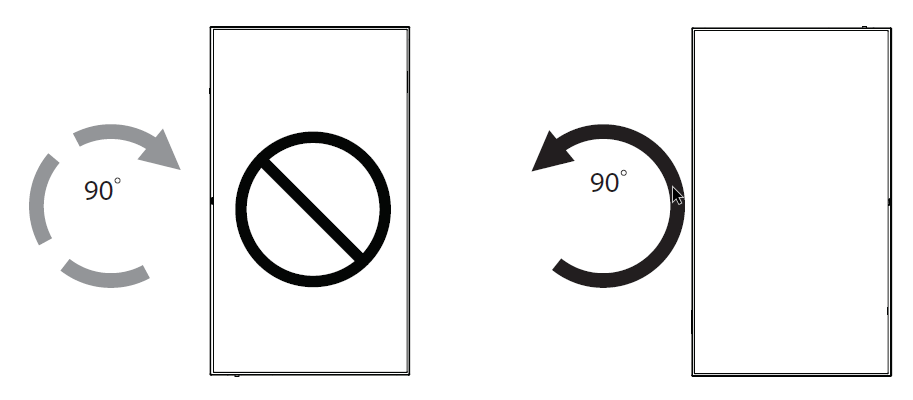

2. Rotate the display counter-clockwise by 90°. The “ ” logo should be on the RIGHT side when facing the display.
3. Set the following setting so that the Menu is oriented correctly (Home->Configuration 2->OSD Rotation->Portrait)
Updating Screen's Software
Setting the Screen Scaler Settings
Home->Configuration 1->Boot on source->Action
Set Input = DVI/HDMI/DisplayPort
Playlist = 1 (or whichever playlist you prefer)
Home-> Configuration 1-> Switch On State = Forced On
Home-> Advanced Configuration -> Power Save = Mode 3
