BDL3117P - SDM-L Installing App

BDL3117P - SDM-L Installing App


Alert

SDM-L can't be controlled using Philips remote control.

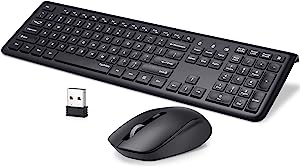

To control it you need to connect a USB Keyboard and Mouse


Preparation

Download the apk and copy it to the root directory of a USB Drive formatted with FAT32 Format

BDL3117P - connect power

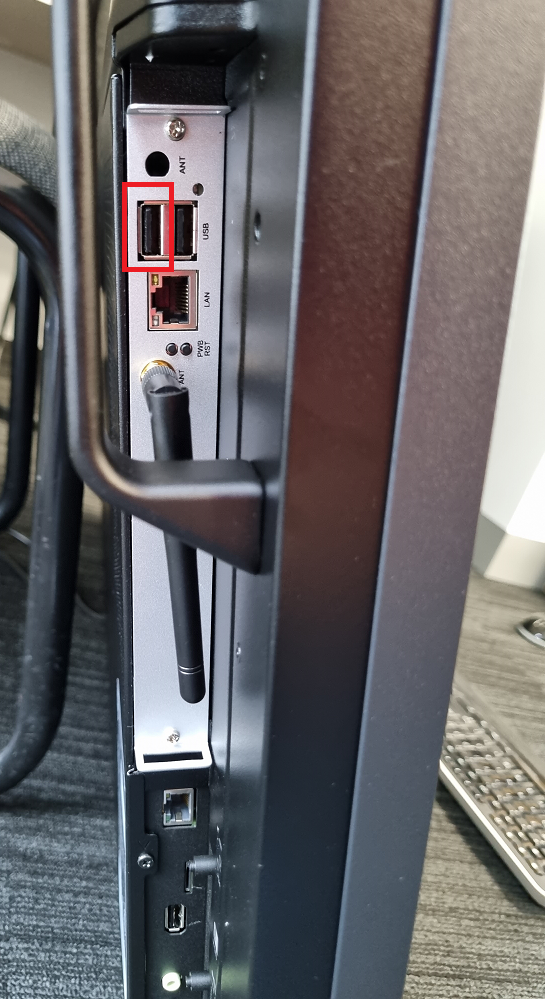

SDM-L inside the BDL3117P
- connect to ethernet cable
- insert USB for keyboard and mouse
- insert the USB Drive prepared above

Installation

Insert the USB to the SDM-L

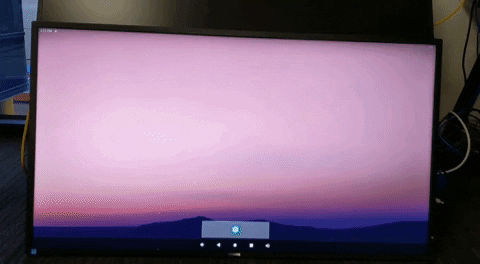

Click-Hold and Swipe Up to Show Installed Android Apps


Click "Explorer"


Find the apk and click it

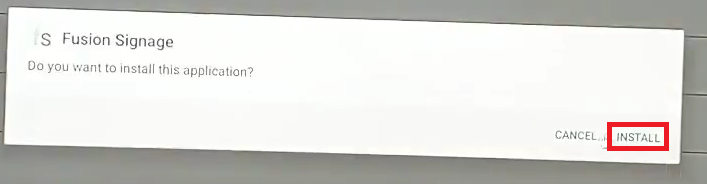

Choose "install"


Once installed
Swipe down to bring the Cog "Setting" symbol
Go to "Settings"->Apps->Choose your app
Make your app to be the home screen app

Ensure that Date&Time Timezone is correctly set

Seting Up The Screen


Press the Home button on the remote to bring up the screen menu
Configuration 1
 Switch on State = Power On
 Panel Saving->Pixel Shift = auto
 Boot on source = SDM

Configuration 2
 HDMI = EDID 1.4

Options
 Power save = Mode 1
 SDM Setting = Auto
