BFL2114 - How to change source to app using SICP over IP

BFL2114 - How to change source to app using SICP over IP

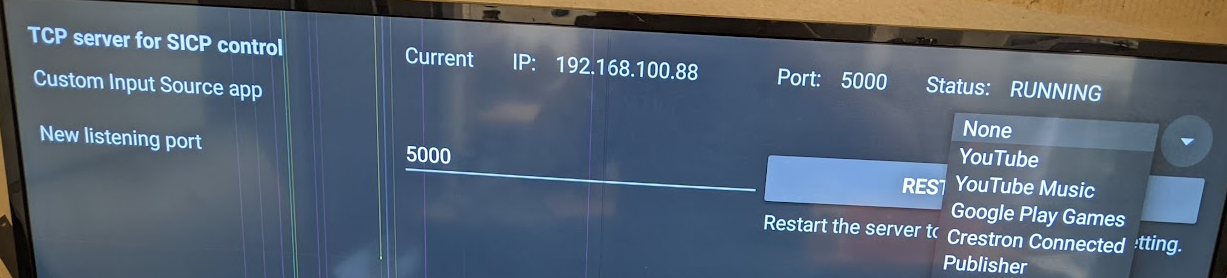

Setting Up Custom Input Source App


Go into professional menu by pressing mute, left, right, up, down, ok
Navigate to Advanced->Select TV control app->SICP Control
There was a special app created for installer to be able to specify the custom input source app.

If the option is not there, that means, it needs to be installed

Installing the patch to enable "Custom input source app" option


The easiest way to install the app is to clone in from this BFL with Fusion 2.3.6. app installed
Procedure to clone in is in this link below

Once it's been installed, you should see the option as per the previous instruction above.

Work-Around:


Alternatively if the above is too hard, you can also do this.
Go to Prof Menu
Set Switch On Setting->Feature Settings->Switch On Feature = Apps
Set Switch On Setting->Feature Settings-> Switch On Feature = Apps
Set Switch On Setting->Feature Settings-> Apps = Your App

Turn TV Off 06 00 00 18 01 1F
then
Turn TV back On 06 00 00 18 02 1C

Office Use Only
#11950
